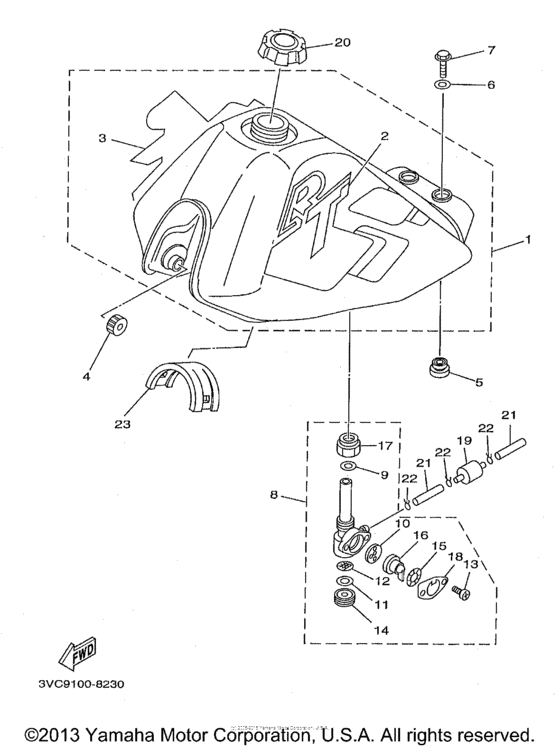

Fuel tank Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F4100-70-00
Fuel Tank Assembly
for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
3VC-F4100-70-00 |
— | ||
|
2
|
2
3VC-F4244-70-00 Graphic, Fuel Tank 1 |
3VC-F4244-70-00 |
US $37.96 |
||
|
3
|
3
3VC-F4245-70-00 Graphic, Fuel Tank 2 |
3VC-F4245-70-00 |
US $35.48 |
||
|
4
|
4
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
5
|
5
904-80222-31-00
Grommet
|
904-80222-31-00 |
— | ||
|
6
|
6
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
7
|
7
975-02064-12-09 Bolt, With Washer |
975-02064-12-09 |
US $2.52 |
||
| replacement | |||||
|
7
|
7
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
8
|
8
3VC-F4500-00-00
Fuel Cock Assembly 1
|
3VC-F4500-00-00 |
— | ||
|
9
|
9
3VC-F4532-01-00
Gasket
|
3VC-F4532-01-00 |
— | ||
|
10
|
10
2MW-F4523-00-00 Valve |
2MW-F4523-00-00 |
US $28.48 |
||
|
11
|
11
132-24522-00-00 Gasket |
132-24522-00-00 |
from US $17.71 |
||
| replacement | |||||
|
11
|
11
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
12
|
12
434-24576-00-00
Washer
|
434-24576-00-00 |
— | ||
|
13
|
13
985-01030-06-09 Screw, Pan Head |
985-01030-06-09 |
US $5.29 |
||
| replacement | |||||
|
13
|
13
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
14
|
14
434-24521-00-00
Cup, Filter
|
434-24521-00-00 |
— | ||
|
15
|
15
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
16
|
16
447-24524-00-00
Lever, Cock
|
447-24524-00-00 |
— | ||
|
17
|
17
2TW-F4531-00-00
Nut
|
2TW-F4531-00-00 |
— | ||
|
18
|
18
447-24525-00-00
Plate, Lever Fitting
|
447-24525-00-00 |
— | ||
|
19
|
19
4AN-F4501-00-00 Filter, Fuel |
4AN-F4501-00-00 |
US $15.84 |
||
| replacement | |||||
|
19
|
19
4AN-F4501-10-00 Fuel Filter |
4AN-F4501-10-00 |
US $15.84 |
||
|
20
|
20
5Y1-24610-01-00 Cap Assembly |
5Y1-24610-01-00 |
US $45.52 |
||
|
21
|
21
904-4509W-02-09
Hose
|
904-4509W-02-09 |
— | ||
| replacement | |||||
|
21
|
21
904-4509W-02-00
Hose
|
904-4509W-02-00 |
— | ||
|
22
|
22
904-67088-00-09
Clip
|
904-67088-00-09 |
— | ||
| replacement | |||||
|
22
|
22
904-6709W-02-00
Clip
|
904-6709W-02-00 |
— | ||
|
23
|
23
2A6-24182-00-00
Damper, Locating 2
|
2A6-24182-00-00 |
— | ||
| replacement | |||||
|
23
|
23
5L9-F4182-00-00
Damper, Locating 2
|
5L9-F4182-00-00 |
— | ||
