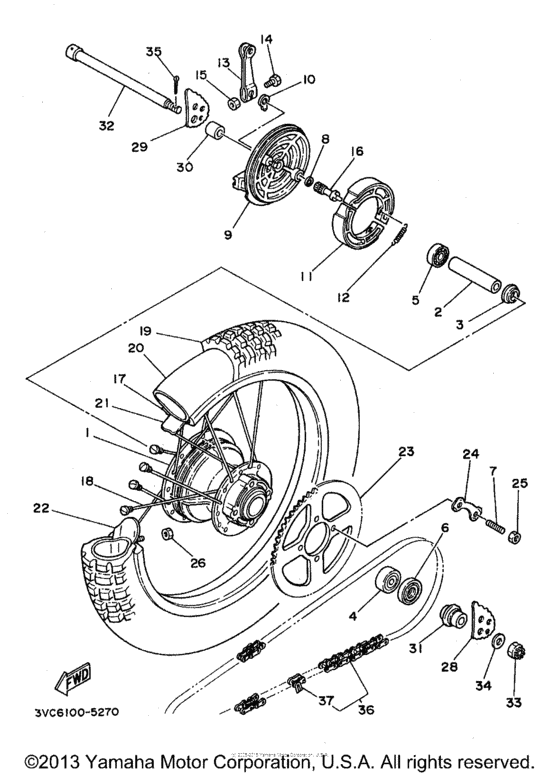

Rear wheel Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-25311-00-98 Hub, Rear |
10V-25311-00-98 |
from US $315.68 |
||
|
2
|
2
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
6
|
6
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $6.62 |
||
|
7
|
7
90116-10390-00 Bolt, Stud |
90116-10390-00 |
from US $4.01 |
||
|
8
|
8
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
9
|
9
10V-25321-00-98 Plate, Brake Shoe |
10V-25321-00-98 |
from US $161.65 |
||
|
10
|
10
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
10
|
10
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
11
|
11
3KG-W2536-00-00 Brake Shoe Kit |
3KG-W2536-00-00 |
from US $25.94 |
||
| replacement | |||||
|
11
|
11
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
12
|
12
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
13
|
13
1E2-25155-00-00 Lever, Camshaft 1 |
1E2-25155-00-00 |
from US $20.40 |
||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
16
|
16
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
17
|
17
944-21181-83-00 Rim (2.15-18)2.15-18 |
944-21181-83-00 |
US $247.70 |
||
| replacement | |||||
|
17
|
17
944-21188-54-00 Rim (2.15-18)2.15-18 |
944-21188-54-00 |
US $206.30 |
||
|
18
|
18
10V-25304-01-00 Spoke Set, Rear |
10V-25304-01-00 |
from US $65.63 |
||
|
19
|
19
941-10188-F3-00 Tire (100/100-18 59P Mt21 Tt)100/100-18 59P MT21 TT |
941-10188-F3-00 |
US $236.59 |
||
|
20
|
20
942-11188-50-00 Tube,100/100 1818 |
942-11188-50-00 |
US $88.81 |
||
| replacements | |||||
|
20
|
20
94211-18W49-00 TUBE,100/100 1818 |
94211-18W49-00 |
US $88.81 |
||
|
20
|
20
94241-18153-00 Tube (4.10-18)18 |
94241-18153-00 |
US $114.34 |
||
|
21
|
21
94325-18081-00 Band, Rim2.50-18 |
94325-18081-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
22
|
22
214-25394-10-00
Spacer, Bead
|
214-25394-10-00 |
— | ||
| replacement | |||||
|
22
|
22
1T2-25394-00-00 Spacer, Bead |
1T2-25394-00-00 |
from US $50.02 |
||
|
23
|
23
53V-25451-50-00 Sprocket, Driven (51T)51T |
53V-25451-50-00 |
US $50.24 |
||
|
24
|
24
10V-25412-00-00 Washer |
10V-25412-00-00 |
from US $6.38 |
||
|
25
|
25
90170-10219-00 Nut |
90170-10219-00 |
from US $1.35 |
||
| replacement | |||||
|
25
|
25
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
26
|
26
988-02082-00-09 Nut |
988-02082-00-09 |
US $2.47 |
||
| replacements | |||||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
28
|
28
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
29
|
29
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
30
|
30
90387-15115-00
Collar
|
90387-15115-00 |
— | ||
|
31
|
31
23K-F5383-00-00
Collar, Wheel
|
23K-F5383-00-00 |
— | ||
|
32
|
32
2A6-25381-00-00 Axle, Wheel |
2A6-25381-00-00 |
from US $53.75 |
||
| replacement | |||||
|
32
|
32
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
|
5X3-25381-00-00 |
— | ||
|
33
|
33
901-71140-06-09 Nut, Castle |
901-71140-06-09 |
US $8.66 |
||
| replacement | |||||
|
33
|
33
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
34
|
34
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
35
|
35
91401-30028-00 Pin, Cotter |
91401-30028-00 |
from US $1.13 |
||
| replacement | |||||
|
35
|
35
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
36
|
36
94580-88122-00 Chain |
94580-88122-00 |
from US $73.22 |
||
| replacements | |||||
|
36
|
36
9Y5-80881-21-00 Chain (Did 428Hg-122L) |
9Y5-80881-21-00 |
from US $73.22 |
||
|
36
|
36
9Y5-82511-21-00 CHAIN |
9Y5-82511-21-00 |
from US $73.22 |
||
|
37
|
37
94680-88001-00 Joint,chain |
94680-88001-00 |
from US $3.83 |
||
| replacements | |||||
|
37
|
37
94682-09001-00 Joint, Chain (Did 428Hg) |
94682-09001-00 |
from US $3.23 |
||
|
37
|
37
94682-51001-00 Joint, Chain |
94682-51001-00 |
from US $3.83 |
||
