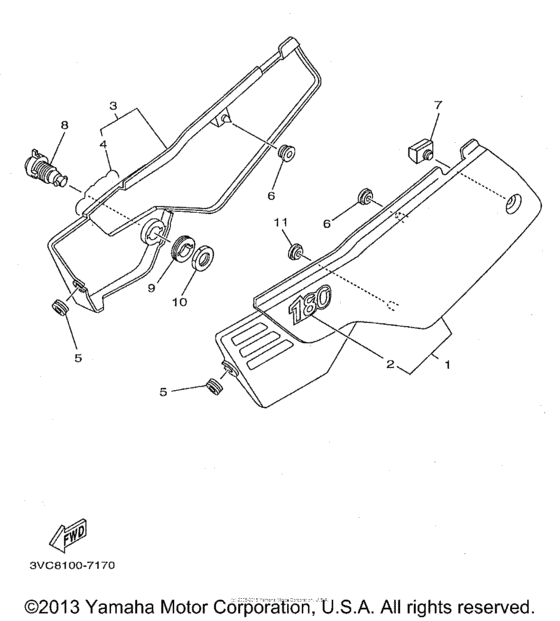

Side cover Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F1710-50-00 Side Cover Assembly 1Use for Color PURPLISH WHITE SOLID 1 PWS1 / 0206 |
3VC-F1710-50-00 |
US $70.83 |
||
|
2
|
2
3VC-F1785-10-00
Emblem 5
|
3VC-F1785-10-00 |
— | ||
|
3
|
3
3VC-F1720-50-00
Side Cover Assembly 2
Use for Color PURPLISH WHITE SOLID 1 PWS1 / 0206 |
3VC-F1720-50-00 |
— | ||
| replacement | |||||
|
3
|
3
3VC-F1721-20-00
Side Cover 2
Use for Color PURPLISH WHITE SOLID 1 PWS1 / 0206 |
3VC-F1721-20-00 |
— | ||
|
4
|
4
3VC-F1785-10-00
Emblem 5
|
3VC-F1785-10-00 |
— | ||
|
5
|
5
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
6
|
6
904-80018-27-09 Grommet |
904-80018-27-09 |
US $2.23 |
||
| replacement | |||||
|
6
|
6
90480-01827-00
Grommet
|
90480-01827-00 |
— | ||
|
7
|
7
502-29472-00-00
Pad, Seat
|
502-29472-00-00 |
— | ||
|
8
|
8
3VC-F178K-00-00
Lock Assembly
|
3VC-F178K-00-00 |
— | ||
|
9
|
9
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
10
|
10
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
11
|
11
904-80131-97-09 Grommet |
904-80131-97-09 |
US $6.35 |
||
| replacement | |||||
|
11
|
11
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
