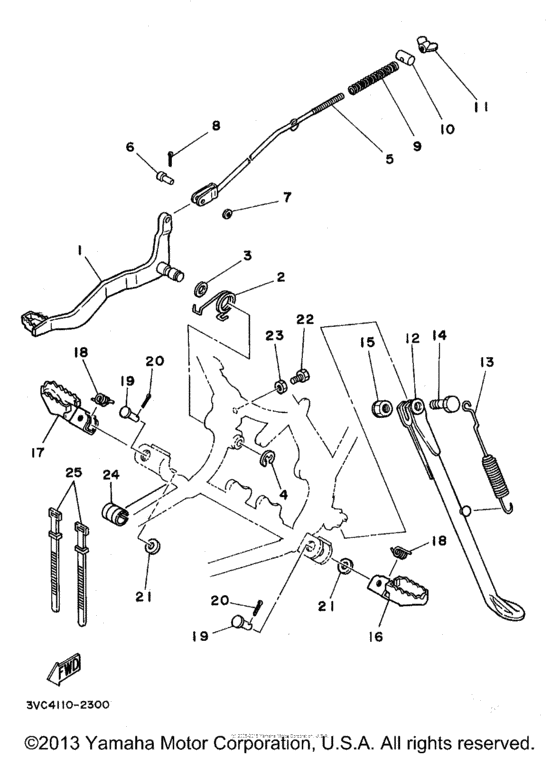

Stand - footrest Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-F7211-00-00
Pedal, Brake
|
5L9-F7211-00-00 |
— | ||
|
2
|
2
90508-32354-00 Spring, Torsion |
90508-32354-00 |
from US $4.68 |
||
|
3
|
3
90201-14212-00 Washer, Plate |
90201-14212-00 |
from US $2.55 |
||
|
4
|
4
934-3010W-02-09 Circlip |
934-3010W-02-09 |
US $6.35 |
||
| replacement | |||||
|
4
|
4
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
5
|
5
1W2-27231-00-00
Rod, Brake
|
1W2-27231-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5L9-F7231-01-00 Brake Rod |
5L9-F7231-01-00 |
US $16.78 |
||
|
6
|
6
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
7
|
7
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
8
|
8
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
8
|
8
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
9
|
9
905-0110W-00-09 Spring, Compression |
905-0110W-00-09 |
US $1.76 |
||
| replacement | |||||
|
9
|
9
905-0110W-00-00 Spring, Compression |
905-0110W-00-00 |
US $1.69 |
||
|
10
|
10
902-4912W-00-09 Pin |
902-4912W-00-09 |
US $6.35 |
||
| replacement | |||||
|
10
|
10
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
11
|
11
901-75060-13-09 Nut, Wing |
901-75060-13-09 |
US $10.21 |
||
| replacements | |||||
|
11
|
11
90175-06019-00 Nut, Wing |
90175-06019-00 |
from US $1.98 |
||
|
11
|
11
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
|
11
|
11
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
12
|
12
2TW-F7311-00-00
Stand, Side
|
2TW-F7311-00-00 |
— | ||
|
13
|
13
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
14
|
14
901-0910W-14-09 Bolt |
901-0910W-14-09 |
US $2.16 |
||
| replacement | |||||
|
14
|
14
901-0910W-14-00 Bolt |
901-0910W-14-00 |
US $2.54 |
||
|
15
|
15
901-8510W-03-09
Nut, Self-Locking
|
901-8510W-03-09 |
— | ||
|
16
|
16
4AN-F7411-00-00
Footrest 1
|
4AN-F7411-00-00 |
— | ||
|
17
|
17
4AN-F7421-00-00 Footrest 2 |
4AN-F7421-00-00 |
US $17.15 |
||
|
18
|
18
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
19
|
19
917-01080-39-09 Pin, Clevis |
917-01080-39-09 |
US $4.66 |
||
| replacement | |||||
|
19
|
19
917-01080-39-00 Pin, Clevis |
917-01080-39-00 |
from US $4.66 |
||
|
20
|
20
914-01250-12-09 Pin, Cotter |
914-01250-12-09 |
US $2.52 |
||
| replacement | |||||
|
20
|
20
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
21
|
21
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.34 |
||
|
22
|
22
973-02060-20-09 Bolt |
973-02060-20-09 |
US $5.29 |
||
| replacement | |||||
|
22
|
22
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
23
|
23
953-02066-00-09
Nut
|
953-02066-00-09 |
— | ||
|
24
|
24
2TW-F742A-00-00
Damper
|
2TW-F742A-00-00 |
— | ||
|
25
|
25
5L9-H3936-00-00
Band, Switch Cord
|
5L9-H3936-00-00 |
— | ||
