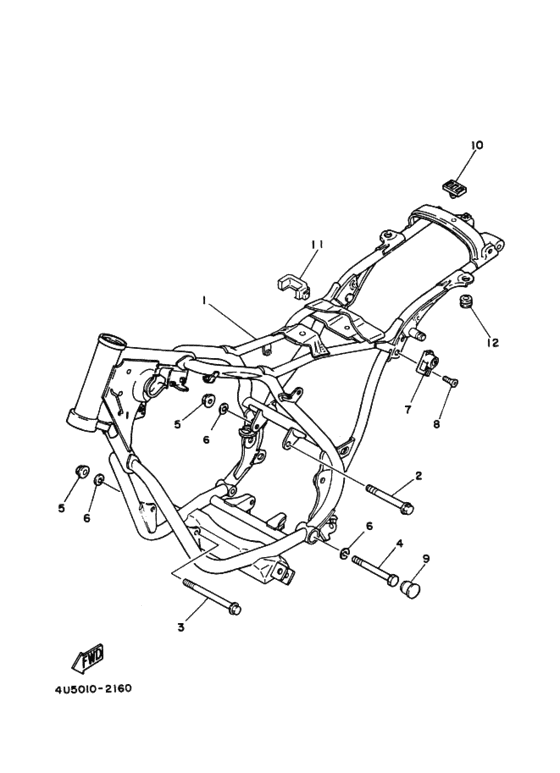

Frame Diagram Yamaha RX50
- Year
- 1982
- Colour
- New Ruby Red (NRR; 007J)
- Model code
- 4U50
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- RX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U5-21110-03-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
4U5-21110-03-33 |
— | ||
|
2
|
2
95821-08090-00 Bolt, Flange |
95821-08090-00 |
from US $2.25 |
||
| replacement | |||||
|
2
|
2
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
3
|
3
95821-08120-00 Bolt, Flange |
95821-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
3
|
3
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
4
|
4
90101-08502-00
Bolt
|
90101-08502-00 |
— | ||
|
5
|
5
95701-08100-00 Nut, With Washer |
95701-08100-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
1E6-21308-00-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
1E6-21308-00-00 |
from US $56.34 |
||
| replacement | |||||
|
7
|
7
5H0-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
5H0-21308-01-00 |
from US $59.13 |
||
|
8
|
8
92701-06018-00 Screw, Flat Head |
92701-06018-00 |
from US $2.39 |
||
| replacement | |||||
|
8
|
8
98707-06018-00 Screw, Flat |
98707-06018-00 |
from US $2.33 |
||
|
9
|
9
90338-24112-00 Plug, Special Shape |
90338-24112-00 |
from US $2.55 |
||
|
10
|
10
4H7-24723-00-00
Damper, Seat
ダンパ，シート; |
4H7-24723-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
ダンパ，シート; |
999-99999-99-00 |
— | ||
|
11
|
11
4U5-24723-00-00
Damper, Seat
ダンパ，シート; |
4U5-24723-00-00 |
— | ||
|
12
|
12
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
