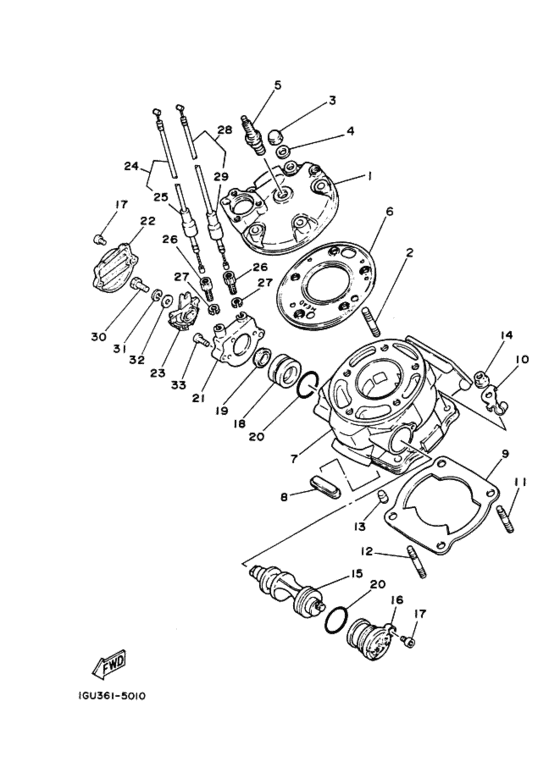

Cylinder Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GU-11111-00-00
Head, Cylinder 1
|
1GU-11111-00-00 |
— | ||
|
1
|
1
1GU-11111-01-00
Head, Cylinder 1
032101〜 |
1GU-11111-01-00 |
— | ||
|
2
|
2
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
3
|
3
90176-08040-00 Nut, Crown |
90176-08040-00 |
from US $1.66 |
||
|
4
|
4
90201-08649-00 Washer, Plateワツシヤ，プレート; |
90201-08649-00 |
from US $1.28 |
||
|
5
|
5
947-03002-04-00 Plug Spark Br8Esプラグ，スパーク ; ＮＧＫ−ＢＲ８ＥＳ |
947-03002-04-00 |
US $6.38 |
||
| replacement | |||||
|
5
|
5
BR8-ES000-00-00 Spark plug BR8ESプラグ，スパーク ; ＮＧＫ−ＢＲ８ＥＳ |
BR8-ES000-00-00 |
US $20.32 |
||
|
6
|
6
34X-11181-01-00 Gasket, Cylinder Head 1 |
34X-11181-01-00 |
US $57.89 |
||
|
7
|
7
1GU-11311-00-00
Cylinder 1
|
1GU-11311-00-00 |
— | ||
|
8
|
8
47X-11355-00-00 Seal, Cylinder 1シール，シリンダ １; |
47X-11355-00-00 |
from US $2 |
||
|
9
|
9
1GU-11351-00-00 Gasket, Cylinder |
1GU-11351-00-00 |
US $28.05 |
||
| replacement | |||||
|
9
|
9
1GU-11351-01-00 Gasket, Cylinder |
1GU-11351-01-00 |
US $28.05 |
||
|
10
|
10
1GU-1131E-00-00
Holder 1
|
1GU-1131E-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90116-08318-00 Bolt, Stud |
90116-08318-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
12
|
12
90116-08388-00 Bolt, Stud |
90116-08388-00 |
from US $3.32 |
||
|
13
|
13
995-10101-14-00
Pin, Dowel
ピン，ダウエル; |
995-10101-14-00 |
— | ||
| replacement | |||||
|
13
|
13
99530-10114-00 Pin, Dowelピン，ダウエル; |
99530-10114-00 |
from US $1.66 |
||
|
14
|
14
90179-08299-00 Nut |
90179-08299-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
15
|
15
1GU-1131A-00-00
Valve 1
|
1GU-1131A-00-00 |
— | ||
|
16
|
16
34X-1131E-00-00
Holder 1
|
34X-1131E-00-00 |
— | ||
|
17
|
17
91316-05012-00 Bolt |
91316-05012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
18
|
18
31K-1131U-00-00 Holder 3ホルダー ３; |
31K-1131U-00-00 |
from US $49.63 |
||
|
19
|
19
93108-23010-00 Oil Seal, Oso-Typeオイルシール; |
93108-23010-00 |
from US $6.62 |
||
|
20
|
20
932-10306-40-00
O-Ring
|
932-10306-40-00 |
— | ||
| replacement | |||||
|
20
|
20
93210-30734-00 O-Ring |
93210-30734-00 |
from US $11.62 |
||
|
21
|
21
34X-1131M-00-00 Coverカバー; |
34X-1131M-00-00 |
US $52.78 |
||
|
22
|
22
34X-1131R-00-00
Cap, Seal
キヤツプ，シール; |
34X-1131R-00-00 |
— | ||
|
23
|
23
29L-1132E-00-00 Pulley 1プーリー １; |
29L-1132E-00-00 |
from US $8.28 |
||
|
24
|
24
1GU-1133E-00-00
Cable, Pulley 1
ワイヤ，プーリー １; |
1GU-1133E-00-00 |
— | ||
|
25
|
25
34X-26329-00-00 Cap, Rubber．キヤツプ，ラバー; |
34X-26329-00-00 |
US $7.79 |
||
|
26
|
26
90123-06097-00 Bolt |
90123-06097-00 |
US $10.20 |
||
|
27
|
27
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
28
|
28
1GU-1133F-00-00
Cable, Pulley 2
ワイヤ，プーリー ２; |
1GU-1133F-00-00 |
— | ||
|
29
|
29
34X-26329-00-00 Cap, Rubber．キヤツプ，ラバー; |
34X-26329-00-00 |
US $7.79 |
||
|
30
|
30
97326-06018-00 Bolt |
97326-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
31
|
31
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.93 |
||
|
32
|
32
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
33
|
33
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
33
|
33
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
33
|
33
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
