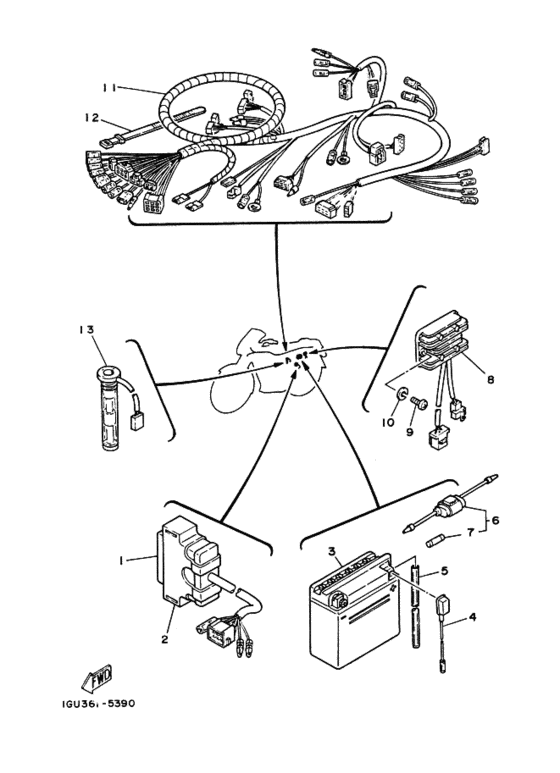

Electrical 1 Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GU-85540-M0-00
C.d.i. Unit Assy
．．．ＣＤＩユニツトアセンブリ; |
1GU-85540-M0-00 |
— | ||
|
2
|
2
1GU-85546-00-00
Band
|
1GU-85546-00-00 |
— | ||
|
3
|
3
90890-85800-00
Battery (G.s.12N5-3B)
バツテリ ; ＧＳ １２Ｎ５−３８ |
90890-85800-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
バツテリ ; ＧＳ １２Ｎ５−３８ |
999-99999-99-00 |
— | ||
|
4
|
4
10W-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
10W-82115-00-00 |
US $20.83 |
||
|
5
|
5
90445-08247-00 Hose (L500)ホース; |
90445-08247-00 |
US $10.91 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
ホース; |
999-99999-99-00 |
— | ||
|
6
|
6
1E2-82150-00-00 Fuse Holder Assyフユーズホルダアセンブリ; |
1E2-82150-00-00 |
from US $11.76 |
||
| replacement | |||||
|
6
|
6
2UJ-82150-02-00 Fuse Holder Assyフユーズホルダアセンブリ; |
2UJ-82150-02-00 |
from US $9.89 |
||
|
7
|
7
148-82151-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
7
|
7
1A0-82161-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
1A0-82161-00-00 |
from US $11.96 |
||
|
8
|
8
5H0-81960-A0-00
Rectifier/reg Assembly
レクチフアイヤアンドレギユレータアセンブリ; |
5H0-81960-A0-00 |
— | ||
|
9
|
9
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
10
|
10
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
1GU-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
1GU-82590-00-00 |
— | ||
|
12
|
12
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
12
|
12
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.56 |
||
|
13
|
13
4L0-85720-00-00
Oil Lvl Guage Assembly
オイルレベルゲージアセンブリ; |
4L0-85720-00-00 |
— | ||
