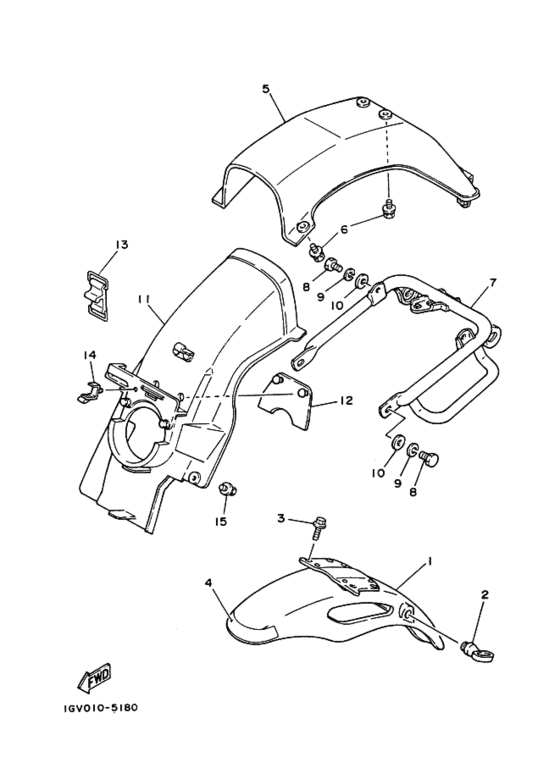

Fender Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GU-21510-00-E1
Front Fender Comp
フロントフエンダコンプリート; ＵＲ チヤピーレツド |
1GU-21510-00-E1 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
フロントフエンダコンプリート; ＵＲ チヤピーレツド |
999-99999-99-00 |
— | ||
|
1
|
1
1GU-21510-00-GJ
Front Fender Comp
フロントフエンダコンプリート; ＵＲ クールブルー |
1GU-21510-00-GJ |
— | ||
|
2
|
2
1A8-21518-00-00 Holder, Cableホルダ，ケーブル; |
1A8-21518-00-00 |
from US $4.53 |
||
|
3
|
3
95023-06012-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06012-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-06012-00 |
from US $1.56 |
||
|
4
|
4
16V-21519-00-00
Mole, Fender
モールド，フエンダ; |
16V-21519-00-00 |
— | ||
|
5
|
5
10W-21610-00-00
Rear Fender Comp
リヤフエンダコンプリート; |
10W-21610-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
リヤフエンダコンプリート; |
999-99999-99-00 |
— | ||
|
6
|
6
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
6
|
6
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
6
|
6
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
7
|
7
1GU-21645-00-00
Stay, Rear
ステー，リヤ; |
1GU-21645-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
ステー，リヤ; |
999-99999-99-00 |
— | ||
|
8
|
8
97306-08020-00 Bolt |
97306-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
8
|
8
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
9
|
9
929-06081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
10
|
10
929-06086-00-00
Washer
ワツシヤ，プレート; |
929-06086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
11
|
11
10W-21620-00-00
Mud Guard Comp
マツドガードコンプリート; |
10W-21620-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
マツドガードコンプリート; |
999-99999-99-00 |
— | ||
|
12
|
12
3M7-21621-00-00
Flap
|
3M7-21621-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
5H9-21376-00-00 Band, Toolバンド，ツール; |
5H9-21376-00-00 |
from US $4.57 |
||
|
14
|
14
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.35 |
||
|
15
|
15
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
15
|
15
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
