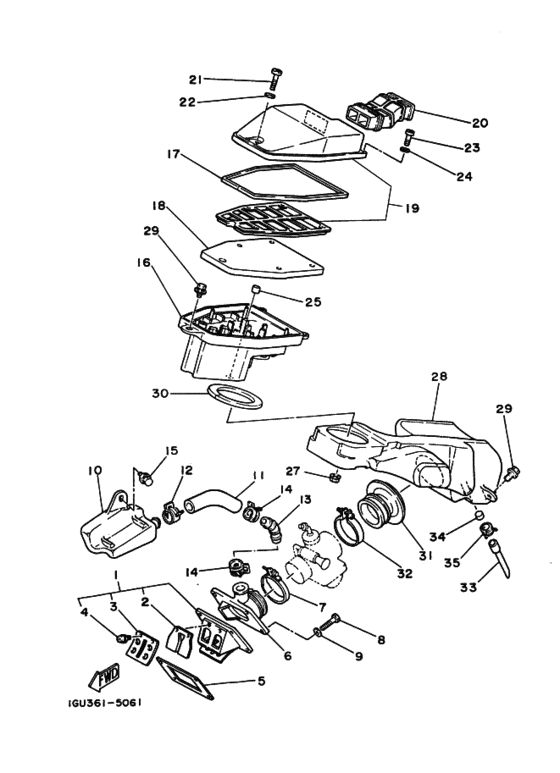

Intake Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-13610-01-00 Reed Valve Assembly (885-13610-リードバルブアセンブリ; |
10V-13610-01-00 |
from US $139.54 |
||
|
2
|
2
10V-13613-01-00 Reed, Valve (1L8-13613-00-00)．リード，バルブ; |
10V-13613-01-00 |
from US $10.34 |
||
|
3
|
3
10V-13616-01-00
Stopper, Reed Valve
．ストツパ，リードバルブ; |
10V-13616-01-00 |
— | ||
| replacement | |||||
|
3
|
3
1UA-13616-00-00
Stopper, Reed Valve (10V-1261
．ストツパ，リードバルブ; |
1UA-13616-00-00 |
— | ||
|
4
|
4
97602-03108-00 Screw, Pan Head．スクリユ，バインドウイズワツシヤ; |
97602-03108-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head．スクリユ，バインドウイズワツシヤ; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
33G-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
33G-13621-00-00 |
US $9.92 |
||
| replacement | |||||
|
5
|
5
3TT-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
3TT-13621-00-00 |
from US $9.92 |
||
|
6
|
6
10V-13565-01-00 Joint, Carburetor |
10V-13565-01-00 |
US $76.26 |
||
| replacement | |||||
|
6
|
6
99999-03606-00 Joint, Carburetor |
99999-03606-00 |
US $61.38 |
||
|
7
|
7
90460-44108-00 Clamp, Hoseクランプ，ホース; |
90460-44108-00 |
from US $10.06 |
||
| replacement | |||||
|
7
|
7
90450-44046-00 Hose Clamp Assyクランプ，ホース; |
90450-44046-00 |
from US $5.96 |
||
|
8
|
8
97306-06025-00 Bolt |
97306-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
10W-13581-00-00
Chamber, Air
チヤンバー，エア; |
10W-13581-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
チヤンバー，エア; |
999-99999-99-00 |
— | ||
|
11
|
11
1GU-13584-00-00
Pipe, Intake Manifold
パイプ，インテークマニホールド; |
1GU-13584-00-00 |
— | ||
|
12
|
12
904-67210-58-00
Clip, Scissor
|
904-67210-58-00 |
— | ||
| replacement | |||||
|
12
|
12
904-67210-68-00 Clip |
904-67210-68-00 |
from US $2.79 |
||
|
13
|
13
1GU-13595-00-00
Joint
|
1GU-13595-00-00 |
— | ||
|
14
|
14
90467-20050-00 Clip |
90467-20050-00 |
from US $1.28 |
||
|
15
|
15
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
15
|
15
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
16
|
16
10W-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
10W-14411-00-00 |
— | ||
|
17
|
17
10W-14457-00-00 Sealシール; |
10W-14457-00-00 |
from US $9.49 |
||
| replacement | |||||
|
17
|
17
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $7.62 |
||
|
18
|
18
10W-14451-00-00 Element, Air Clnrエレメント，エアクリーナ; |
10W-14451-00-00 |
from US $10.34 |
||
|
19
|
19
10W-W1441-00-00 Air Cleaner Caseキヤツプクリーナーケース １; |
10W-W1441-00-00 |
US $19.40 |
||
|
20
|
20
10W-14437-00-00
Duct
|
10W-14437-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
22
|
22
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
23
|
23
92051-06014-00
Bolt, Button Head
スクリユ，パンヘツド; |
92051-06014-00 |
— | ||
|
24
|
24
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
24
|
24
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
25
|
25
10W-14476-00-00
Seal
シール; |
10W-14476-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5H0-14462-00-00
Seal
シール; |
5H0-14462-00-00 |
— | ||
|
27
|
27
90179-06009-00 Nut |
90179-06009-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
90179-06403-00 Nut (21W) |
90179-06403-00 |
from US $1.70 |
||
|
28
|
28
10W-14441-01-00
Silencer, Intake 2
サイレンサ，インテーク ２; |
10W-14441-01-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
サイレンサ，インテーク ２; |
999-99999-99-00 |
— | ||
|
29
|
29
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
29
|
29
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
29
|
29
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
30
|
30
10W-14452-00-00
Seal
シール; |
10W-14452-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
シール; |
999-99999-99-00 |
— | ||
|
31
|
31
4L0-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナー １; |
4L0-14453-00-00 |
US $36.20 |
||
|
32
|
32
90460-49058-00 Clamp, Hoseクランプ，ホース; |
90460-49058-00 |
from US $2.98 |
||
|
33
|
33
10W-1443E-00-00
Pipe, Drain
パイプドレイン; |
10W-1443E-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
パイプドレイン; |
999-99999-99-00 |
— | ||
|
34
|
34
10W-14476-00-00
Seal
シール; |
10W-14476-00-00 |
— | ||
| replacement | |||||
|
34
|
34
5H0-14462-00-00
Seal
シール; |
5H0-14462-00-00 |
— | ||
|
35
|
35
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
