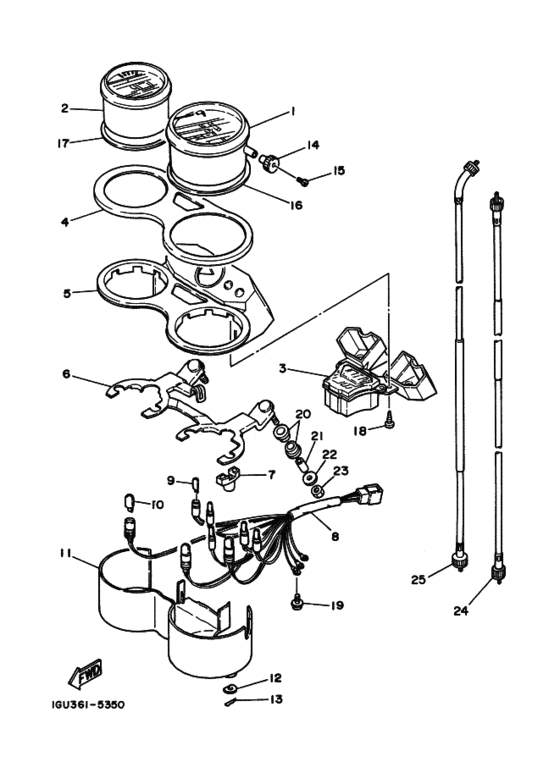

Meter Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GV-83570-50-00
Speedometer Assy
スピードメータアセンブリ; |
1GV-83570-50-00 |
— | ||
|
2
|
2
51Y-83540-00-00
Tachometer Assy
タコメータアセンブリ; |
51Y-83540-00-00 |
— | ||
|
3
|
3
1GU-85750-00-00
Fuel Meter Assy
フユエルメータアセンブリ; |
1GU-85750-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1GU-83590-00-00
Water Temperature Assy
フユエルメータアセンブリ; |
1GU-83590-00-00 |
— | ||
|
4
|
4
1GU-83611-00-00
Panel, Meter
パネル，メータ; |
1GU-83611-00-00 |
— | ||
|
5
|
5
1GU-83568-00-00
Pilot Box, Upper
パイロツトボツクス，アツパ; |
1GU-83568-00-00 |
— | ||
|
6
|
6
51Y-83519-00-00
Bracket, Meter
ブラケツト，メータ; |
51Y-83519-00-00 |
— | ||
|
7
|
7
51Y-83523-00-00 Damperダンパ; |
51Y-83523-00-00 |
from US $6.52 |
||
|
8
|
8
1GU-83509-00-00
Socket Cord Assy
ソケツトコードアセンブリ; |
1GU-83509-00-00 |
— | ||
|
9
|
9
42X-83517-00-00 Bulb (14V-3.4W)バルブ ; １２Ｖ−３Ｗ |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
3FV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−３Ｗ |
3FV-83517-00-00 |
from US $3.32 |
||
|
10
|
10
4G1-84744-00-00 Bulb (12V-3.4W T10)．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
10
|
10
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．バルブ ; １２Ｖ−３４Ｗ |
4G1-84744-00-XX |
— | ||
|
11
|
11
51Y-83579-00-00 Cover, Meter 2カバー，メータ ２; |
51Y-83579-00-00 |
from US $33.35 |
||
|
12
|
12
51Y-83524-00-00 Washer, Specialワツシヤ，スペシヤル; |
51Y-83524-00-00 |
from US $2.02 |
||
|
13
|
13
437-53525-00-00
ｸﾘﾂﾌﾟ
クリツプ; |
437-53525-00-00 |
— | ||
|
14
|
14
12R-83578-00-00 Knob, Trip Meterノブ，トリツプメータ; |
12R-83578-00-00 |
from US $12.89 |
||
| replacement | |||||
|
14
|
14
1AE-83578-00-00 Knob, Trip Meterノブ，トリツプメータ; |
1AE-83578-00-00 |
from US $12.89 |
||
|
15
|
15
90157-02031-00 Screw, Pan Head |
90157-02031-00 |
from US $1.65 |
||
|
16
|
16
51Y-83513-00-00 Damperダンパ; |
51Y-83513-00-00 |
from US $11.75 |
||
|
17
|
17
51Y-83541-00-00 Damperダンパ; |
51Y-83541-00-00 |
from US $11.75 |
||
|
18
|
18
90164-04005-00
Screw, Tapping
|
90164-04005-00 |
— | ||
|
19
|
19
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
20
|
20
2J2-83541-00-00 Damper |
2J2-83541-00-00 |
from US $7.23 |
||
| replacement | |||||
|
20
|
20
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
21
|
21
90387-06249-00 Collarカラー; |
90387-06249-00 |
from US $1.28 |
||
|
22
|
22
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
23
|
23
95306-06600-00 Nut |
95306-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
24
|
24
11L-83550-00-00 Sdmtr Cableスピードメータケーブルアセンブリ; |
11L-83550-00-00 |
from US $30.46 |
||
| replacement | |||||
|
24
|
24
3VP-83550-02-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
3VP-83550-02-00 |
from US $30.46 |
||
|
25
|
25
1GU-83560-00-00 Tachometer Cable Assyタコメータケーブルアセンブリ; |
1GU-83560-00-00 |
US $28.21 |
||
|
25
|
25
1GU-83560-01-00
Tachometer Cable Assy
タコメータケーブルアセンブリ; 032101〜 |
1GU-83560-01-00 |
— | ||
| replacement | |||||
|
25
|
25
1GU-83560-02-00 Tachometer Cableタコメータケーブルアセンブリ; 032101〜 |
1GU-83560-02-00 |
US $53.93 |
||
