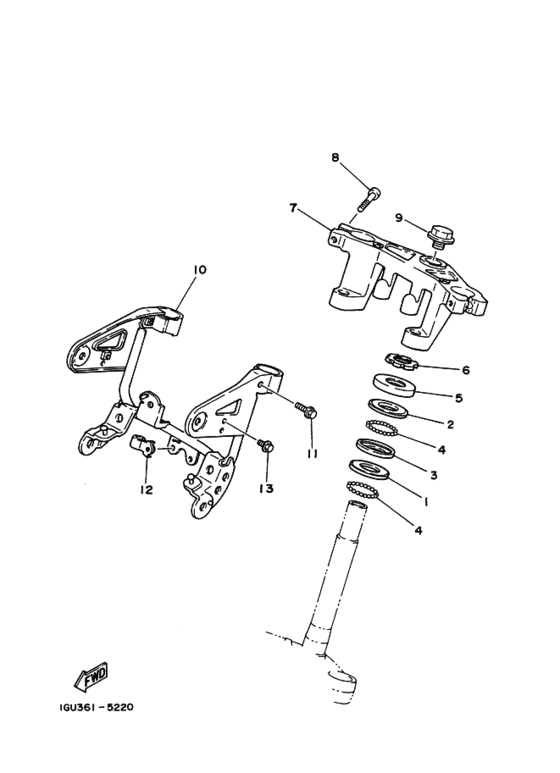

Steering Diagram Yamaha RZ125
- Year
- 1985
- Colour
- White (WW; 0036)
- Model code
- 1GV0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- RZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
|
2
|
2
183-23411-00-00 Race, Ball 1レース，ボール １; |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
2
|
2
4FP-F3411-20-00 Race, Ball 1レース，ボール １; |
4FP-F3411-20-00 |
from US $6.23 |
||
|
3
|
3
183-23412-00-00 Race, Ball 2レース，ボール ２; |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
3
|
3
4FP-F3412-10-00 Race, Ball 2レース，ボール ２; |
4FP-F3412-10-00 |
from US $6.09 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
|
3
|
3
B6E-23412-00-00 Race, Ball 2レース，ボール ２; |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
93501-04011-00 Ballボール; |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recessボール; |
97D95-06016-00 |
from US $1.28 |
||
|
5
|
5
136-23415-00-00 Cover, Ball Race 1カバー，ボールレース １; |
136-23415-00-00 |
from US $3.26 |
||
|
6
|
6
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
6
|
6
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
6
|
6
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
7
|
7
51Y-23435-00-00 Crown, Handleクラウン，ハンドル; |
51Y-23435-00-00 |
US $125.98 |
||
|
8
|
8
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
8
|
8
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
9
|
9
90105-14102-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-14102-00 |
from US $7.97 |
||
|
10
|
10
1GU-23174-00-00
Stay, Headlight
ステー，ヘツドライト; |
1GU-23174-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
ステー，ヘツドライト; |
999-99999-99-00 |
— | ||
|
11
|
11
95023-06020-00 Bolt, Flg.(Small Head)ボルト，フランジ; |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95024-06020-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-06020-00 |
from US $1.34 |
||
|
12
|
12
90461-08031-00 Clamp |
90461-08031-00 |
from US $2.69 |
||
|
13
|
13
95023-06010-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
95024-06010-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-06010-00 |
from US $1.56 |
||
