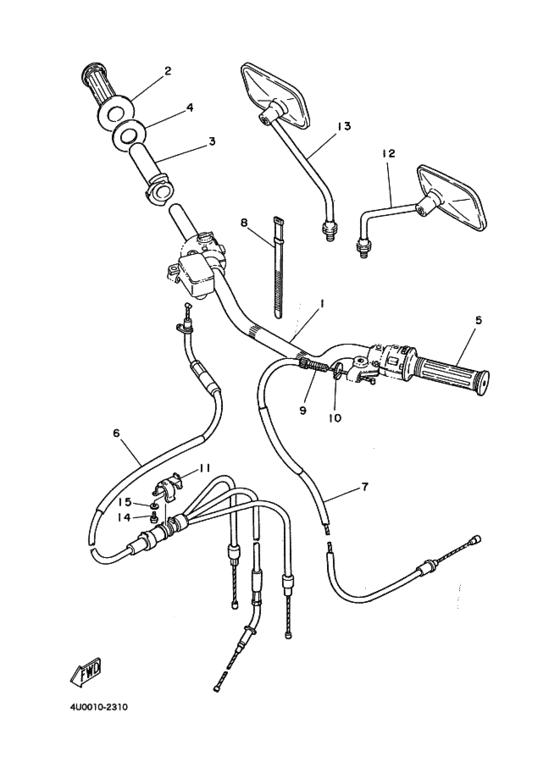

Steering handle & cable Diagram Yamaha RZ350
- Year
- 1982
- Colour
- White (WW; 0036)
- Model code
- 4U00
- Sales region
- Japan (010)
- Engine Capacity
- 350
- Color Variant
- B
- Model
- RZ350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4L0-26111-00-00
Handlebar
ハンドルバー; |
4L0-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
55K-26110-00-00 Handle Compハンドルバー; |
55K-26110-00-00 |
US $200.13 |
||
|
2
|
2
1A0-26242-01-00 Grip Rh (R.h.)グリツプ ; ライト |
1A0-26242-01-00 |
from US $10.44 |
||
|
3
|
3
1A0-26243-01-00
Tube,thrtl Guide
チユーブ，スロツトルガイド; |
1A0-26243-01-00 |
— | ||
| replacement | |||||
|
3
|
3
1GU-26243-00-00 Tube, Throttle Guideチユーブ，スロツトルガイド; |
1GU-26243-00-00 |
from US $29.20 |
||
|
4
|
4
278-26249-00-00
Washer, Plate (1V1-26249-00)
リング，リーフ; |
278-26249-00-00 |
— | ||
| replacement | |||||
|
4
|
4
90201-261L1-00 Washer, Plate (1V1-26249-00)リング，リーフ; |
90201-261L1-00 |
from US $2.69 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.)グリツプ ; レフト |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
4L0-26260-00-00 Cable Assy, Throttle & Pumpケーブルアセンブリ，スロツトルアンドポンプ; |
4L0-26260-00-00 |
US $133.60 |
||
|
7
|
7
4L0-26335-00-00 Cable, clutchケーブル，クラツチ; |
4L0-26335-00-00 |
US $53.74 |
||
|
8
|
8
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
8
|
8
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
9
|
9
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.74 |
||
| replacements | |||||
|
9
|
9
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
10
|
10
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
1A0-21364-01-00 Holder, Cable Cylinderホルダ，ケーブルシリンダ; |
1A0-21364-01-00 |
US $3.54 |
||
| replacement | |||||
|
11
|
11
90465-10319-00 Clampホルダ，ケーブルシリンダ; |
90465-10319-00 |
from US $3.54 |
||
|
12
|
12
4L3-26290-50-00
Back Mirror Assy (Left)
バツクミラーアセンブリ; |
4L3-26290-50-00 |
— | ||
|
13
|
13
4L3-26290-60-00
Back Mirror Assy (Right)
バツクミラーアセンブリ; |
4L3-26290-60-00 |
— | ||
|
14
|
14
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
15
|
15
92906-04100-00 Washer, Springワツシヤ，スプリング; |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
15
|
15
92907-04100-00 Washer, Springワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
15
|
15
999-99999-99-00
Not Available
ワツシヤ，スプリング; |
999-99999-99-00 |
— | ||
