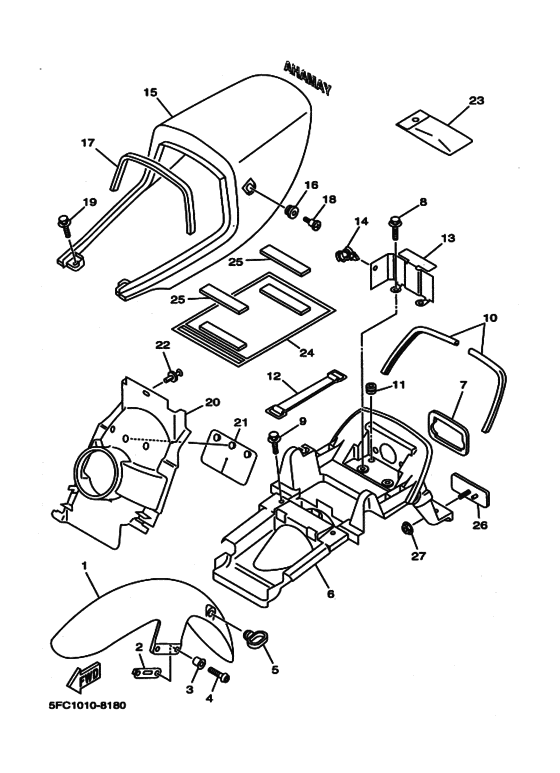

Fender Diagram Yamaha RZ50
- Year
- 2000
- Colour
- Radical White (RW; 00UJ)
- Model code
- 5FC2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- RZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FC-21511-00-00 Fender, FrontＵＲ ラジカルホワイト |
5FC-21511-00-00 |
US $87.20 |
||
|
2
|
2
5FC-21587-00-00 Stay 1 |
5FC-21587-00-00 |
US $4.26 |
||
|
3
|
3
903-87066-81-00
Collar
カラー; |
903-87066-81-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06857-00 Collarカラー; |
90387-06857-00 |
from US $1.52 |
||
|
4
|
4
92014-06020-00 Bolt, Button Headボルト，ボタンヘツド; |
92014-06020-00 |
from US $1.66 |
||
|
5
|
5
1A8-21518-00-00 Holder, Cableホルダ，ケーブル; |
1A8-21518-00-00 |
from US $4.53 |
||
|
6
|
6
5FC-21611-00-00
Fender, Rear
|
5FC-21611-00-00 |
— | ||
|
7
|
7
5FC-21669-00-00 Sealシール; |
5FC-21669-00-00 |
US $7.65 |
||
|
8
|
8
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
8
|
8
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
9
|
9
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
9
|
9
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
10
|
10
4BH-28376-00-00 Trim |
4BH-28376-00-00 |
from US $4.73 |
||
|
11
|
11
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
12
|
12
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
13
|
13
5FC-21652-00-00 Protectorプロテクター; |
5FC-21652-00-00 |
US $15.44 |
||
|
14
|
14
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.70 |
||
|
15
|
15
5FC-21651-00-00 Cover, Rear Fenderカバー，リヤフエンダ; ＵＲ ラジカルホワイトグラフィック無 |
5FC-21651-00-00 |
US $60.24 |
||
|
16
|
16
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
16
|
16
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
17
|
17
5FC-28376-00-00 Trim |
5FC-28376-00-00 |
US $12.34 |
||
|
18
|
18
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $2.08 |
||
|
19
|
19
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
19
|
19
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
20
|
20
5FC-21629-00-00
Guard, Mud
ガード，マツド; |
5FC-21629-00-00 |
— | ||
|
21
|
21
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
22
|
22
902-69070-76-00 Rivet(4Jh)リベツト; |
902-69070-76-00 |
from US $1.81 |
||
|
23
|
23
5FC-28100-00-00 Tool Kitツールキツト; |
5FC-28100-00-00 |
US $48.91 |
||
|
24
|
24
4KG-28186-00-00 Pouchポーチ; |
4KG-28186-00-00 |
from US $19.91 |
||
|
25
|
25
4KG-2814E-10-00 Hook |
4KG-2814E-10-00 |
from US $4.07 |
||
|
26
|
26
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
