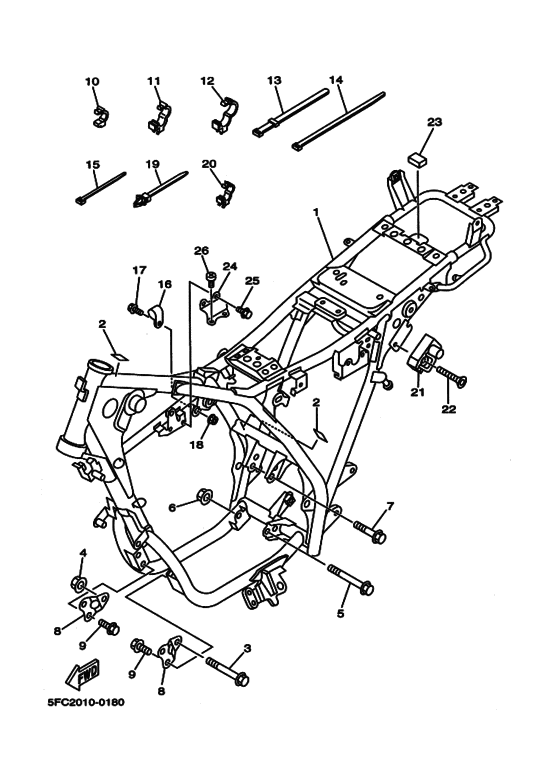

Frame Diagram Yamaha RZ50
- Year
- 2000
- Colour
- Radical White (RW; 00UJ)
- Model code
- 5FC2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- RZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FC-21110-10-33
Frame Comp
フレームコンプリート; |
5FC-21110-10-33 |
— | ||
|
2
|
2
3MA-27491-00-00 Protector |
3MA-27491-00-00 |
from US $4.39 |
||
|
3
|
3
90105-10392-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10392-00 |
from US $4.68 |
||
|
4
|
4
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
4
|
4
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
5
|
5
90105-10392-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10392-00 |
from US $4.68 |
||
|
6
|
6
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
7
|
7
90105-10402-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10402-00 |
from US $3.83 |
||
|
8
|
8
5FC-21418-00-00 Bracket, Front Lower 2 |
5FC-21418-00-00 |
US $6.66 |
||
|
9
|
9
958-27080-12-00 Bolt, Flangeボルト，フランジ; |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-08012-00 Bolt, Flangeボルト，フランジ; |
95817-08012-00 |
from US $1.07 |
||
|
10
|
10
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.81 |
||
|
11
|
11
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
12
|
12
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
13
|
13
3TB-83936-00-00 B53 Band, Switch Cord Jバンド，スイツチコード; |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
437-83936-11-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-11-00 |
from US $1.56 |
||
|
14
|
14
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
16
|
16
90461-15139-00 Clamp(4Tr)クランプ; |
90461-15139-00 |
from US $1.57 |
||
| replacement | |||||
|
16
|
16
904-64150-14-00 Clampクランプ; |
904-64150-14-00 |
from US $1.70 |
||
|
17
|
17
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
18
|
18
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
19
|
19
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
20
|
20
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
21
|
21
4R8-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
21
|
21
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
22
|
22
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
23
|
23
5FC-21268-00-00 Sealシール; |
5FC-21268-00-00 |
US $1.90 |
||
|
24
|
24
5FC-2116A-00-00 Stay 1ステー １; |
5FC-2116A-00-00 |
US $8.93 |
||
|
25
|
25
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
25
|
25
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
26
|
26
98507-06010-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06010-00 |
from US $1.07 |
||
