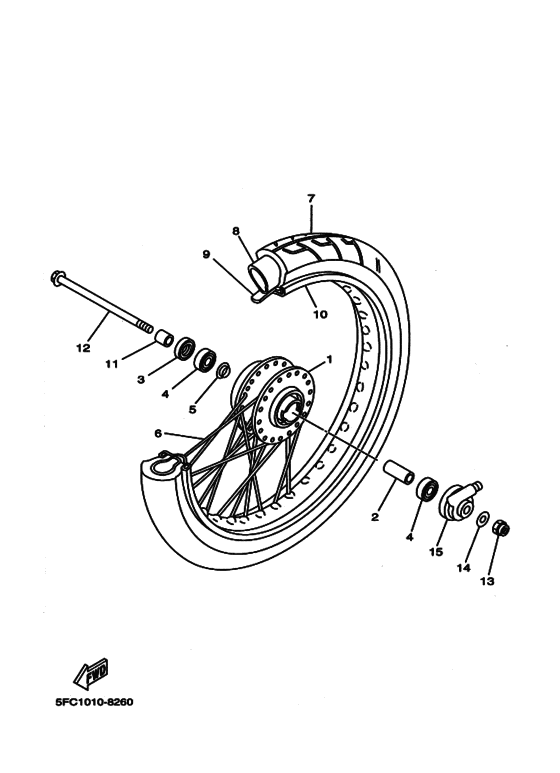

Front wheel Diagram Yamaha RZ50
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5FC2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- RZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FC-25111-00-00 Hub, Front |
5FC-25111-00-00 |
US $208.89 |
||
|
2
|
2
90560-10292-00 Spacerスペーサ; |
90560-10292-00 |
US $9.07 |
||
|
3
|
3
93106-20001-00 Oil Sealオイルシール; |
93106-20001-00 |
US $6.24 |
||
|
4
|
4
933-06300-03-00 Bearingベアリング ; Ｂ６３００Ｚ |
933-06300-03-00 |
from US $10.10 |
||
|
5
|
5
195-25115-00-00 New Genuine Partフランジ，スペーサ １; |
195-25115-00-00 |
from US $2.43 |
||
| replacement | |||||
|
5
|
5
2E9-25116-00-00 Flange, Spacer 2フランジ，スペーサ １; |
2E9-25116-00-00 |
from US $3.47 |
||
|
6
|
6
5FC-25104-00-00 Spoke Set, Frontスポークセツト，フロント; |
5FC-25104-00-00 |
US $77.37 |
||
|
9
|
9
94327-17079-00 Band, Rim (1E2)．バンド，リム ; ２７５−１７; イノウエ |
94327-17079-00 |
from US $3.20 |
||
| replacement | |||||
|
9
|
9
94332-17112-00 Band, Rim (2.75-17)．バンド，リム ; ２７５−１７; イノウエ |
94332-17112-00 |
from US $5.67 |
||
|
10
|
10
94416-17596-00 Rim (1.60-17)．リム ; １６０−１７ |
94416-17596-00 |
US $126.14 |
||
|
11
|
11
90387-10277-00 Collarカラー; |
90387-10277-00 |
from US $8.22 |
||
| replacement | |||||
|
11
|
11
903-87108-28-00 Collarカラー; |
903-87108-28-00 |
US $8.22 |
||
|
12
|
12
3VP-25181-00-00 Axle, Wheelアクスル，ホイール; |
3VP-25181-00-00 |
from US $7.15 |
||
| replacement | |||||
|
12
|
12
3XG-F5181-00-00 Axle, Wheelアクスル，ホイール; |
3XG-F5181-00-00 |
from US $5.36 |
||
|
13
|
13
95614-10100-00 Nut, U |
95614-10100-00 |
from US $5.68 |
||
|
14
|
14
90201-101J1-00 Washer, Plateワツシヤ，プレート; |
90201-101J1-00 |
from US $1.66 |
||
|
15
|
15
3PP-25190-02-00 Gear Unit Assy |
3PP-25190-02-00 |
US $54.71 |
||
| replacements | |||||
|
15
|
15
3PP-25190-05-00 Gear Unit Assy |
3PP-25190-05-00 |
US $41.30 |
||
|
15
|
15
3PP-25190-03-00 Gear Unit Assy |
3PP-25190-03-00 |
US $45.75 |
||
