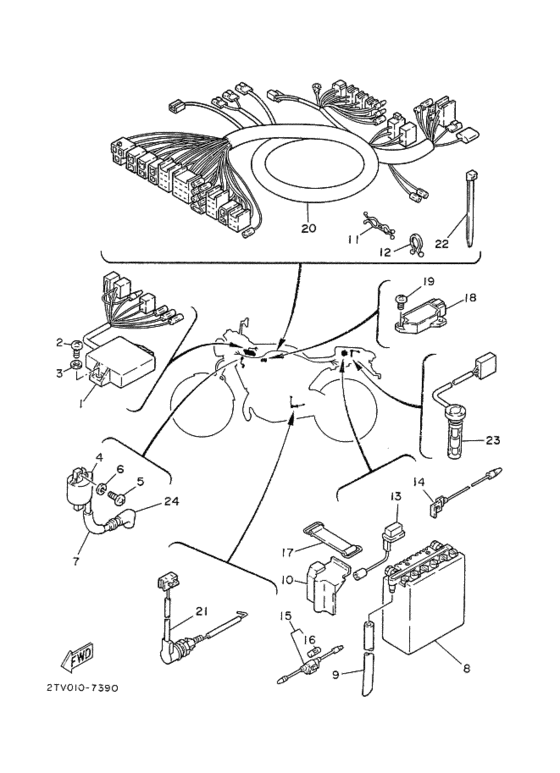

Electrical 1 Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-85540-M0-00
C.d.i. Unit Assy
|
2TV-85540-M0-00 |
— | ||
|
2
|
2
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
2
|
2
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.18 |
||
|
4
|
4
2JN-82310-M0-00
Ignition Coil Assemb
|
2JN-82310-M0-00 |
— | ||
| replacements | |||||
|
4
|
4
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
4
|
4
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
4
|
4
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
4
|
4
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
4
|
4
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
4
|
4
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
5
|
5
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
6
|
6
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
2TV-82351-00-00
Tube, Cord
|
2TV-82351-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90890-85841-00
Battery Assy (Gm3-3B Gs)
バツテリ− ; ＧＭ３−３Ｂ ＧＳ |
90890-85841-00 |
— | ||
|
9
|
9
90445-084F2-00
Hose
|
90445-084F2-00 |
— | ||
| replacement | |||||
|
9
|
9
90445-08716-00
Hose (L1250)
|
90445-08716-00 |
— | ||
|
10
|
10
2TV-82129-00-00
Cover, Battery
|
2TV-82129-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90464-16115-00 Clamp |
90464-16115-00 |
from US $2.69 |
||
|
12
|
12
90464-18116-00 Clamp |
90464-18116-00 |
from US $2.09 |
||
|
13
|
13
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
14
|
14
2J2-82116-00-00 Wire, Minus Lead |
2J2-82116-00-00 |
US $13.63 |
||
|
15
|
15
2TV-82150-00-00 Fuse Holder Assembly |
2TV-82150-00-00 |
from US $10.93 |
||
| replacement | |||||
|
15
|
15
2TV-82150-02-00 Fuse Holder Assembly |
2TV-82150-02-00 |
from US $14.45 |
||
|
16
|
16
4X7-82151-00-00 Fuse (15A)．フユ−ズ ; ５Ａ |
4X7-82151-00-00 |
from US $4.96 |
||
|
17
|
17
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
17
|
17
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
18
|
18
47X-81960-A1-00
Rectifier & Regulator Assembly
レクチフアイヤアンドレギユレ−タアセンブリ; |
47X-81960-A1-00 |
— | ||
| replacement | |||||
|
18
|
18
47X-81960-A3-00 Rectifier & Regulator Assemblyレクチフアイヤアンドレギユレ−タアセンブリ; |
47X-81960-A3-00 |
from US $220.41 |
||
|
19
|
19
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
20
|
20
2TV-82590-00-00
Wire Harness Assy
|
2TV-82590-00-00 |
— | ||
|
21
|
21
2TV-82530-00-00
Stop Switch Assy
|
2TV-82530-00-00 |
— | ||
| replacements | |||||
|
21
|
21
2TV-82530-03-00
Stop Switch Assy
|
2TV-82530-03-00 |
— | ||
|
21
|
21
2TV-82530-02-00
Stop Switch Assy
|
2TV-82530-02-00 |
— | ||
|
22
|
22
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
568-85720-02-00
Oil Level Gauge Assy
|
568-85720-02-00 |
— | ||
|
24
|
24
2TV-82370-00-00
Plug Cap Assembly
ウイズ ノイズサプレツサ |
2TV-82370-00-00 |
— | ||
| replacement | |||||
|
24
|
24
8DG-82370-00-00 Plug Cap Assyウイズ ノイズサプレツサ |
8DG-82370-00-00 |
from US $28.34 |
||
