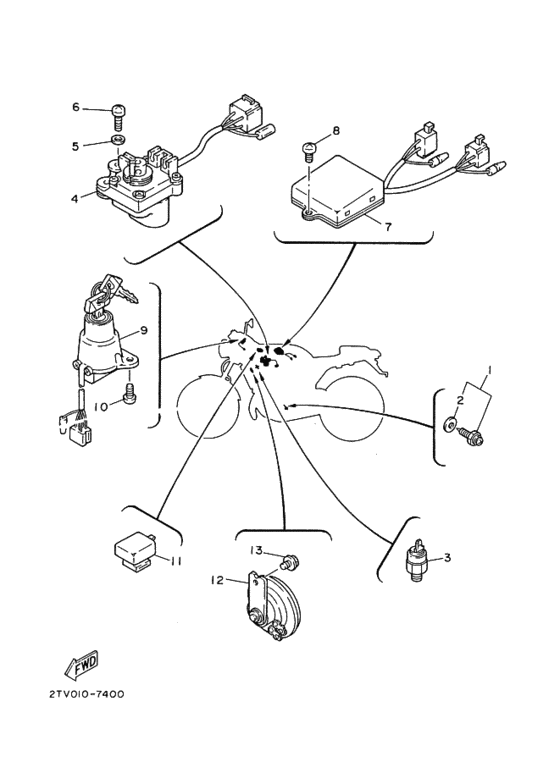

Electrical 2 Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
2
|
2
341-82543-00-00
Gasket
．ガスケツト; |
341-82543-00-00 |
— | ||
| replacement | |||||
|
2
|
2
296-82543-00-00 Gasket．ガスケツト; |
296-82543-00-00 |
from US $2.69 |
||
|
3
|
3
2TV-82560-10-00
Thermo Switch Assy
サ−モスイツチアセンブリ; |
2TV-82560-10-00 |
— | ||
|
4
|
4
1KT-85820-01-00
Servo Motor Assy
サ−ボモ−タアセンブリ; |
1KT-85820-01-00 |
— | ||
|
5
|
5
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
6
|
6
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
1TG-85830-01-00
Control Unit Assy
コントロ−ルユニツトアセンブリ; |
1TG-85830-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
コントロ−ルユニツトアセンブリ; |
999-99999-99-00 |
— | ||
|
8
|
8
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
9
|
9
2MY-82021-01-00
Key Set
キ−セツト; ＡＰ＊１ |
2MY-82021-01-00 |
— | ||
| replacements | |||||
|
9
|
9
2MY-82027-03-00
Key Set
キ−セツト; ＡＰ＊１ |
2MY-82027-03-00 |
— | ||
|
9
|
9
2MY-82022-01-00
Key Set
キ−セツト; ＡＰ＊１ |
2MY-82022-01-00 |
— | ||
|
9
|
9
2TV-82501-00-00
Main Switch Steering Lock
|
2TV-82501-00-00 |
— | ||
| replacement | |||||
|
9
|
9
2MY-82501-03-00
Main Switch Steering Lock
|
2MY-82501-03-00 |
— | ||
|
10
|
10
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
11
|
11
29G-83350-20-00 Flasher Relay Assy |
29G-83350-20-00 |
from US $47.25 |
||
|
12
|
12
2TV-83371-00-00 Horn |
2TV-83371-00-00 |
from US $59.20 |
||
| replacement | |||||
|
12
|
12
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
13
|
13
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
