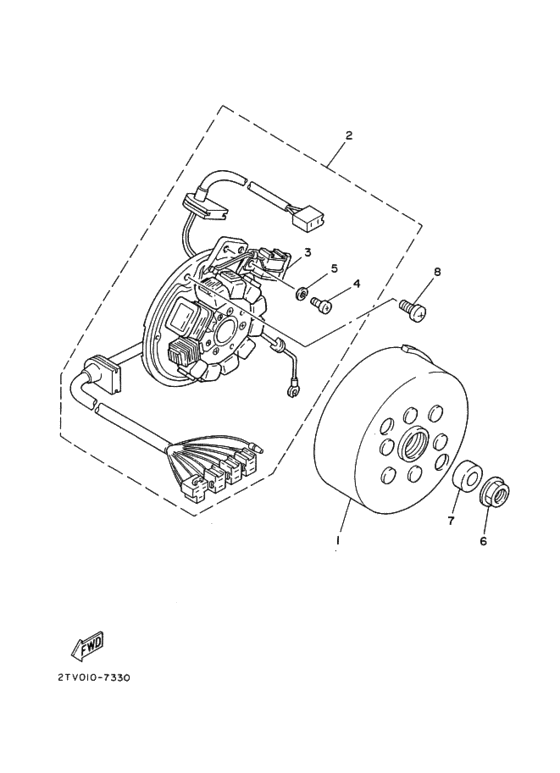

Generator Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2RH-85550-M1-00
Rotor Assy
|
2RH-85550-M1-00 |
— | ||
|
2
|
2
2TV-85560-M0-00
Base Assy
ベ−スアセンブリ; |
2TV-85560-M0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
ベ−スアセンブリ; |
999-99999-99-00 |
— | ||
|
3
|
3
34X-85595-M0-00
Coil, Pulser
．コイル，パルサ; |
34X-85595-M0-00 |
— | ||
|
4
|
4
98501-04010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
985-80040-10-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80040-10-00 |
from US $1.07 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
90179-12323-00 Nut |
90179-12323-00 |
from US $4.34 |
||
| replacement | |||||
|
6
|
6
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
7
|
7
90201-123L6-00 Washer, Plate |
90201-123L6-00 |
from US $10.20 |
||
|
8
|
8
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
