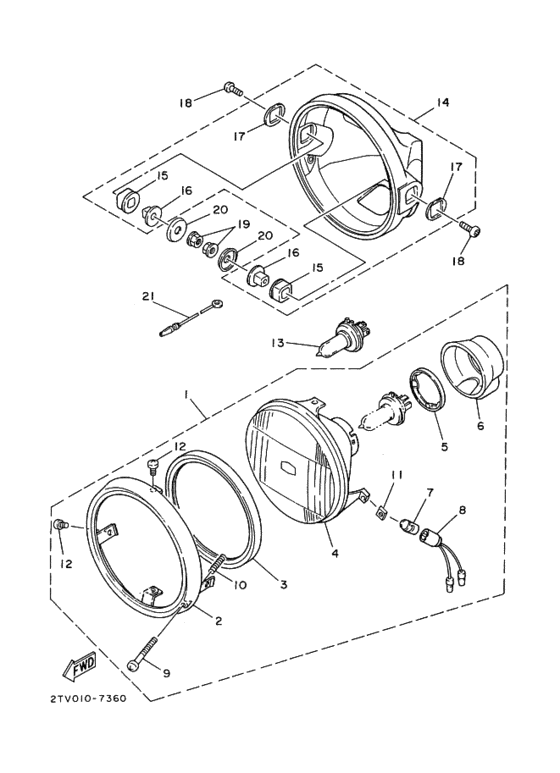

Headlight Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-84303-H0-00
Headlight Unit Assy
|
2TV-84303-H0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4X7-84315-00-00
Rim, Headlight
．リム，ヘツドライト; |
4X7-84315-00-00 |
— | ||
|
3
|
3
4X7-84395-00-00
Ring, Retaining
．リング，リテ−ニング; |
4X7-84395-00-00 |
— | ||
|
4
|
4
2TV-84320-H0-00
Lens Assy
．レンズアセンブリ; |
2TV-84320-H0-00 |
— | ||
|
5
|
5
2F9-84375-00-00 Setting Plate, Bulb．フイツテイングプレ−ト，バルブ; |
2F9-84375-00-00 |
from US $20.25 |
||
|
6
|
6
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr．カバ−，ソケツト; |
2F9-84397-01-00 |
from US $17.48 |
||
|
7
|
7
123-83516-21-00 Bulb (12V3.4W)．バルブ ; １２Ｖ−３．４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
123-83516-21-XX Bulb (12V-3.4W)．バルブ ; １２Ｖ−３．４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
8
|
8
34L-84346-00-00 Socket, Pilot Light．ソケツト，パイロツトライト; |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
8
|
8
52E-84346-00-00 Socket, Pilot Light．ソケツト，パイロツトライト; |
52E-84346-00-00 |
US $21.11 |
||
|
9
|
9
341-84331-60-00
Screw, Adjusting
．スクリユ，リムアジヤステイング; |
341-84331-60-00 |
— | ||
| replacement | |||||
|
9
|
9
901-57040-01-00 Screw, Rim Adjusting．スクリユ，リムアジヤステイング; |
901-57040-01-00 |
from US $6.23 |
||
|
10
|
10
1A0-84332-60-00 Spring, Screw．スプリング，スクリユ; |
1A0-84332-60-00 |
from US $10.81 |
||
| replacement | |||||
|
10
|
10
447-84332-60-00 Spring, Screw．スプリング，スクリユ; |
447-84332-60-00 |
from US $10.75 |
||
|
11
|
11
198-84334-60-00 Nut, Adjusting．ナツト，アジヤステイング; |
198-84334-60-00 |
from US $3.47 |
||
|
12
|
12
98501-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
12
|
12
98517-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05012-00 |
from US $1.21 |
||
|
12
|
12
98580-05012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05012-00 |
from US $2.13 |
||
|
13
|
13
2LM-84314-00-00 Bulb, Headlightバルブ，ヘツドライト ; １２Ｖ４５／４５Ｗ |
2LM-84314-00-00 |
US $75.44 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
バルブ，ヘツドライト ; １２Ｖ４５／４５Ｗ |
999-99999-99-00 |
— | ||
|
14
|
14
2TV-84330-00-00
Body Assy
|
2TV-84330-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1JA-84345-00-00 Damper, Headlight．ダンパ，ヘツドライト; |
1JA-84345-00-00 |
US $14.45 |
||
|
16
|
16
1JA-84338-00-00
Collar, Body Fitting
．カラ−，ボデ−フイツテイング; |
1JA-84338-00-00 |
— | ||
|
17
|
17
1JA-84354-00-00
Grommet
．グロメツト; |
1JA-84354-00-00 |
— | ||
|
18
|
18
92013-08030-00
Bolt
|
92013-08030-00 |
— | ||
|
19
|
19
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
19
|
19
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
19
|
19
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
19
|
19
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
20
|
20
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
20
|
20
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
21
|
21
1H2-83346-00-00
Cord (1M1-82519-00)
|
1H2-83346-00-00 |
— | ||
