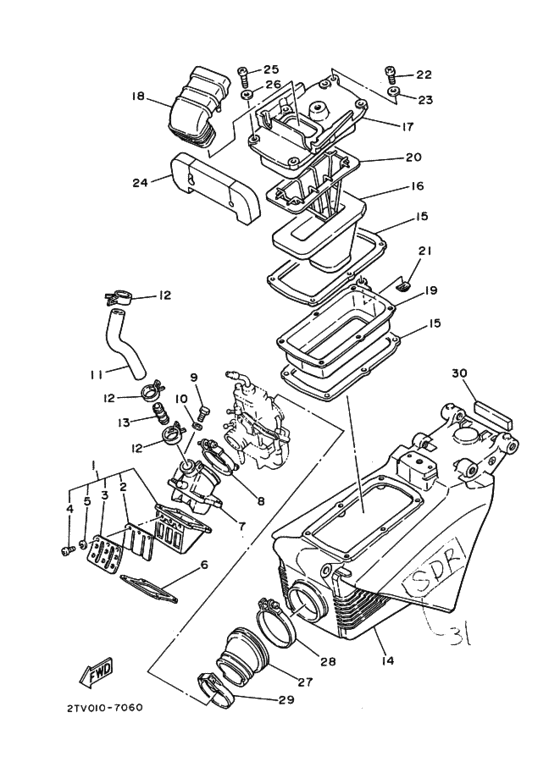

Integ unit assy spr Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-13610-00-00 Reed Valve Assy |
2TV-13610-00-00 |
US $175.46 |
||
| replacement | |||||
|
1
|
1
3BN-13610-00-00 Reed Valve Assy |
3BN-13610-00-00 |
US $175.46 |
||
|
2
|
2
2TV-13613-00-00 Reed, Valve．リ−ド，バルブ; |
2TV-13613-00-00 |
US $17.71 |
||
|
3
|
3
1KT-13616-00-00
Stopper, Reed Valve
．ストツパ，リ−ドバルブ; |
1KT-13616-00-00 |
— | ||
|
4
|
4
98501-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
1KT-13621-00-00 Gasket, Valve Seat |
1KT-13621-00-00 |
US $10.63 |
||
| replacement | |||||
|
6
|
6
1KT-13621-01-00 Gasket, Valve Seat |
1KT-13621-01-00 |
US $10.63 |
||
|
7
|
7
2TV-13565-00-00 Joint, Carburetor |
2TV-13565-00-00 |
US $133.05 |
||
|
8
|
8
90460-44108-00 Clamp, Hose |
90460-44108-00 |
from US $10.06 |
||
| replacement | |||||
|
8
|
8
904-50440-46-00 Hose Clamp Assy |
904-50440-46-00 |
from US $6.40 |
||
|
9
|
9
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-06066-00-00
Washer
ワツシヤ，プレ−ト; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06600-00 Washer, Plateワツシヤ，プレ−ト; |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
2TV-13584-00-00
Pipe, Intake Manifold
パイプ，インテ−クマニホ−ルド; |
2TV-13584-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
パイプ，インテ−クマニホ−ルド; |
999-99999-99-00 |
— | ||
|
12
|
12
90467-20050-00 Clip |
90467-20050-00 |
from US $1.28 |
||
|
13
|
13
10V-13595-01-00
Joint
|
10V-13595-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
2TV-14411-00-00
Case, Air Cleaner 1
|
2TV-14411-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
2TV-14462-00-00
Seal
|
2TV-14462-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
34X-14451-00-00 Element, Air Cleanerエレメント，エアクリ−ナ; |
34X-14451-00-00 |
from US $28.21 |
||
| replacement | |||||
|
16
|
16
34X-14451-01-00 エレメント，エアクリ−ナ; |
34X-14451-01-00 |
US $32.02 |
||
|
17
|
17
2TV-14412-00-00
Cap, Cleaner Case 1
|
2TV-14412-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
2TV-14437-00-00
Duct
|
2TV-14437-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2TV-14477-00-00
Plate
|
2TV-14477-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
34X-14458-00-00
Guide
|
34X-14458-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4AN-E4458-00-00
Guide
|
4AN-E4458-00-00 |
— | ||
|
21
|
21
90183-04012-00 Nut, Spring |
90183-04012-00 |
from US $2.27 |
||
|
22
|
22
97801-04010-00 Screw, Pan Head |
97801-04010-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
23
|
23
929-01046-00-00
Washer
ワツシヤ，プレ−ト; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90046-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90046-00-00 |
from US $1.07 |
||
|
24
|
24
2TV-1442F-00-00
Protector
プロテクタ; |
2TV-1442F-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
プロテクタ; |
999-99999-99-00 |
— | ||
|
25
|
25
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
26
|
26
929-01066-00-00
Washer
ワツシヤ，プレ−ト; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレ−ト; |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
92907-06600-00 Washer, Plateワツシヤ，プレ−ト; |
92907-06600-00 |
from US $1.18 |
||
|
27
|
27
1KT-14463-00-00 Joint, Air Cleaner 2ジヨイント，エアクリ−ナ− ２; |
1KT-14463-00-00 |
US $35.56 |
||
|
28
|
28
90460-68230-00 Clamp, Hose (29L) |
90460-68230-00 |
from US $5.40 |
||
|
29
|
29
1AE-13575-00-00 Hose Clamp Assy |
1AE-13575-00-00 |
from US $7.07 |
||
| replacement | |||||
|
29
|
29
90450-53005-00 Hose Clamp Assy |
90450-53005-00 |
from US $9.78 |
||
|
30
|
30
2TV-21638-00-00 Damper 1 |
2TV-21638-00-00 |
US $2.03 |
||
|
31
|
31
2TV-21781-00-00
Emblem 1
エンブレム; |
2TV-21781-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
エンブレム; |
999-99999-99-00 |
— | ||
