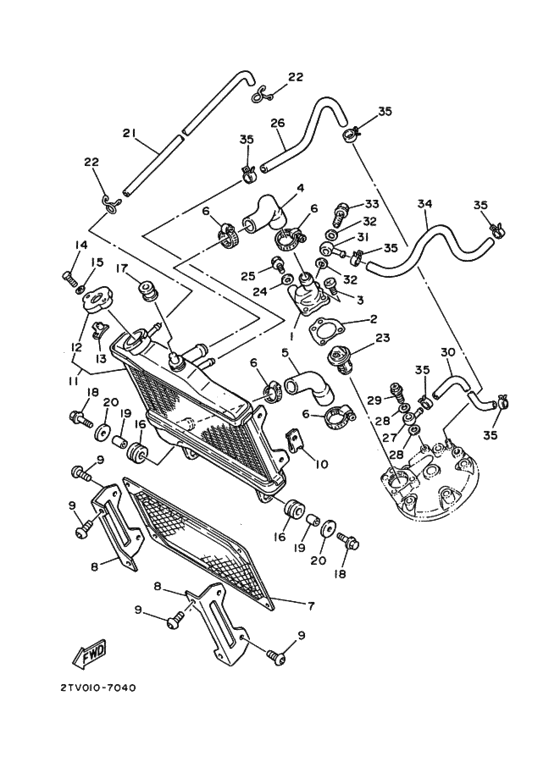

ﾗｼﾞｴﾀ.ﾎ-ｽ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-12469-00-00
Joint 1
|
2TV-12469-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2TV-12414-00-00
Gasket, Cover
|
2TV-12414-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2TV-12414-01-00
Gasket, Cover
|
2TV-12414-01-00 |
— | ||
|
3
|
3
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
4
|
4
2TV-12481-00-00
Pipe 1
|
2TV-12481-00-00 |
— | ||
|
5
|
5
2TV-12482-00-00
Pipe 2
|
2TV-12482-00-00 |
— | ||
|
6
|
6
904-50280-14-00
Hose Clamp Assy
ホ−スクランプアセンブリ; |
904-50280-14-00 |
— | ||
| replacement | |||||
|
6
|
6
90450-28001-00 Hose Clamp Assyホ−スクランプアセンブリ; |
90450-28001-00 |
from US $4.99 |
||
|
7
|
7
2TV-12498-00-00
Protector
|
2TV-12498-00-00 |
— | ||
|
8
|
8
2TV-1246A-00-00
Cover 1
|
2TV-1246A-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
901-10050-79-00
Bolt, Hexagon Socket Head
|
901-10050-79-00 |
— | ||
| replacements | |||||
|
9
|
9
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
|
9
|
9
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.39 |
||
|
10
|
10
90183-05044-00 Nut, Spring |
90183-05044-00 |
from US $1.48 |
||
| replacement | |||||
|
10
|
10
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $2.22 |
||
|
11
|
11
2TV-12460-00-00
Radiator Assy
ラジエタアセンブリ; |
2TV-12460-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
ラジエタアセンブリ; |
999-99999-99-00 |
— | ||
|
12
|
12
2TV-12462-00-00 Cap, Radiator．キヤツプ，ラジエタ; |
2TV-12462-00-00 |
US $31.03 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
．キヤツプ，ラジエタ; |
999-99999-99-00 |
— | ||
|
13
|
13
1KT-12437-00-00 Stopper |
1KT-12437-00-00 |
from US $11.62 |
||
|
14
|
14
97001-05012-00 Bolt (97002-05012-00) |
97001-05012-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
15
|
15
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
17
|
17
90480-16284-00 Grommet |
90480-16284-00 |
from US $1.98 |
||
|
18
|
18
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
19
|
19
90387-07392-00 Collar |
90387-07392-00 |
from US $3.83 |
||
|
20
|
20
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
21
|
21
2TV-12483-00-00 Pipe 3 |
2TV-12483-00-00 |
US $22.95 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
22
|
22
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
23
|
23
2TV-12411-00-00 Thermostat |
2TV-12411-00-00 |
from US $50.29 |
||
| replacement | |||||
|
23
|
23
2TV-12411-01-00 THERMOSTAT |
2TV-12411-01-00 |
from US $50.29 |
||
|
24
|
24
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
25
|
25
95821-06020-00 Bolt, Flange |
95821-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
25
|
25
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
26
|
26
2RH-12484-00-00 Pipe 4パイプ ４; |
2RH-12484-00-00 |
US $11.76 |
||
|
27
|
27
90405-06037-00 Union |
90405-06037-00 |
from US $9.83 |
||
|
28
|
28
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
29
|
29
90401-06115-00 Bolt, Union |
90401-06115-00 |
from US $4.57 |
||
| replacement | |||||
|
29
|
29
90401-06003-00 Bolt, Union |
90401-06003-00 |
from US $4.57 |
||
|
30
|
30
2TV-12485-00-00 Pipe 5 |
2TV-12485-00-00 |
US $16.58 |
||
| replacement | |||||
|
30
|
30
3XP-1243A-00-00 Hose 1 |
3XP-1243A-00-00 |
US $16.58 |
||
|
31
|
31
90405-06037-00 Union |
90405-06037-00 |
from US $9.83 |
||
|
32
|
32
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.39 |
||
|
33
|
33
90401-06115-00 Bolt, Union |
90401-06115-00 |
from US $4.57 |
||
| replacement | |||||
|
33
|
33
90401-06003-00 Bolt, Union |
90401-06003-00 |
from US $4.57 |
||
|
34
|
34
2TV-12476-00-00 Pipe 6 |
2TV-12476-00-00 |
US $16.58 |
||
| replacement | |||||
|
34
|
34
3XP-1243A-00-00 Hose 1 |
3XP-1243A-00-00 |
US $16.58 |
||
|
35
|
35
90467-10035-00 Clip |
90467-10035-00 |
from US $1.35 |
||
| replacement | |||||
|
35
|
35
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
