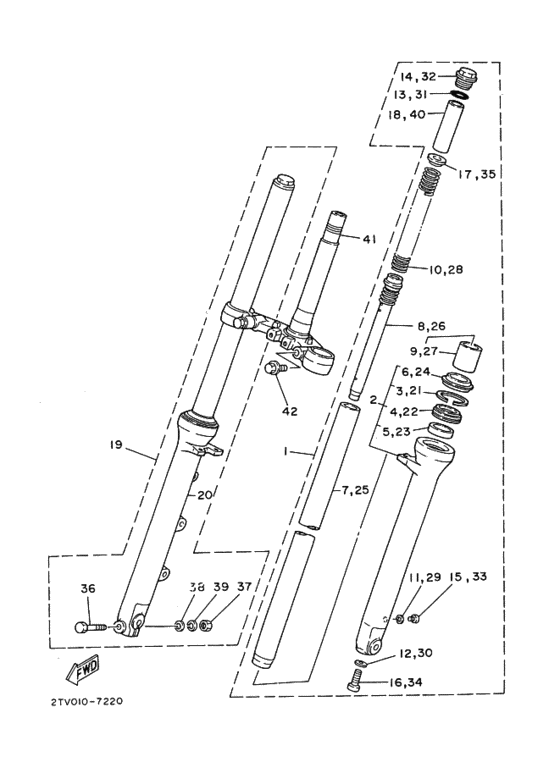

ﾌﾛﾝﾄﾌｵ-ｸ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-23102-10-00
Front Fork Assy (L.h)
フロントフオ−クアセンブリ ; レフト |
51Y-23102-10-00 |
— | ||
|
2
|
2
51Y-23126-01-00 Tube, Outer (L.h)．チユ−ブ，アウタ １; |
51Y-23126-01-00 |
US $110.66 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．チユ−ブ，アウタ １; |
999-99999-99-00 |
— | ||
|
3
|
3
22W-23153-L0-00 Ring, Snap．．リング，スナツプ; |
22W-23153-L0-00 |
from US $4.62 |
||
|
4
|
4
51Y-23145-00-00 Oil Seal．．オイルシ−ル; |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
4
|
4
2UJ-23145-00-00 Oil Seal．．オイルシ−ル; |
2UJ-23145-00-00 |
from US $11.66 |
||
|
5
|
5
51Y-23125-00-00 Metal, Slide 1．．メタル，スライド １; |
51Y-23125-00-00 |
from US $11.33 |
||
|
6
|
6
51Y-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
6
|
6
2UJ-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
2UJ-23144-00-00 |
from US $12.21 |
||
|
7
|
7
51Y-23110-00-93 Inner Tube 1Comp. 1．インナチユ−ブコンプリ−ト １; クロムメツキ |
51Y-23110-00-93 |
from US $156.22 |
||
|
8
|
8
51Y-23170-00-00 Cylinder, Frtfrk．シリンダコンプリ−ト，フロントフオ−ク; |
51Y-23170-00-00 |
US $37.93 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
．シリンダコンプリ−ト，フロントフオ−ク; |
999-99999-99-00 |
— | ||
|
9
|
9
5A8-23173-00-00 Spindle, Taper．スピンドル，テ−パ; |
5A8-23173-00-00 |
from US $18.14 |
||
| replacement | |||||
|
9
|
9
1W1-23173-L0-00 Taper Spindle．スピンドル，テ−パ; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
10
|
10
51Y-23141-10-00
Spring, Front Fork
．スプリング，フロントフオ−ク; |
51Y-23141-10-00 |
— | ||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレ−ンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
12
|
12
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
3J2-23114-00-00 O-Ring．Ｏ−リング; |
3J2-23114-00-00 |
from US $3.54 |
||
|
14
|
14
51Y-23111-10-00
Bolt, Cap
．ボルトキヤツプ; |
51Y-23111-10-00 |
— | ||
|
15
|
15
4H7-23119-00-00
Screw, Pan Head
．プラグ，ドレ−ン; |
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
15
|
15
98517-04006-00 Screw, Pan Head．プラグ，ドレ−ン; |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレ−ン; |
985-11040-06-00 |
— | ||
|
16
|
16
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト，ヘキサゴンソケツトヘツド; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
16
|
16
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3D8-23181-00-00 |
from US $5.41 |
||
|
17
|
17
583-23142-00-00
Seat, Spring Upper
．シ−ト，スプリングアツパ; |
583-23142-00-00 |
— | ||
|
18
|
18
5N8-23118-00-00 Inactive Part Number．スペ−サ; |
5N8-23118-00-00 |
from US $6.59 |
||
|
19
|
19
51Y-23103-10-00
Front Fork Assy (R.h)
フロントフオ−クアセンブリ ; ライト |
51Y-23103-10-00 |
— | ||
|
20
|
20
51Y-23136-01-00 Tube, Outer 2．チユ−ブ，アウタ ２; |
51Y-23136-01-00 |
US $110.66 |
||
| replacement | |||||
|
20
|
20
99999-02217-00
Tube, Outer 2
．チユ−ブ，アウタ ２; |
99999-02217-00 |
— | ||
|
21
|
21
22W-23153-L0-00 Ring, Snap．．リング，スナツプ; |
22W-23153-L0-00 |
from US $4.62 |
||
|
22
|
22
51Y-23145-00-00 Oil Seal．．オイルシ−ル; |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
22
|
22
2UJ-23145-00-00 Oil Seal．．オイルシ−ル; |
2UJ-23145-00-00 |
from US $11.66 |
||
|
23
|
23
51Y-23125-00-00 Metal, Slide 1．．メタル，スライド １; |
51Y-23125-00-00 |
from US $11.33 |
||
|
24
|
24
51Y-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
24
|
24
2UJ-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
2UJ-23144-00-00 |
from US $12.21 |
||
|
25
|
25
51Y-23110-00-93 Inner Tube 1Comp. 1．インナチユ−ブコンプリ−ト １; クロムメツキ |
51Y-23110-00-93 |
from US $156.22 |
||
|
26
|
26
51Y-23170-00-00 Cylinder, Frtfrk．シリンダコンプリ−ト，フロントフオ−ク; |
51Y-23170-00-00 |
US $37.93 |
||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
．シリンダコンプリ−ト，フロントフオ−ク; |
999-99999-99-00 |
— | ||
|
27
|
27
5A8-23173-00-00 Spindle, Taper．スピンドル，テ−パ; |
5A8-23173-00-00 |
from US $18.14 |
||
| replacement | |||||
|
27
|
27
1W1-23173-L0-00 Taper Spindle．スピンドル，テ−パ; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
28
|
28
51Y-23141-10-00
Spring, Front Fork
．スプリング，フロントフオ−ク; |
51Y-23141-10-00 |
— | ||
|
29
|
29
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレ−ンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
30
|
30
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $4.03 |
||
|
31
|
31
3J2-23114-00-00 O-Ring．Ｏ−リング; |
3J2-23114-00-00 |
from US $3.54 |
||
|
32
|
32
51Y-23111-10-00
Bolt, Cap
．ボルトキヤツプ; |
51Y-23111-10-00 |
— | ||
|
33
|
33
4H7-23119-00-00
Screw, Pan Head
．プラグ，ドレ−ン; |
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
33
|
33
98517-04006-00 Screw, Pan Head．プラグ，ドレ−ン; |
98517-04006-00 |
from US $1.28 |
||
|
33
|
33
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレ−ン; |
985-11040-06-00 |
— | ||
|
34
|
34
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト，ヘキサゴンソケツトヘツド; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
34
|
34
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3D8-23181-00-00 |
from US $5.41 |
||
|
35
|
35
583-23142-00-00
Seat, Spring Upper
．シ−ト，スプリングアツパ; |
583-23142-00-00 |
— | ||
|
36
|
36
1UJ-23128-00-00
Bolt, Axle Holder
．ボルト，アクスルホルダ; |
1UJ-23128-00-00 |
— | ||
|
37
|
37
95311-08600-00 Nut．ナツト; |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
37
|
37
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
37
|
37
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
|
38
|
38
90201-08544-00 Washer, Plate |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
38
|
38
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring．ワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
40
|
40
5N8-23118-00-00 Inactive Part Number．スペ−サ; |
5N8-23118-00-00 |
from US $6.59 |
||
|
41
|
41
2JK-23340-00-00
Under Bracket Comp
|
2JK-23340-00-00 |
— | ||
| replacement | |||||
|
41
|
41
51Y-23340-10-00
Under Bracketcomp
|
51Y-23340-10-00 |
— | ||
|
42
|
42
51Y-23128-00-00 Bolt,washer Basedボルト，アクスルホルダ; |
51Y-23128-00-00 |
from US $4.11 |
||
| replacement | |||||
|
42
|
42
958-24100-30-00 Bolt, Flange(3Xc)ボルト，アクスルホルダ; |
958-24100-30-00 |
from US $4.11 |
||
