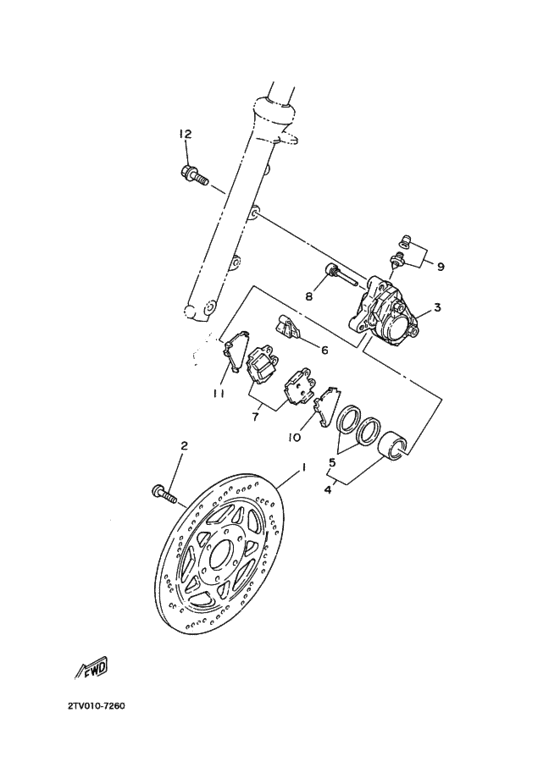

ﾌﾛﾝﾄﾌﾞﾚ-ｷｷﾔﾘﾊﾟ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-25831-00-35
Disc, Brake (Right)
デイスク，ブレ−キ ; ライト; シルバ− |
2TV-25831-00-35 |
— | ||
| replacement | |||||
|
1
|
1
2TV-25831-01-00 Disc, Brake (Right)デイスク，ブレ−キ ; ライト; シルバ− |
2TV-25831-01-00 |
US $352.01 |
||
|
2
|
2
901-09087-18-00
Bolt,hex. Socket But
|
901-09087-18-00 |
— | ||
| replacement | |||||
|
2
|
2
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
3
|
3
2TV-25810-00-00
Caliper Assy (Right)
キヤリパアセンブリ ; ライト |
2TV-25810-00-00 |
— | ||
| replacement | |||||
|
3
|
3
2TV-2580U-00-00
Caliper Assy (Right)
キヤリパアセンブリ ; ライト |
2TV-2580U-00-00 |
— | ||
|
4
|
4
51L-W0057-00-00 Piston Assembly, Caliper．ピストンアセンブリ，キヤリパ; |
51L-W0057-00-00 |
from US $136.92 |
||
|
5
|
5
51L-W0047-00-00 Caliper Seal Kit．．キヤリパシ−ルキツト; |
51L-W0047-00-00 |
from US $55.40 |
||
| replacement | |||||
|
5
|
5
51L-W0047-11-00 Caliper Seal Kit．．キヤリパシ−ルキツト; |
51L-W0047-11-00 |
from US $55.40 |
||
|
6
|
6
51L-25919-00-00 Support, Pad．サポ−ト，パツド; |
51L-25919-00-00 |
from US $27.34 |
||
|
7
|
7
51L-W0046-01-00 Brake Pad Kit 2．ブレ−キパツドキツト，リヤ; |
51L-W0046-01-00 |
from US $53.14 |
||
| replacement | |||||
|
7
|
7
4AP-W0046-00-00 Brake Pad Kit 2．ブレ−キパツドキツト，リヤ; |
4AP-W0046-00-00 |
from US $53.75 |
||
|
8
|
8
51L-25924-00-00 Pin, Pad．ピン，パツド; |
51L-25924-00-00 |
from US $17.91 |
||
| replacement | |||||
|
8
|
8
4FL-25924-00-00 Pin, Pad．ピン，パツド; |
4FL-25924-00-00 |
from US $22.95 |
||
|
9
|
9
51L-W0048-00-00
Bleed Screw Kit
．ブリ−ドスクリユキツト; |
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
9
|
9
15B-W0048-00-00 Bleed Screw Kit．ブリ−ドスクリユキツト; |
15B-W0048-00-00 |
from US $9.29 |
||
|
10
|
10
51L-25827-00-00 Shim, Caliper．シム，キヤリパ; |
51L-25827-00-00 |
from US $17.43 |
||
| replacements | |||||
|
10
|
10
4BP-25827-00-00 Shim, Caliper．シム，キヤリパ; |
4BP-25827-00-00 |
from US $17.71 |
||
|
10
|
10
47X-25827-00-00 Shim, Caliper．シム，キヤリパ; |
47X-25827-00-00 |
from US $17.43 |
||
|
11
|
11
51L-25827-10-00 Shim, Caliper．シム，キヤリパ; |
51L-25827-10-00 |
from US $17.43 |
||
| replacements | |||||
|
11
|
11
4BP-25827-00-00 Shim, Caliper．シム，キヤリパ; |
4BP-25827-00-00 |
from US $17.71 |
||
|
11
|
11
47X-25827-10-00 Shim, Caliper．シム，キヤリパ; |
47X-25827-10-00 |
from US $16.33 |
||
|
12
|
12
90105-10308-00 Bolt, Washer Based |
90105-10308-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
