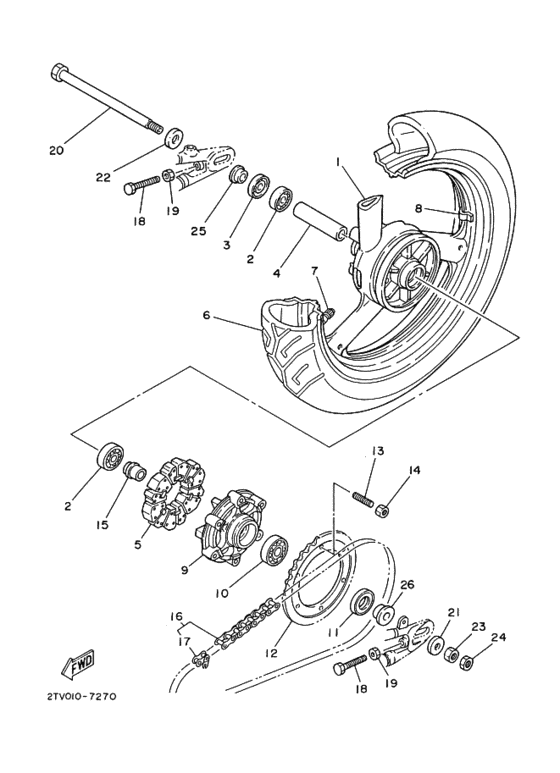

ﾘﾔﾎｲ-ﾙ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KT-25338-21-35
Cast Wheel, Rear
シルバ− |
1KT-25338-21-35 |
— | ||
|
2
|
2
93306-20223-00 Bearingベアリング ; ６２０２−２１Ｚ; ＫＯＹＯ |
93306-20223-00 |
US $14.88 |
||
| replacement | |||||
|
2
|
2
93306-20226-00 Bearingベアリング ; ６２０２−２１Ｚ; ＫＯＹＯ |
93306-20226-00 |
from US $15.26 |
||
|
3
|
3
93102-22216-00 Oil Sealオイルシ−ル; |
93102-22216-00 |
from US $7.36 |
||
|
4
|
4
90560-15277-00 Spacer |
90560-15277-00 |
US $12.57 |
||
|
5
|
5
1KT-25364-00-00 Damper |
1KT-25364-00-00 |
from US $11.18 |
||
|
6
|
6
94111-177R1-00
Tire (110/80-1757S)
タイヤ ; １１０／８０−１７ ５７Ｓ; ＵＲ ヨコハマ |
94111-177R1-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
タイヤ ; １１０／８０−１７ ５７Ｓ; ＵＲ ヨコハマ |
999-99999-99-00 |
— | ||
|
6
|
6
94111-177R3-00
Tire (110/80-1757S)
タイヤ ; １１０／８０−１７ ５７Ｓ; ＵＲ ダンロツプ |
94111-177R3-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
タイヤ ; １１０／８０−１７ ５７Ｓ; ＵＲ ダンロツプ |
999-99999-99-00 |
— | ||
|
7
|
7
939-00000-22-00
Valve, Rim (Tr413)
バルブ，リム; ＵＲ タイヘイヨウ |
939-00000-22-00 |
— | ||
| replacement | |||||
|
7
|
7
939-00000-30-00 Valve, Rim (Tr412)バルブ，リム; ＵＲ タイヘイヨウ |
939-00000-30-00 |
from US $7.65 |
||
|
8
|
8
29L-25398-00-00
Balancer, Wheel (10G)
バランサ，ホイ−ル ; １０Ｇ; ＵＮ |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
8
|
8
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; １０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $8.46 |
||
|
8
|
8
29L-25398-10-00
Balancer, Wheel (20G)
バランサ，ホイ−ル ; ２０Ｇ; ＵＮ |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
8
|
8
5MT-25398-10-00 Balancer, Wheel (20G)バランサ，ホイ−ル ; ２０Ｇ; ＵＮ |
5MT-25398-10-00 |
from US $8.46 |
||
|
8
|
8
29L-25398-20-00 Balancer, Wheel (30G)バランサ，ホイ−ル ; ３０Ｇ; ＵＮ |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
8
|
8
5MT-25398-20-00 Balancer, Wheel (30G)バランサ，ホイ−ル ; ３０Ｇ; ＵＮ |
5MT-25398-20-00 |
from US $8.46 |
||
|
9
|
9
1KT-25366-02-00 Clutch, Hubツヤケシ クロ |
1KT-25366-02-00 |
from US $193.75 |
||
| replacement | |||||
|
9
|
9
1KT-25366-03-00 Clutch, Hubツヤケシ クロ |
1KT-25366-03-00 |
from US $193.75 |
||
|
10
|
10
933-06204-46-00 Bearing |
933-06204-46-00 |
from US $15.02 |
||
|
11
|
11
93102-28022-00 Oil Sealオイルシ−ル; |
93102-28022-00 |
from US $7.07 |
||
|
12
|
12
2TV-25443-00-33
Sprocket, Driven (43T)
スプロケツト，ドリブン ; ４３Ｔ |
2TV-25443-00-33 |
— | ||
|
13
|
13
90116-08498-00 Bolt, Stud |
90116-08498-00 |
from US $5.29 |
||
| replacement | |||||
|
13
|
13
90116-08552-00 Bolt, Stud |
90116-08552-00 |
from US $7.65 |
||
|
14
|
14
95611-08200-00 Nut, Self-Lockingナツト，セルフロツキング; |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
15
|
15
90387-153N3-00
Collar
|
90387-153N3-00 |
— | ||
|
16
|
16
94571-07132-00
Chain (Rk428Sho)
チエ−ン ; ＲＫ４２８ＳＨ０; タカサゴ |
94571-07132-00 |
— | ||
| replacement | |||||
|
16
|
16
9Y5-80071-31-00
Chain
チエ−ン ; ＲＫ４２８ＳＨ０; タカサゴ |
9Y5-80071-31-00 |
— | ||
|
17
|
17
94671-07031-00
Joint, Chain
．ジヨイント，チエン; |
94671-07031-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
．ジヨイント，チエン; |
999-99999-99-00 |
— | ||
|
18
|
18
90101-08475-00 Bolt |
90101-08475-00 |
from US $3.42 |
||
| replacements | |||||
|
18
|
18
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
18
|
18
90101-08777-00 Bolt |
90101-08777-00 |
from US $2.02 |
||
|
19
|
19
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
20
|
20
2TV-25381-00-00
Axle, Wheel
|
2TV-25381-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
90560-14334-00
Spacer
|
90560-14334-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90560-15333-00
Spacer
|
90560-15333-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90170-14349-00 Nut |
90170-14349-00 |
from US $7.37 |
||
|
24
|
24
90170-14350-00 Nut |
90170-14350-00 |
from US $4.53 |
||
| replacement | |||||
|
24
|
24
953-07147-00-00
Nut
|
953-07147-00-00 |
— | ||
|
25
|
25
90387-153N7-00 Collar |
90387-153N7-00 |
from US $8.45 |
||
|
26
|
26
90387-153N8-00 Collar |
90387-153N8-00 |
from US $4.28 |
||
