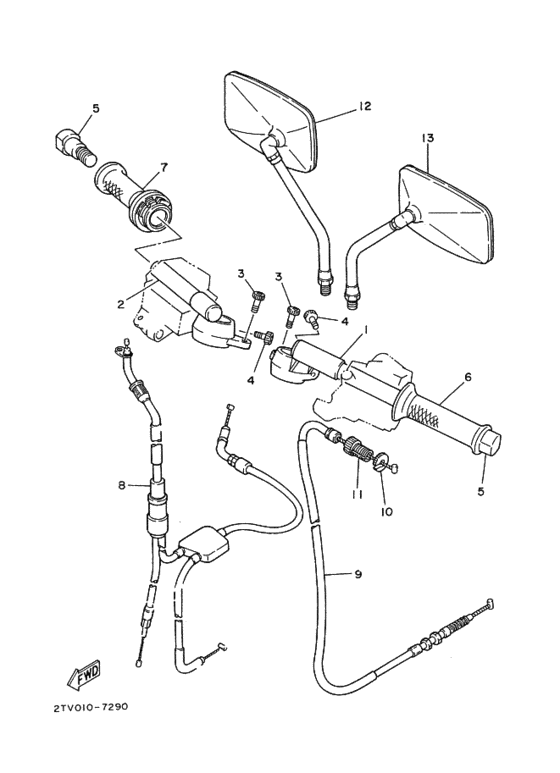

ｽﾃｱﾘﾝｸﾞﾊﾝﾄﾞﾙ.ｹ-ﾌﾞﾙ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-26121-00-00
Handlebar (Left)
ハンドルバ− ; レフト |
2TV-26121-00-00 |
— | ||
| replacement | |||||
|
1
|
1
2TV-26121-01-00
Handlebar (Left)
ハンドルバ− ; レフト |
2TV-26121-01-00 |
— | ||
|
2
|
2
2TV-26122-00-00
Handlebar (Right)
ハンドルバ− ; ライト |
2TV-26122-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2TV-26122-01-00
Handlebar (Right)
ハンドルバ− ; ライト |
2TV-26122-01-00 |
— | ||
|
3
|
3
90110-06114-00 Bolt, Hexagon Socket Head |
90110-06114-00 |
from US $3.04 |
||
|
4
|
4
90110-08163-00 Bolt, Hexagon Socket Head |
90110-08163-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
5
|
5
2TV-26246-00-00
End, Grip
|
2TV-26246-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
47X-26241-00-00 Gripグリツプ ; レフト |
47X-26241-00-00 |
from US $15.58 |
||
|
7
|
7
47X-26240-00-00 Grip Assembly |
47X-26240-00-00 |
from US $48.91 |
||
|
8
|
8
2TV-26260-00-00
Cable Assy, Throttle & Pump
ケ−ブルアセンブリ，スロツトルアンドポンプ; |
2TV-26260-00-00 |
— | ||
|
9
|
9
2TV-26335-00-00 Cable, clutch |
2TV-26335-00-00 |
US $19.78 |
||
|
10
|
10
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.74 |
||
| replacements | |||||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
1JK-26290-00-00 Mirror Asyバツクミラ−アセンブリ ; ライト |
1JK-26290-00-00 |
from US $59.82 |
||
| replacement | |||||
|
12
|
12
1JK-26290-30-00 Rear View Mirror Assy (Right)バツクミラ−アセンブリ ; ライト |
1JK-26290-30-00 |
from US $59.82 |
||
|
13
|
13
1JK-26290-10-00 Mirror Asyバツクミラ−アセンブリ ; レフト |
1JK-26290-10-00 |
from US $59.82 |
||
| replacement | |||||
|
13
|
13
1JK-26290-20-00 Rear View Mirror Assy (Left)バツクミラ−アセンブリ ; レフト |
1JK-26290-20-00 |
from US $59.82 |
||
