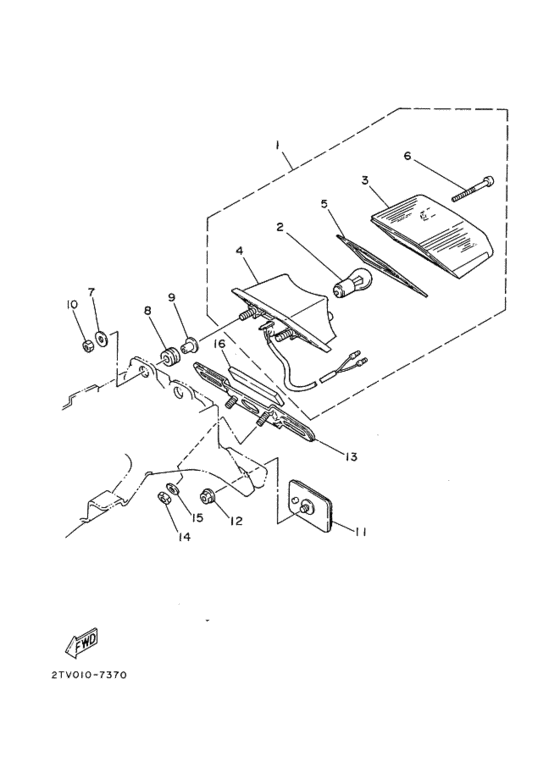

Taillight Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1JK-84710-00-00
Taillight Unit Assy
|
1JK-84710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
2YK-84710-00-00
Taillight Unit Assy
|
2YK-84710-00-00 |
— | ||
|
2
|
2
31L-84714-00-00
Bulb (12V-21/5W)
．バルブ ; １２Ｖ−２１／５Ｗ |
31L-84714-00-00 |
— | ||
| replacements | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-50-00 |
from US $5.28 |
||
|
2
|
2
1A2-84714-41-00
Bulb
．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-41-00 |
— | ||
|
3
|
3
34Y-84721-E0-00 Lens, Taillight．レンズ，テ−ルライト; |
34Y-84721-E0-00 |
US $75.85 |
||
|
4
|
4
1JK-84720-00-00
Base Assy
．ベ−ス アセンブリ; |
1JK-84720-00-00 |
— | ||
|
5
|
5
34Y-84723-E0-00 Gasket, Tail Lens．ガスケツト，テ−ルレンズ; |
34Y-84723-E0-00 |
US $9.49 |
||
| replacement | |||||
|
5
|
5
1VJ-14462-00-00 Seal．ガスケツト，テ−ルレンズ; |
1VJ-14462-00-00 |
from US $11.12 |
||
|
6
|
6
97706-40630-00 Screw, Tapping(56J)．スクリユ，タツピング; |
97706-40630-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
97707-40630-00 Screw, Tapping(3Ah)．スクリユ，タツピング; |
97707-40630-00 |
from US $2.50 |
||
|
7
|
7
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
8
|
8
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
9
|
9
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
9
|
9
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
10
|
10
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
11
|
11
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
11
|
11
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
12
|
12
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.18 |
||
| replacement | |||||
|
12
|
12
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
13
|
13
1KH-84751-00-90 Bracket, Licenseユニクロ （ブラツク） |
1KH-84751-00-90 |
from US $16.01 |
||
| replacement | |||||
|
13
|
13
999-99023-51-00 Bracket, Licenseユニクロ （ブラツク） |
999-99023-51-00 |
from US $13.07 |
||
|
14
|
14
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
15
|
15
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
16
|
16
34M-21639-00-00
Damper 2
|
34M-21639-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
