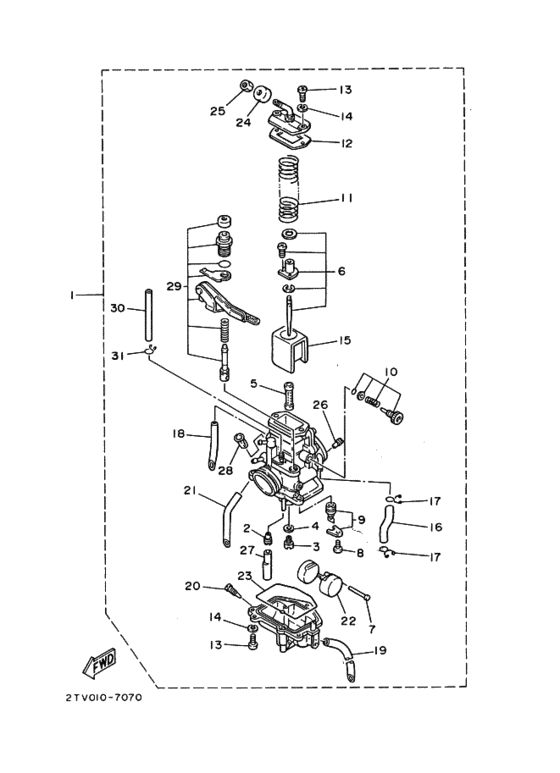

Carburetor Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Melting Green (MELG; 00T8)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- B
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-14101-00-00
Carburetor Assy 1
|
2TV-14101-00-00 |
— | ||
|
2
|
2
193-14142-22-00 Jet, Pilot (#22.5)．ジエツト，パイロツト ; ＃ ２２．５ |
193-14142-22-00 |
from US $11.54 |
||
|
3
|
3
137-14143-35-00 Jet, Main #175．ジエツト，メイン ; ＃１７５ |
137-14143-35-00 |
from US $9.47 |
||
|
4
|
4
137-14153-00-00 Washer,main Jet．ワツシヤ，メインジエツト; |
137-14153-00-00 |
from US $2.98 |
||
|
5
|
5
1KT-14141-48-00
Nozzle, Main
．ノズル，メイン; |
1KT-14141-48-00 |
— | ||
|
6
|
6
2TV-1490J-00-00 Needle Set．ニ−ドルセツト; |
2TV-1490J-00-00 |
US $100.99 |
||
|
7
|
7
537-14186-00-00 Pin, Float．ピン，フロ−ト; |
537-14186-00-00 |
from US $2.13 |
||
|
8
|
8
985-02040-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-02040-08-00 |
— | ||
| replacement | |||||
|
8
|
8
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.39 |
||
|
9
|
9
2MA-14107-28-00 Needle Valve Set．ニ−ドルバルブセツト; |
2MA-14107-28-00 |
from US $60.19 |
||
|
10
|
10
1KT-14103-00-00 Throttle Screw Set．スロツトルスクリユセツト; |
1KT-14103-00-00 |
US $40.07 |
||
| replacement | |||||
|
10
|
10
1KT-14103-02-00 Throttle Screw Set．スロツトルスクリユセツト; |
1KT-14103-02-00 |
US $40.07 |
||
|
11
|
11
2TV-14131-00-00
Spring, Throttle Valve
．スプリング，スロツトルバルブ; |
2TV-14131-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
．スプリング，スロツトルバルブ; |
999-99999-99-00 |
— | ||
|
12
|
12
1KT-14198-00-00 Gasket．ガスケツト; |
1KT-14198-00-00 |
US $10.34 |
||
|
13
|
13
98502-04014-00 Screw, Pan Head．スクリユ，パンヘツド; |
98502-04014-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98580-04014-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-04014-00 |
from US $1.42 |
||
|
14
|
14
929-02041-00-00
Washer, Spring
．ワツシヤ，ウエイブ; |
929-02041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring．ワツシヤ，ウエイブ; |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
2TV-14112-25-00
Valve, Throttle 1
．バルブ，スロツトル １; |
2TV-14112-25-00 |
— | ||
|
16
|
16
1KT-14149-00-00
Pipe
．パイプ; |
1KT-14149-00-00 |
— | ||
| replacement | |||||
|
16
|
16
90445-075G4-00 Hose (L570)．パイプ; |
90445-075G4-00 |
from US $7.79 |
||
|
17
|
17
8A7-14139-00-00 Clip, Pipe．クリツプ，パイプ; |
8A7-14139-00-00 |
from US $3.74 |
||
|
18
|
18
1KT-14197-00-00 Pipe．パイプ; |
1KT-14197-00-00 |
US $4.82 |
||
| replacement | |||||
|
18
|
18
89A-14987-00-00 Hose．パイプ; |
89A-14987-00-00 |
from US $4.53 |
||
|
19
|
19
3X3-14197-00-00
Pipe
．パイプ; |
3X3-14197-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3XV-14348-20-00 Pipe 1．パイプ; |
3XV-14348-20-00 |
from US $21.10 |
||
|
20
|
20
12R-14191-00-00 Plug, Drain．プラグ，ドレ−ン; |
12R-14191-00-00 |
from US $8.64 |
||
|
21
|
21
1KT-14197-01-00 Pipe．パイプ; |
1KT-14197-01-00 |
US $10.77 |
||
|
22
|
22
2MA-14185-00-00 Float．フロ−ト; |
2MA-14185-00-00 |
US $74.19 |
||
|
23
|
23
1KT-14147-00-00 O-Ring．Ｏ−リング; |
1KT-14147-00-00 |
from US $13.75 |
||
|
24
|
24
3X3-14169-00-00 Cap．キヤツプ; |
3X3-14169-00-00 |
from US $13.60 |
||
|
25
|
25
127-14161-00-00 Nut, Cable Adjusting．ナツト，ケ−ブルアジヤステイング; |
127-14161-00-00 |
from US $4.96 |
||
|
26
|
26
239-14172-12-00 Pilot Jet, Air (1.2)．パイロツトジエツト，エア ; １．２ |
239-14172-12-00 |
from US $6.88 |
||
|
27
|
27
1KT-14148-00-00 Pipe．パイプ; |
1KT-14148-00-00 |
US $17.43 |
||
| replacement | |||||
|
27
|
27
1KT-14298-00-00 Pipe．パイプ; |
1KT-14298-00-00 |
US $12.89 |
||
|
28
|
28
1KT-14994-00-00 Net, Filter．ネツト，フイルタ; |
1KT-14994-00-00 |
from US $25.22 |
||
|
29
|
29
2TV-1410A-00-00
Starter Set
．スタ−タセツト; |
2TV-1410A-00-00 |
— | ||
|
30
|
30
90445-09531-00
Hose
．ホ−ス; |
90445-09531-00 |
— | ||
| replacement | |||||
|
30
|
30
90445-090G9-00 Hose (L685)．ホ−ス; |
90445-090G9-00 |
from US $16.86 |
||
|
31
|
31
90467-08003-00 Clip 101235600．クリツプ; |
90467-08003-00 |
from US $1.81 |
||
