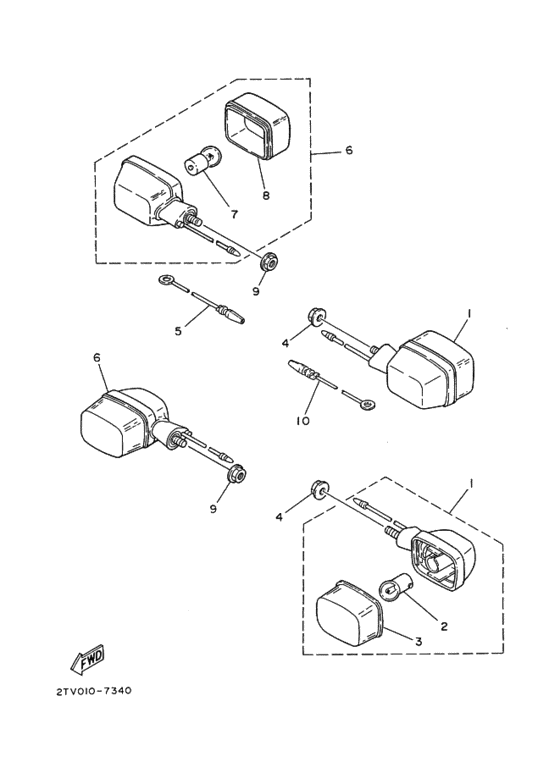

Flasher light Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Melting Green (MELG; 00T8)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- B
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-83310-01-00 Front Flasher Light Assy 1フロントフラツシヤライトアセンブリ １; |
2TV-83310-01-00 |
US $56.09 |
||
| replacement | |||||
|
1
|
1
3HM-83310-00-00 Front Flasher Light Assy 1フロントフラツシヤライトアセンブリ １; |
3HM-83310-00-00 |
US $56.09 |
||
|
2
|
2
851-84744-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
2
|
2
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
3
|
3
2TV-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
2TV-83312-00-00 |
US $9.92 |
||
|
4
|
4
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
4
|
4
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
5
|
5
1H2-83346-00-00
Cord (1M1-82519-00)
|
1H2-83346-00-00 |
— | ||
|
6
|
6
2TV-83320-01-00 Front Flasher Light Assy 2フロントフラツシヤライトアセンブリ ２; |
2TV-83320-01-00 |
US $56.09 |
||
| replacement | |||||
|
6
|
6
3HM-83310-00-00 Front Flasher Light Assy 1フロントフラツシヤライトアセンブリ ２; |
3HM-83310-00-00 |
US $56.09 |
||
|
7
|
7
851-84744-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
7
|
7
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
8
|
8
2TV-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
2TV-83312-00-00 |
US $9.92 |
||
|
9
|
9
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
9
|
9
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
9
|
9
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
10
|
10
1H2-83346-00-00
Cord (1M1-82519-00)
|
1H2-83346-00-00 |
— | ||
