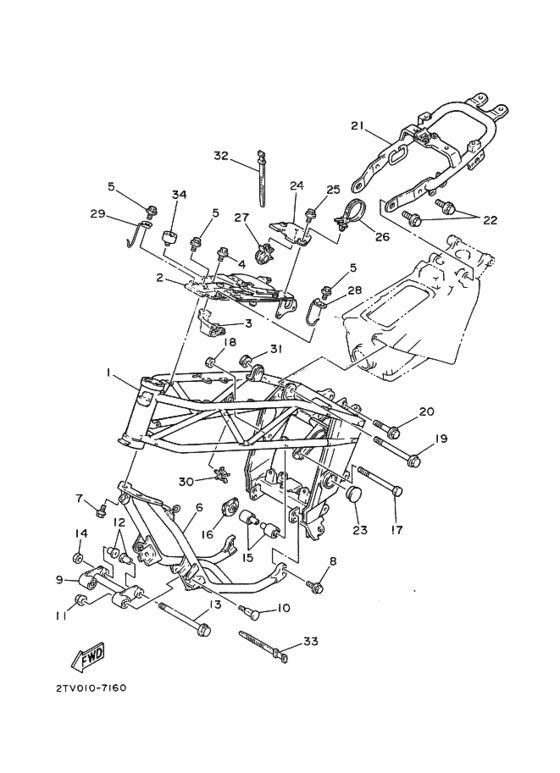

Frame Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Melting Green (MELG; 00T8)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- B
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-21110-00-00
Frame Comp
|
2TV-21110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2TV-21240-00-00
Box Comp
|
2TV-21240-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
2TV-2137G-00-00
Stay 2
|
2TV-2137G-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
5
|
5
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
6
|
6
2TV-21140-00-00
Down Tube Comp
|
2TV-21140-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90105-08509-00
Bolt, Flange
|
90105-08509-00 |
— | ||
|
8
|
8
95026-08020-00 Bolt, Flangeボルト，フランジ; |
95026-08020-00 |
from US $1.28 |
||
| replacements | |||||
|
8
|
8
90105-081A1-00 Bolt, Washer Based(3Jp)ボルト，フランジ; |
90105-081A1-00 |
from US $2.77 |
||
|
8
|
8
95027-08020-00 Bolt, Flangeボルト，フランジ; |
95027-08020-00 |
from US $1.39 |
||
|
9
|
9
2TV-21410-00-00
Engine Bracket Comp
|
2TV-21410-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
2TV-21481-00-00
Bolt, Engine Mounting 1
|
2TV-21481-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
95706-10500-00 Nut, Flange (1Kg) |
95706-10500-00 |
from US $1.21 |
||
| replacements | |||||
|
11
|
11
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
11
|
11
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
|
12
|
12
2GX-21459-00-00 Collar |
2GX-21459-00-00 |
from US $6.75 |
||
| replacement | |||||
|
12
|
12
90387-08664-00 Collar |
90387-08664-00 |
from US $6.53 |
||
|
13
|
13
90105-08206-00
Bolt, Washer Based
|
90105-08206-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
95611-08200-00 Nut, Self-Lockingナツト，セルフロツキング; |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
15
|
15
2TV-21486-00-00
Damper 2
|
2TV-21486-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2TV-2140A-00-00
Damper, Stopper
ダンパ，ストツパ; |
2TV-2140A-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
ダンパ，ストツパ; |
999-99999-99-00 |
— | ||
|
17
|
17
90101-08538-00 Bolt |
90101-08538-00 |
from US $7.37 |
||
|
18
|
18
95611-08200-00 Nut, Self-Lockingナツト，セルフロツキング; |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
19
|
19
90105-10492-00
Bolt, Flange
|
90105-10492-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90105-10491-00 Bolt, Flange |
90105-10491-00 |
US $5.67 |
||
|
21
|
21
2TV-21190-00-00
Rear Frame Comp
|
2TV-21190-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90105-10490-00 Bolt, Flange |
90105-10490-00 |
US $4.68 |
||
| replacement | |||||
|
22
|
22
95817-10022-00 Bolt, Flange(4Bd) |
95817-10022-00 |
from US $4.68 |
||
|
23
|
23
1HX-2135F-00-00 Cover |
1HX-2135F-00-00 |
US $8.10 |
||
| replacement | |||||
|
23
|
23
1HX-2135F-10-00 Cover |
1HX-2135F-10-00 |
from US $5.17 |
||
|
24
|
24
2TV-2116A-00-00
Stay 1
カバ− １; |
2TV-2116A-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
カバ− １; |
999-99999-99-00 |
— | ||
|
25
|
25
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
26
|
26
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
27
|
27
90464-16113-00
Clamp
|
90464-16113-00 |
— | ||
|
28
|
28
90462-10169-00
Clamp
|
90462-10169-00 |
— | ||
|
29
|
29
90462-10170-00
Clamp
|
90462-10170-00 |
— | ||
|
30
|
30
90464-09111-00
Clamp
|
90464-09111-00 |
— | ||
|
31
|
31
90338-24204-00 Plug |
90338-24204-00 |
from US $1.84 |
||
|
32
|
32
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
33
|
33
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
34
|
34
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $8.05 |
||
