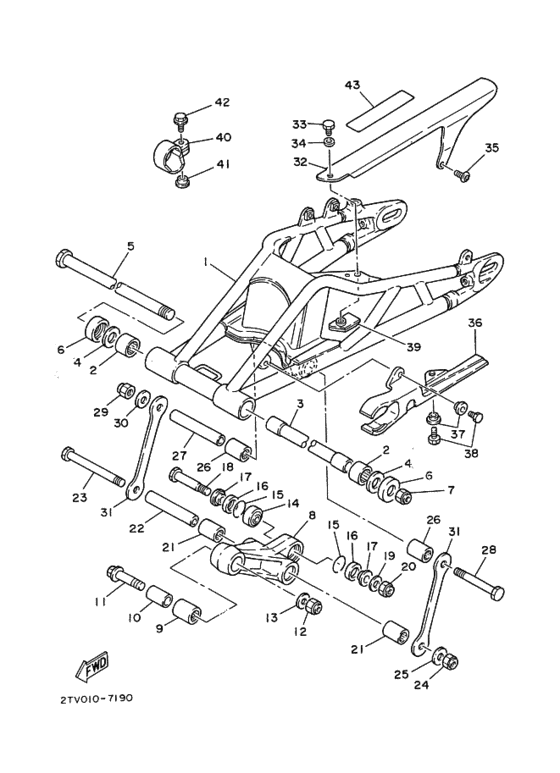

ﾘﾔｱ-ﾑ Diagram Yamaha SDR 200
- Year
- 1987
- Colour
- Melting Green (MELG; 00T8)
- Model code
- 2TV
- Sales region
- Japan (010)
- Engine Capacity
- 200
- Color Variant
- B
- Model
- SDR200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TV-22110-00-00
Rear Arm Comp
|
2TV-22110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
933-17222-04-00 Bearing |
933-17222-04-00 |
from US $11.23 |
||
|
3
|
3
90380-16166-00
Bush, Solid
|
90380-16166-00 |
— | ||
|
4
|
4
322-22128-01-00 Cover, Thrust 1 |
322-22128-01-00 |
from US $23.66 |
||
|
5
|
5
5Y1-22141-00-00 Shaft, Pivot |
5Y1-22141-00-00 |
from US $89.95 |
||
| replacement | |||||
|
5
|
5
5X6-22141-01-00 Shaft, Pivot |
5X6-22141-01-00 |
from US $119.92 |
||
|
6
|
6
90201-165L1-00 Washer, Plate |
90201-165L1-00 |
US $7.65 |
||
|
7
|
7
90185-16127-00 Nut, Self-Locking |
90185-16127-00 |
from US $6.94 |
||
| replacements | |||||
|
7
|
7
90185-16002-00 Nut, Self-Locking |
90185-16002-00 |
from US $6.94 |
||
|
7
|
7
95617-16100-00 Nut, U |
95617-16100-00 |
from US $14.57 |
||
|
8
|
8
2TV-2217A-00-00
Arm, Relay
|
2TV-2217A-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
933-17420-60-00 Bearing |
933-17420-60-00 |
from US $22.71 |
||
|
10
|
10
90387-107T3-00
Collar
|
90387-107T3-00 |
— | ||
|
11
|
11
90105-10376-00 Bolt, Flange |
90105-10376-00 |
from US $6.23 |
||
|
12
|
12
95611-10100-00 Nut, Uナツト，Ｕ; |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
12
|
12
95614-10100-00 Nut, Uナツト，Ｕ; |
95614-10100-00 |
from US $5.68 |
||
|
13
|
13
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
14
|
14
93399-99919-00 Bearing |
93399-99919-00 |
from US $81.67 |
||
|
15
|
15
93440-30113-00 Circlip |
93440-30113-00 |
from US $1.70 |
||
|
16
|
16
93101-16131-00 Oil Sealオイルシ−ル; |
93101-16131-00 |
from US $9.71 |
||
|
17
|
17
90387-124L0-00
Collar
|
90387-124L0-00 |
— | ||
|
18
|
18
90101-10659-00 Bolt |
90101-10659-00 |
from US $6.11 |
||
|
19
|
19
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
20
|
20
95611-10100-00 Nut, Uナツト，Ｕ; |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
20
|
20
95614-10100-00 Nut, Uナツト，Ｕ; |
95614-10100-00 |
from US $5.68 |
||
|
21
|
21
93317-41761-00 Bearing |
93317-41761-00 |
from US $20.11 |
||
|
22
|
22
90387-127T4-00
Collar
|
90387-127T4-00 |
— | ||
|
23
|
23
901-01126-73-00 Bolt |
901-01126-73-00 |
from US $9.57 |
||
|
24
|
24
95611-12100-00 Nut, Uナツト，Ｕ; |
95611-12100-00 |
from US $3.12 |
||
| replacement | |||||
|
24
|
24
95617-12100-00 Nut, Uナツト，Ｕ; |
95617-12100-00 |
from US $3.12 |
||
|
25
|
25
90201-120E8-00 Washer, Plate |
90201-120E8-00 |
from US $5.68 |
||
|
26
|
26
93317-41761-00 Bearing |
93317-41761-00 |
from US $20.11 |
||
|
27
|
27
90387-127T4-00
Collar
|
90387-127T4-00 |
— | ||
|
28
|
28
901-01126-73-00 Bolt |
901-01126-73-00 |
from US $9.57 |
||
|
29
|
29
95611-12100-00 Nut, Uナツト，Ｕ; |
95611-12100-00 |
from US $3.12 |
||
| replacement | |||||
|
29
|
29
95617-12100-00 Nut, Uナツト，Ｕ; |
95617-12100-00 |
from US $3.12 |
||
|
30
|
30
90201-120E8-00 Washer, Plate |
90201-120E8-00 |
from US $5.68 |
||
|
31
|
31
2TV-2217M-00-00 Arm 1 |
2TV-2217M-00-00 |
US $23.80 |
||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
2TV-22311-00-00
Case, Chain
|
2TV-22311-00-00 |
— | ||
| replacement | |||||
|
32
|
32
3XV-22311-00-00
Case, Chain
|
3XV-22311-00-00 |
— | ||
|
33
|
33
97001-06008-00 Bolt, Hex |
97001-06008-00 |
from US $2.09 |
||
| replacement | |||||
|
33
|
33
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
34
|
34
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
35
|
35
90149-06215-00 Screw |
90149-06215-00 |
from US $3.54 |
||
| replacements | |||||
|
35
|
35
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
35
|
35
901-49062-64-00
Screw(1Xl)
|
901-49062-64-00 |
— | ||
|
36
|
36
2TV-22151-00-00
Seal, Guard
|
2TV-22151-00-00 |
— | ||
|
37
|
37
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
37
|
37
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
38
|
38
98001-06012-00 Bolt |
98001-06012-00 |
from US $0.11 |
||
|
39
|
39
2TV-22152-00-00
Seal, Guard
|
2TV-22152-00-00 |
— | ||
|
40
|
40
2TV-22153-00-00
Guard, Chain
|
2TV-22153-00-00 |
— | ||
|
41
|
41
90179-06463-00
Nut
|
90179-06463-00 |
— | ||
|
42
|
42
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
42
|
42
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
43
|
43
2TV-21668-00-00
Label, Tire
|
2TV-21668-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
