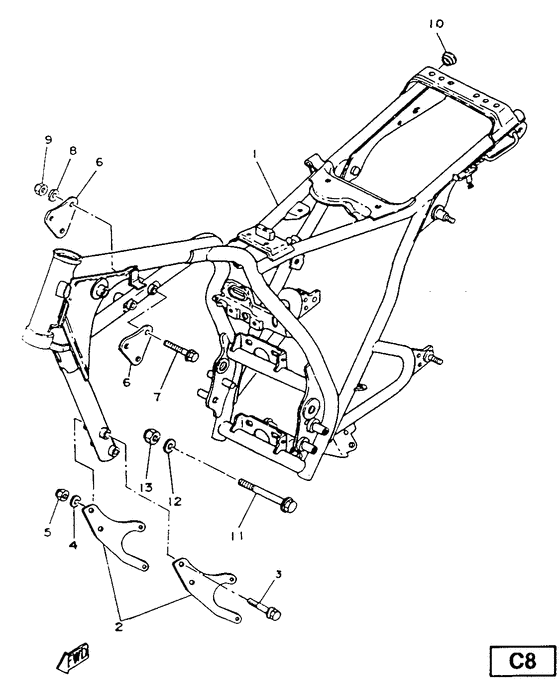

Frame Diagram Yamaha SR125
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2JW-F1110-00-33
Frame Comp
Yamaha black |
2JW-F1110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Yamaha black |
999-99999-99-00 |
— | ||
|
02
|
02
2JW-F1316-00-00
Stay, Engine 2
|
2JW-F1316-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
04
|
04
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
04
|
04
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
05
|
05
90185-08816-00
Nut, Self-Locking
|
90185-08816-00 |
— | ||
|
06
|
06
2JW-F1315-00-00
Stay, Engine 1
|
2JW-F1315-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
08
|
08
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
08
|
08
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
09
|
09
90185-08816-00
Nut, Self-Locking
|
90185-08816-00 |
— | ||
|
10
|
10
90480-18807-00
Grommet
|
90480-18807-00 |
— | ||
|
11
|
11
95811-08115-00 Bolt, Flange |
95811-08115-00 |
from US $4.52 |
||
| replacement | |||||
|
11
|
11
95817-08115-00 Bolt, Flange |
95817-08115-00 |
from US $6.38 |
||
|
12
|
12
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
13
|
13
90185-08816-00
Nut, Self-Locking
|
90185-08816-00 |
— | ||
