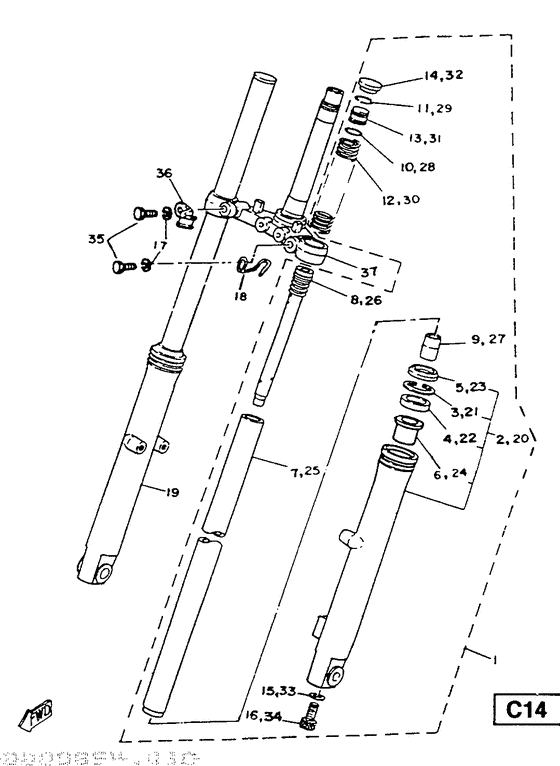

Front fork Diagram Yamaha SR125
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-F3102-20-00
Front Fork Assy (L.h)
|
21L-F3102-20-00 |
— | ||
|
02
|
02
21L-F3106-20-35
Outer Tube Comp
Plata |
21L-F3106-20-35 |
— | ||
|
03
|
03
21L-F3153-20-00
Ring, Snap
|
21L-F3153-20-00 |
— | ||
|
04
|
04
93110-32016-00 Oil Seal |
93110-32016-00 |
US $15.73 |
||
|
05
|
05
21L-23144-00-00
Seal, Dust
|
21L-23144-00-00 |
— | ||
|
06
|
06
21L-23125-00-00
Metal, Slide 1
|
21L-23125-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
21L-F3110-00-00
Inner Tube Comp.1
|
21L-F3110-00-00 |
— | ||
| replacement | |||||
|
07
|
07
21L-F3110-00-30
Inner Tube Comp.1
|
21L-F3110-00-30 |
— | ||
|
08
|
08
21L-F3170-20-00
Cylinder Comp., Front Fork
|
21L-F3170-20-00 |
— | ||
|
09
|
09
21L-F3173-20-00
Spindle, Taper
|
21L-F3173-20-00 |
— | ||
|
10
|
10
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
10
|
10
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
11
|
11
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
12
|
12
21L-F3141-20-00
Spring, Front Fork
|
21L-F3141-20-00 |
— | ||
|
13
|
13
21L-F3111-20-00
Bolt, Cap
|
21L-F3111-20-00 |
— | ||
| replacement | |||||
|
13
|
13
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
14
|
14
21L-F3154-00-00
Plug, Inner Tube
|
21L-F3154-00-00 |
— | ||
|
15
|
15
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
15
|
15
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
15
|
15
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
16
|
16
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
17
|
17
92906-10100-00 Washer, Spring |
92906-10100-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
92907-10100-00 Washer, Spring |
92907-10100-00 |
from US $1.39 |
||
|
18
|
18
2JW-F3317-00-00
Holder, Cable
|
2JW-F3317-00-00 |
— | ||
|
19
|
19
21L-F3103-20-00
Front Fork Assy (R.h)
|
21L-F3103-20-00 |
— | ||
|
20
|
20
21L-F3107-20-35
Outer Tube Comp. (R.h)
Plata |
21L-F3107-20-35 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
Plata |
999-99999-99-00 |
— | ||
|
21
|
21
21L-F3153-20-00
Ring, Snap
|
21L-F3153-20-00 |
— | ||
|
22
|
22
93110-32016-00 Oil Seal |
93110-32016-00 |
US $15.73 |
||
|
23
|
23
21L-23144-00-00
Seal, Dust
|
21L-23144-00-00 |
— | ||
|
24
|
24
21L-23125-00-00
Metal, Slide 1
|
21L-23125-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
21L-F3110-00-00
Inner Tube Comp.1
|
21L-F3110-00-00 |
— | ||
| replacement | |||||
|
25
|
25
21L-F3110-00-30
Inner Tube Comp.1
|
21L-F3110-00-30 |
— | ||
|
26
|
26
21L-F3170-20-00
Cylinder Comp., Front Fork
|
21L-F3170-20-00 |
— | ||
|
27
|
27
21L-F3173-20-00
Spindle, Taper
|
21L-F3173-20-00 |
— | ||
|
28
|
28
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
28
|
28
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
29
|
29
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
30
|
30
21L-F3141-20-00
Spring, Front Fork
|
21L-F3141-20-00 |
— | ||
|
31
|
31
21L-F3111-20-00
Bolt, Cap
|
21L-F3111-20-00 |
— | ||
| replacement | |||||
|
31
|
31
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
32
|
32
21L-F3154-00-00
Plug, Inner Tube
|
21L-F3154-00-00 |
— | ||
|
33
|
33
90201-081E6-00 Gasket |
90201-081E6-00 |
US $1.70 |
||
| replacements | |||||
|
33
|
33
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
33
|
33
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
34
|
34
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
35
|
35
20L-F3346-01-00
Bolt 1
|
20L-F3346-01-00 |
— | ||
|
36
|
36
21L-F3318-00-00
Wire, Holder 1
|
21L-F3318-00-00 |
— | ||
|
37
|
37
2JW-F3340-00-33
Under Bracket Comp
Yamaha black |
2JW-F3340-00-33 |
— | ||
| replacement | |||||
|
37
|
37
3Y8-23340-G0-R4
Under Bracket
Yamaha black |
3Y8-23340-G0-R4 |
— | ||
