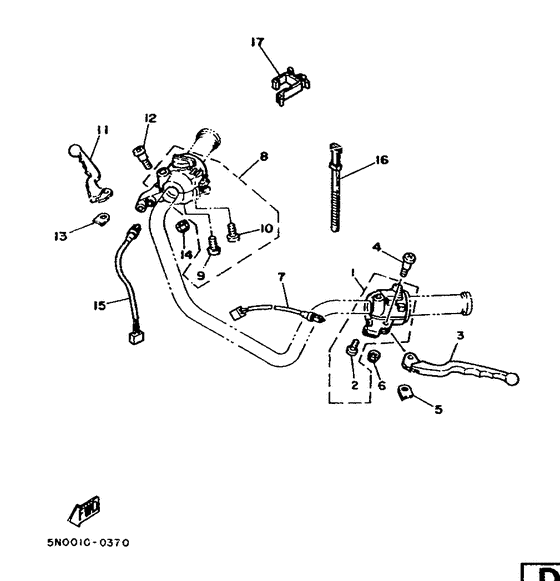

Handle switch & lever Diagram Yamaha SR125
- Year
- 1989
- Colour
- Empress Maroon (EMM; 0097)
- Model code
- 3MW2
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-W8291-00-00
Lever Holder Asy L
|
5H0-W8291-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3MW-82910-00-00
Lever Holder Assy (Left)
|
3MW-82910-00-00 |
— | ||
|
02
|
02
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
02
|
02
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
02
|
02
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
03
|
03
4G3-83912-00-00 Lever L |
4G3-83912-00-00 |
from US $26.21 |
||
|
04
|
04
4G3-83915-00-00 Screw, Spec''l Shape |
4G3-83915-00-00 |
from US $2.69 |
||
| replacement | |||||
|
04
|
04
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
05
|
05
3M5-83929-00-00
Plate, Spring
|
3M5-83929-00-00 |
— | ||
|
06
|
06
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
06
|
06
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
07
|
07
3Y6-82917-00-00 Front Stop Switch Assy |
3Y6-82917-00-00 |
US $23.80 |
||
|
08
|
08
5N0-W8292-00-00
Lever Holder Assy (Right)
|
5N0-W8292-00-00 |
— | ||
| replacement | |||||
|
08
|
08
3MW-82920-00-00
Lever Holder Assy (Right)
|
3MW-82920-00-00 |
— | ||
|
09
|
09
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
09
|
09
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
09
|
09
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
10
|
10
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
10
|
10
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
11
|
11
4G3-83922-00-00 Lever R |
4G3-83922-00-00 |
from US $14.36 |
||
|
12
|
12
4G3-83915-00-00 Screw, Spec''l Shape |
4G3-83915-00-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
13
|
13
3M5-83929-00-00
Plate, Spring
|
3M5-83929-00-00 |
— | ||
|
14
|
14
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
14
|
14
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
15
|
15
5H0-83980-00-00 Front Stop Switch As |
5H0-83980-00-00 |
from US $18.95 |
||
| replacements | |||||
|
15
|
15
5H0-83980-09-00 Front Stop Switch Assy |
5H0-83980-09-00 |
from US $28.02 |
||
|
15
|
15
3Y6-82917-00-00 Front Stop Switch Assy |
3Y6-82917-00-00 |
US $23.80 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.52 |
||
