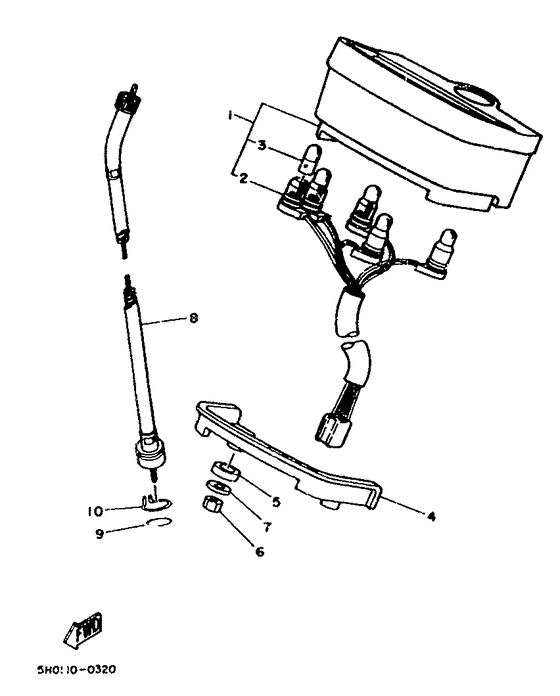

Meter Diagram Yamaha SR125
- Year
- 1989
- Colour
- Empress Maroon (EMM; 0097)
- Model code
- 3MW2
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5U0-83510-F0-33
Speedometer Assy
Ur yamaha black |
5U0-83510-F0-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur yamaha black |
999-99999-99-00 |
— | ||
|
01
|
01
5U0-83510-F0-97
Speedometer Assy
Ur empress maroon |
5U0-83510-F0-97 |
— | ||
|
01
|
01
5U0-83510-F0-P0
Speedometer Assy
Ur dark reddish gray metallic |
5U0-83510-F0-P0 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur dark reddish gray metallic |
999-99999-99-00 |
— | ||
|
02
|
02
5H0-83536-00-00
Socket, Meter
|
5H0-83536-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3MW-83536-10-00
Socket, Meter
|
3MW-83536-10-00 |
— | ||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
04
|
04
5H0-83541-00-00
Damper
|
5H0-83541-00-00 |
— | ||
|
05
|
05
5H0-83592-00-00
Damper
|
5H0-83592-00-00 |
— | ||
|
06
|
06
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
07
|
07
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
08
|
08
2W8-83550-00-00
Speedometer Cable Assy
|
2W8-83550-00-00 |
— | ||
|
09
|
09
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
09
|
09
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
10
|
10
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
