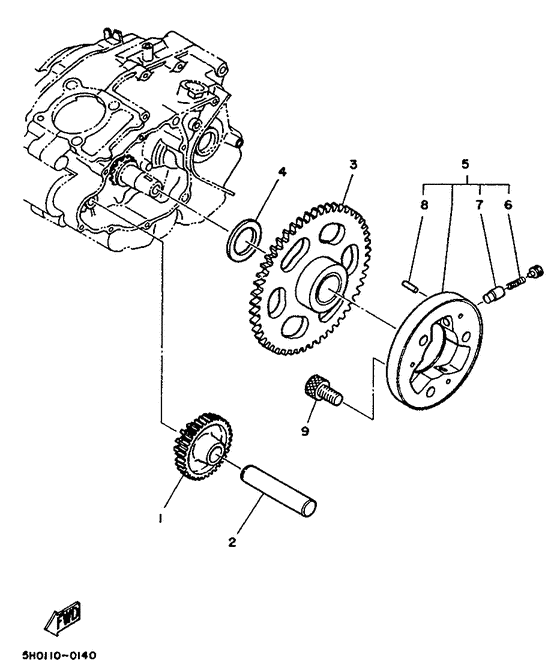

Starter Diagram Yamaha SR125
- Year
- 1989
- Colour
- Empress Maroon (EMM; 0097)
- Model code
- 3MW2
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-15512-00-00
Gear, Idler 1
|
5H0-15512-00-00 |
— | ||
|
02
|
02
5H0-15521-00-00 Shaft 1 |
5H0-15521-00-00 |
from US $10.63 |
||
|
03
|
03
5H0-15517-00-00 Gear, Idler 2 (56T) |
5H0-15517-00-00 |
from US $72.90 |
||
|
04
|
04
4A0-17216-00-10 Washer, Gear Hold 1 |
4A0-17216-00-10 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
90201-256K6-00 Washer, Plate (0.9T) |
90201-256K6-00 |
from US $1.70 |
||
|
05
|
05
4H7-15580-10-00 Starter Clutch Outer Assy |
4H7-15580-10-00 |
from US $153.36 |
||
|
06
|
06
90501-04596-00 Spring, Compression |
90501-04596-00 |
from US $1.84 |
||
|
07
|
07
341-15583-05-00 Cap, Starter Clutch Spring |
341-15583-05-00 |
from US $11.33 |
||
| replacement | |||||
|
07
|
07
1J7-15583-01-00 Cap, Starter Clutch Spring |
1J7-15583-01-00 |
from US $11.33 |
||
|
08
|
08
93615-12088-00 Pin, Dowel |
93615-12088-00 |
from US $6.94 |
||
|
09
|
09
91316-08016-00 Bolt, Socket Head |
91316-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
