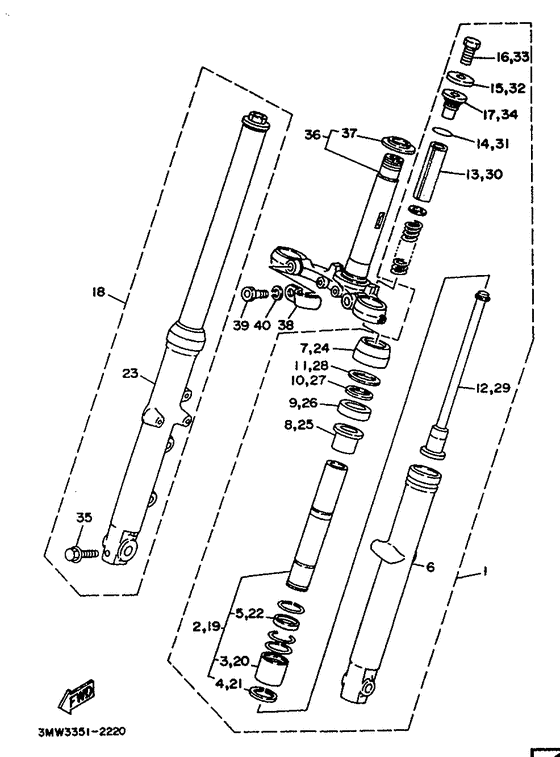

Front fork Diagram Yamaha SR125
- Year
- 1992
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW3
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3MW-23102-00-P0
Front Fork Assy (L.h)
Gray metllic 1 |
3MW-23102-00-P0 |
— | ||
|
02
|
02
3MW-23110-00-00
Inner Tube Comp.1
|
3MW-23110-00-00 |
— | ||
|
03
|
03
5HO-23189-00-00
Free-Piston, Front Fork
|
5HO-23189-00-00 |
— | ||
|
04
|
04
93440-27091-00
Circlip, Outer
|
93440-27091-00 |
— | ||
|
05
|
05
5HO-23113-00-00
Collar
|
5HO-23113-00-00 |
— | ||
|
06
|
06
3MW-23126-00-P0
Tube, Outer (L.h)
Gray metallic 1 |
3MW-23126-00-P0 |
— | ||
|
07
|
07
5HO-23144-00-00
Seal, Dust
|
5HO-23144-00-00 |
— | ||
|
08
|
08
5HO-23125-00-00
Metal, Slide 1
|
5HO-23125-00-00 |
— | ||
|
09
|
09
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
09
|
09
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
10
|
10
5HO-23146-00-00
Washer, Oil Seal
|
5HO-23146-00-00 |
— | ||
|
11
|
11
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
12
|
12
5HO-23170-00-00
Cylinder Comp., Front Fork
|
5HO-23170-00-00 |
— | ||
|
13
|
13
5HO-23118-00-00
Spacer
|
5HO-23118-00-00 |
— | ||
|
14
|
14
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
14
|
14
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
15
|
15
90201-103E6-00
Washer, Plate
|
90201-103E6-00 |
— | ||
|
16
|
16
90101-10513-00
Inactive Part Number
|
90101-10513-00 |
— | ||
| replacement | |||||
|
16
|
16
901-01106-70-00
Bolt(2Jn)
|
901-01106-70-00 |
— | ||
|
17
|
17
3MW-23111-00-00
Bolt, Cap
|
3MW-23111-00-00 |
— | ||
|
18
|
18
3MW-23103-00-P0
Front Fork Assy (R.h)
Gray metllic |
3MW-23103-00-P0 |
— | ||
|
19
|
19
3MW-23110-00-00
Inner Tube Comp.1
|
3MW-23110-00-00 |
— | ||
|
20
|
20
5HO-23189-00-00
Free-Piston, Front Fork
|
5HO-23189-00-00 |
— | ||
|
21
|
21
93440-27091-00
Circlip, Outer
|
93440-27091-00 |
— | ||
|
22
|
22
5HO-23113-00-00
Collar
|
5HO-23113-00-00 |
— | ||
|
23
|
23
3MW-23136-00-P0
Tube, Outer 2
Gray metallic 1 |
3MW-23136-00-P0 |
— | ||
|
24
|
24
5HO-23144-00-00
Seal, Dust
|
5HO-23144-00-00 |
— | ||
|
25
|
25
5HO-23125-00-00
Metal, Slide 1
|
5HO-23125-00-00 |
— | ||
|
26
|
26
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
26
|
26
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
27
|
27
5HO-23146-00-00
Washer, Oil Seal
|
5HO-23146-00-00 |
— | ||
|
28
|
28
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
29
|
29
5HO-23170-00-00
Cylinder Comp., Front Fork
|
5HO-23170-00-00 |
— | ||
|
30
|
30
5HO-23118-00-00
Spacer
|
5HO-23118-00-00 |
— | ||
|
31
|
31
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
31
|
31
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
32
|
32
90201-103E6-00
Washer, Plate
|
90201-103E6-00 |
— | ||
|
33
|
33
90101-10513-00
Inactive Part Number
|
90101-10513-00 |
— | ||
| replacement | |||||
|
33
|
33
901-01106-70-00
Bolt(2Jn)
|
901-01106-70-00 |
— | ||
|
34
|
34
3MW-23111-00-00
Bolt, Cap
|
3MW-23111-00-00 |
— | ||
|
35
|
35
958-11080-45-00
Bolt, Flange
|
958-11080-45-00 |
— | ||
| replacements | |||||
|
35
|
35
95814-08045-00 Bolt, Flange |
95814-08045-00 |
from US $3.05 |
||
|
35
|
35
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.18 |
||
|
36
|
36
3MW-23340-00-00
Under Bracket Comp
|
3MW-23340-00-00 |
— | ||
| replacement | |||||
|
36
|
36
3MW-23340-10-00
Under Bracket Comp
|
3MW-23340-10-00 |
— | ||
|
37
|
37
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
37
|
37
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
38
|
38
5HO-23318-00-00
Holder, Cable 1
|
5HO-23318-00-00 |
— | ||
|
39
|
39
970-23100-35-00
Bolt,with Washer
|
970-23100-35-00 |
— | ||
| replacement | |||||
|
39
|
39
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
40
|
40
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
40
|
40
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
