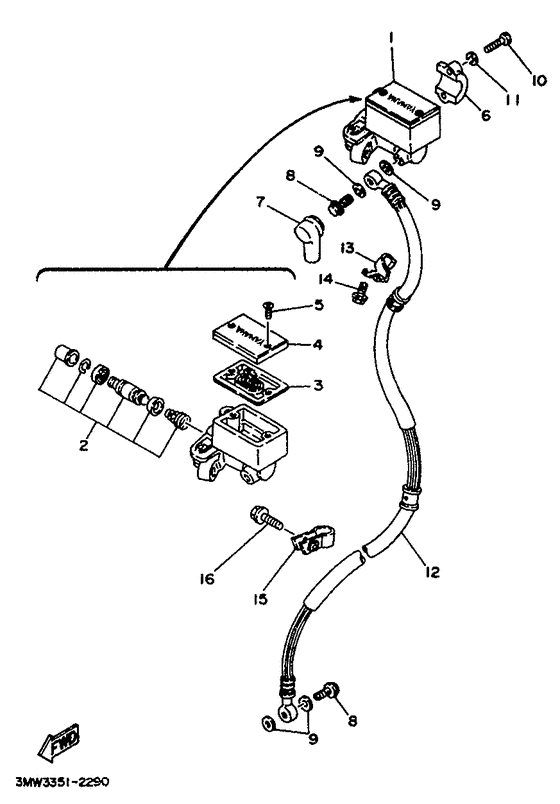

Front master cylinder Diagram Yamaha SR125
- Year
- 1992
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW3
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2RJ-25870-00-00 Master Cylinder Sub Assembly |
2RJ-25870-00-00 |
from US $227.72 |
||
| replacement | |||||
|
01
|
01
3TB-25870-00-00 Master Cylinder Sub Assembly |
3TB-25870-00-00 |
from US $240.40 |
||
|
02
|
02
23L-W0041-00-00 Cylinder Kit, Master |
23L-W0041-00-00 |
from US $60.38 |
||
|
03
|
03
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
04
|
04
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
07
|
07
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
07
|
07
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
08
|
08
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
08
|
08
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
09
|
09
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
09
|
09
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
10
|
10
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
11
|
11
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
3MW-25872-00-00
Hose, Brake 1
|
3MW-25872-00-00 |
— | ||
| replacement | |||||
|
12
|
12
99999-02373-00
Brake Hose Set (3Mw)
|
99999-02373-00 |
— | ||
|
13
|
13
3DM-25886-00-00 Holder, Brake Hose |
3DM-25886-00-00 |
US $14.71 |
||
|
14
|
14
90119-06203-00 Bolt, With Washer |
90119-06203-00 |
from US $1.70 |
||
| replacements | |||||
|
14
|
14
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
14
|
14
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
15
|
15
3MW-25876-01-00
Holder, Brake Hose 2
|
3MW-25876-01-00 |
— | ||
|
16
|
16
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
16
|
16
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
16
|
16
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
