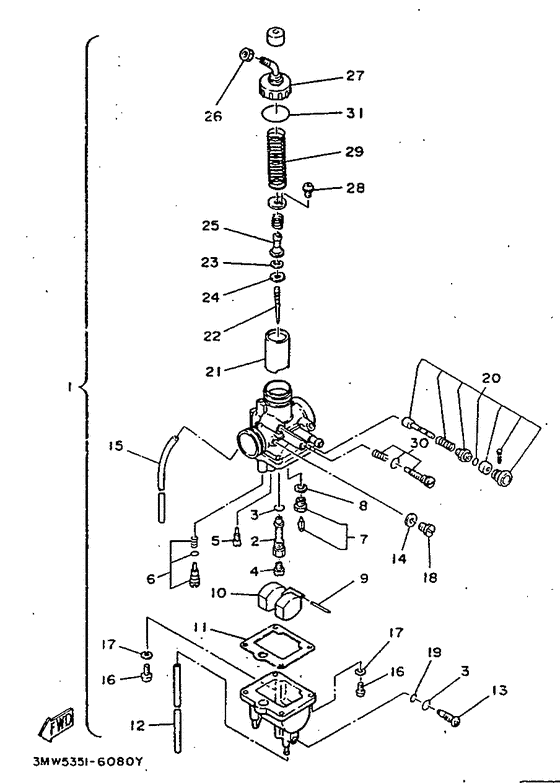

Carburetor Diagram Yamaha SR125
- Year
- 1996
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW5
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5N0-14301-01-00
Carburetor Assy 1
|
5N0-14301-01-00 |
— | ||
| replacement | |||||
|
01
|
01
5N0-14301-02-00
Carburetor Assy
|
5N0-14301-02-00 |
— | ||
|
02
|
02
5N0-14341-00-00
Nozzle, Main
|
5N0-14341-00-00 |
— | ||
|
03
|
03
360-24512-00-00 O-Ring |
360-24512-00-00 |
from US $4.68 |
||
|
04
|
04
288-14343-54-00 Jet, Main (#108) |
288-14343-54-00 |
from US $13.46 |
||
|
05
|
05
367-14342-19-00
Jet, Pilot #38
|
367-14342-19-00 |
— | ||
|
06
|
06
12V-14105-00-00 Pilot Screw Set |
12V-14105-00-00 |
from US $14.45 |
||
|
07
|
07
654-14390-20-00 Needle Valve Assy |
654-14390-20-00 |
US $63.97 |
||
|
08
|
08
367-14195-00-00 Washer, Needle Valve |
367-14195-00-00 |
from US $3.40 |
||
|
09
|
09
626-14386-00-00 Pin, Float |
626-14386-00-00 |
US $4.11 |
||
| replacement | |||||
|
09
|
09
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
10
|
10
367-14385-00-00 Float |
367-14385-00-00 |
from US $69.05 |
||
|
11
|
11
5H0-14384-00-00 Gasket, Float Chamber |
5H0-14384-00-00 |
from US $16.43 |
||
|
12
|
12
36F-14396-00-00
Pipe
|
36F-14396-00-00 |
— | ||
|
13
|
13
5H0-14115-00-00 Plug, Screw |
5H0-14115-00-00 |
US $22.68 |
||
|
14
|
14
5H0-14126-00-00 Gasket |
5H0-14126-00-00 |
from US $6.61 |
||
|
15
|
15
5H0-14348-00-00 Pipe 1 |
5H0-14348-00-00 |
US $15.02 |
||
| replacement | |||||
|
15
|
15
5Y1-14197-00-00 Pipe |
5Y1-14197-00-00 |
from US $9.54 |
||
|
16
|
16
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
16
|
16
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
17
|
17
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
5H0-14991-00-00 Screw |
5H0-14991-00-00 |
from US $3.54 |
||
|
19
|
19
5H0-14398-00-00
Gasket
|
5H0-14398-00-00 |
— | ||
|
20
|
20
5H0-1410A-00-00 Starter Set |
5H0-1410A-00-00 |
from US $55.82 |
||
| replacement | |||||
|
20
|
20
5H0-1410A-01-00 Starter Set |
5H0-1410A-01-00 |
from US $49.91 |
||
|
21
|
21
5H0-14312-23-00
Valve, Throttle 1
|
5H0-14312-23-00 |
— | ||
|
22
|
22
5N0-14336-00-00
Needle
|
5N0-14336-00-00 |
— | ||
|
23
|
23
389-14137-00-00 Clip |
389-14137-00-00 |
from US $4.11 |
||
|
24
|
24
5H0-14918-00-00 Ring |
5H0-14918-00-00 |
US $5.73 |
||
|
25
|
25
5H0-14227-00-00
Washer
|
5H0-14227-00-00 |
— | ||
|
26
|
26
288-14161-00-00
Nut, Cable Adjusting
|
288-14161-00-00 |
— | ||
| replacement | |||||
|
26
|
26
85L-14161-00-00
Nut, Cable Adjusting
|
85L-14161-00-00 |
— | ||
|
27
|
27
5H0-14168-00-00
Cap, Mixing Chamber
|
5H0-14168-00-00 |
— | ||
|
28
|
28
98501-03006-00 Screw, Pan Head |
98501-03006-00 |
from US $2.13 |
||
| replacement | |||||
|
28
|
28
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.35 |
||
|
29
|
29
5H0-14331-00-00 Spring, Thrtl Valve |
5H0-14331-00-00 |
US $28.73 |
||
| replacement | |||||
|
29
|
29
15E-14331-00-00 Spring, Thrtl Valve |
15E-14331-00-00 |
US $28.69 |
||
|
30
|
30
12V-14103-00-00 Throttle Screw Set |
12V-14103-00-00 |
from US $15.89 |
||
| replacement | |||||
|
30
|
30
4WP-14103-00-00
Throttle Screw Set
|
4WP-14103-00-00 |
— | ||
|
31
|
31
1J2-14147-00-00 O-Ring |
1J2-14147-00-00 |
US $6.61 |
||
