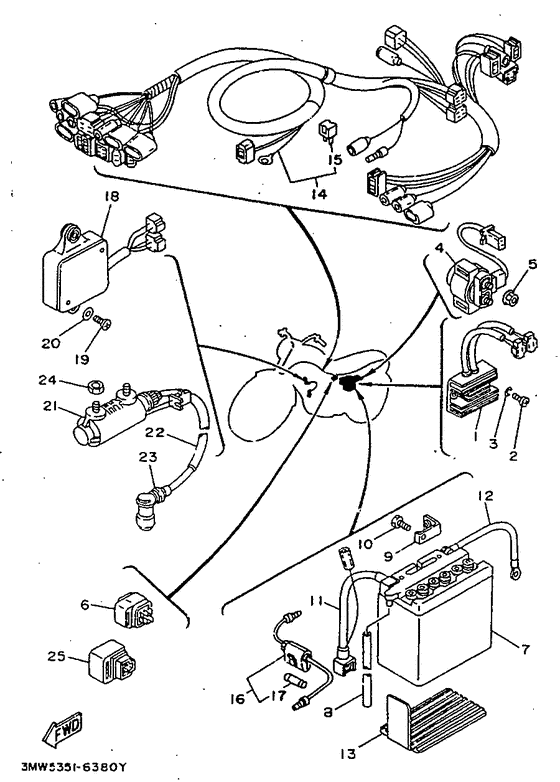

Electrical 1 Diagram Yamaha SR125
- Year
- 1996
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW5
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-81960-A0-00
Rectifier/reg Assembly
|
5H0-81960-A0-00 |
— | ||
|
02
|
02
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
03
|
03
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
04
|
04
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
04
|
04
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
05
|
05
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
06
|
06
12R-81950-01-00 Relay Assy (12R-01) |
12R-81950-01-00 |
from US $57.75 |
||
| replacement | |||||
|
06
|
06
12R-81950-02-00 RELAY ASSY |
12R-81950-02-00 |
from US $53.20 |
||
|
07
|
07
165-82110-61-00
Battery Assy
|
165-82110-61-00 |
— | ||
| replacements | |||||
|
07
|
07
907-9R242-80-00
Battery (Yb7L-B)
|
907-9R242-80-00 |
— | ||
|
07
|
07
907-9EY00-10-00
Battery (12N7-3B, Yuasa)
|
907-9EY00-10-00 |
— | ||
|
08
|
08
90445-08045-00 Hose (L400) |
90445-08045-00 |
US $10.91 |
||
| replacement | |||||
|
08
|
08
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
09
|
09
5G2-82103-00-00 Terminal 1 |
5G2-82103-00-00 |
US $42.25 |
||
|
10
|
10
90153-06032-00 Screw, Hexagon |
90153-06032-00 |
from US $3.47 |
||
| replacement | |||||
|
10
|
10
90153-06055-00
Screw, Hexagon
|
90153-06055-00 |
— | ||
|
11
|
11
5H0-82115-00-00 Wire, Plus Lead |
5H0-82115-00-00 |
US $79.74 |
||
|
12
|
12
5H0-82116-00-00 Wire, Minus Lead |
5H0-82116-00-00 |
US $14.99 |
||
|
13
|
13
5H0-82122-00-00 Seat, Battery |
5H0-82122-00-00 |
from US $17.63 |
||
|
14
|
14
3MW-82590-10-00
Wire Harness Assy
|
3MW-82590-10-00 |
— | ||
|
15
|
15
3WP-81980-00-00 Diode Assy |
3WP-81980-00-00 |
from US $16.15 |
||
|
16
|
16
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
17
|
17
148-82151-00-00 Fuse (12V-20A) |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
17
|
17
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
18
|
18
5H0-82305-M0-00 Ignitor Unit Assembly 1 |
5H0-82305-M0-00 |
US $722 |
||
|
19
|
19
98907-06020-00 Screw, Bind |
98907-06020-00 |
from US $1.33 |
||
|
20
|
20
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
20
|
20
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
21
|
21
3Y6-82310-60-00
Ignition Coil Assy
|
3Y6-82310-60-00 |
— | ||
| replacement | |||||
|
21
|
21
4GR-81958-00-00
Ignition Coil Assy
|
4GR-81958-00-00 |
— | ||
|
22
|
22
4X7-82341-00-00 Cord, High Tension 1 |
4X7-82341-00-00 |
from US $36.75 |
||
|
23
|
23
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
| replacement | |||||
|
23
|
23
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.76 |
||
|
24
|
24
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
25
|
25
4U8-81950-02-00 Relay Assy (4U8-02)Pour bequille laterale |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
25
|
25
4U8-81950-03-00 Relay AssyPour bequille laterale |
4U8-81950-03-00 |
US $97.13 |
||
