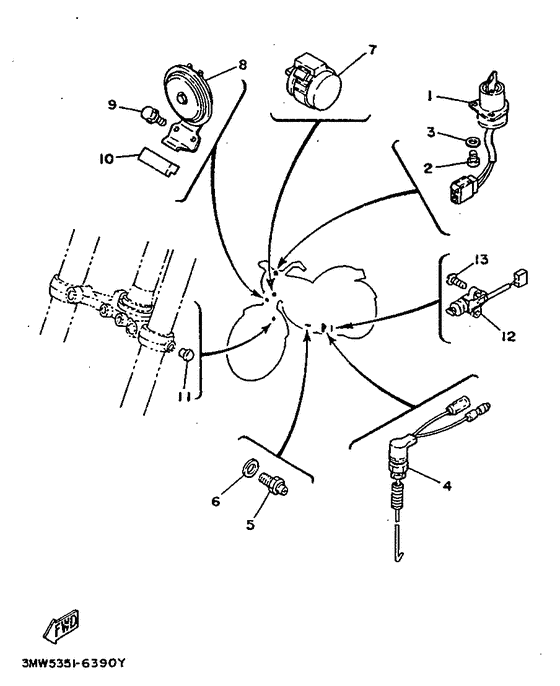

Electrical 2 Diagram Yamaha SR125
- Year
- 1996
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW5
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-82510-01-00 Main Switch Assy |
5H0-82510-01-00 |
US $117.56 |
||
|
02
|
02
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
03
|
03
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
04
|
04
3J0-82530-02-00 Stop Switch Assy |
3J0-82530-02-00 |
from US $27.07 |
||
|
05
|
05
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
05
|
05
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
06
|
06
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
07
|
07
3Y8-83350-21-00 Flasher Relay Assy |
3Y8-83350-21-00 |
US $63.98 |
||
|
08
|
08
10F-83371-00-00
Horn
|
10F-83371-00-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
10
|
10
360-21717-01-00 Damper |
360-21717-01-00 |
from US $6.23 |
||
|
11
|
11
90338-04010-00 Plug, Spec''l Shape |
90338-04010-00 |
US $3.40 |
||
|
12
|
12
33E-82566-00-00 Switch, Side Stand |
33E-82566-00-00 |
from US $118.82 |
||
|
13
|
13
90152-05020-00 Screw, Flat Head |
90152-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
