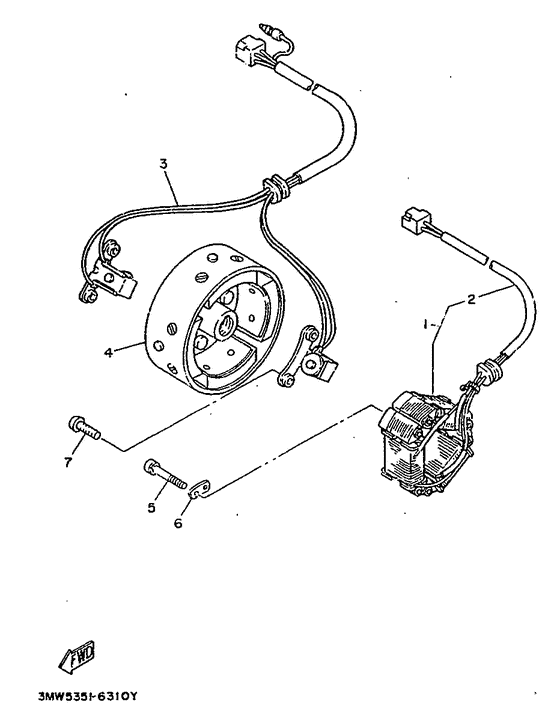

Generator Diagram Yamaha SR125
- Year
- 1996
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW5
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-81410-M0-00
Stator Assy
|
5H0-81410-M0-00 |
— | ||
|
02
|
02
5H0-8131X-M0-00
Cord Assembly
|
5H0-8131X-M0-00 |
— | ||
|
03
|
03
5H0-85580-M0-00
Coil, Pulser
|
5H0-85580-M0-00 |
— | ||
|
04
|
04
5H0-81350-M0-00
Rotor Assembly
|
5H0-81350-M0-00 |
— | ||
|
05
|
05
90159-04041-00
Screw, With Washer
|
90159-04041-00 |
— | ||
|
06
|
06
5H0-81539-M0-00
Coil, Plate
|
5H0-81539-M0-00 |
— | ||
|
07
|
07
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
