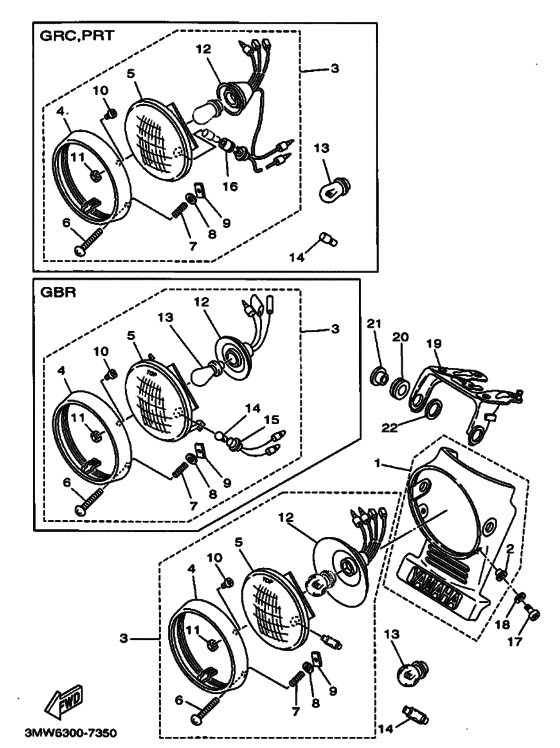

Headlight Diagram Yamaha SR125
- Year
- 1997
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 3MW6
- Sales region
- Europe (020)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-84330-00-JY
Body Assy
UR^MYM |
5H0-84330-00-JY |
— | ||
|
1
|
1
5H0-84330-00-TK Body AssyUR^CMG |
5H0-84330-00-TK |
US $113.16 |
||
|
2
|
2
1L9-84327-00-00 Washer, Special |
1L9-84327-00-00 |
US $4.26 |
||
| replacement | |||||
|
2
|
2
1L9-84327-60-00 Spacer |
1L9-84327-60-00 |
US $4.26 |
||
|
3
|
3
10F-84303-20-00
Headlight Unit Assy
UR |
10F-84303-20-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
3
|
3
5N0-84310-00-00
Headlight Unit Assy
UR FOR GBR |
5N0-84310-00-00 |
— | ||
|
3
|
3
10G-84303-40-00
Headlight Unit Assy
UR FOR GRC,PRT |
10G-84303-40-00 |
— | ||
|
4
|
4
5H0-84315-00-00 Rim, Headlight |
5H0-84315-00-00 |
from US $45.90 |
||
|
5
|
5
10F-84320-20-00
Lens Assy
UR |
10F-84320-20-00 |
— | ||
|
5
|
5
5N0-84320-00-00
Lens Assy
UR FOR GBR |
5N0-84320-00-00 |
— | ||
|
5
|
5
10G-84320-40-00
Lens Assy
UR FOR GRC,PRT |
10G-84320-40-00 |
— | ||
|
6
|
6
1L9-84331-60-00 Screw, Rim Adjusting |
1L9-84331-60-00 |
from US $2.70 |
||
| replacement | |||||
|
6
|
6
4KG-84331-00-00 Screw, Rim Adjusting |
4KG-84331-00-00 |
from US $3.83 |
||
|
7
|
7
1L9-84332-60-00 Spring, Screw |
1L9-84332-60-00 |
US $5.94 |
||
| replacement | |||||
|
7
|
7
3AA-84332-00-00 Spring, Screw |
3AA-84332-00-00 |
US $5.71 |
||
|
8
|
8
1L9-84327-60-00 Spacer |
1L9-84327-60-00 |
US $4.26 |
||
|
9
|
9
1L9-84334-60-00 Nut |
1L9-84334-60-00 |
from US $0.74 |
||
| replacement | |||||
|
9
|
9
5PX-84334-00-00 Nut, Adjusting |
5PX-84334-00-00 |
from US $1.70 |
||
|
10
|
10
98502-05012-00 Screw, Pan Head |
98502-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
10
|
10
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
11
|
11
5H0-84326-00-00
Nut
|
5H0-84326-00-00 |
— | ||
| replacement | |||||
|
11
|
11
25G-84326-H0-00
Nut
|
25G-84326-H0-00 |
— | ||
|
12
|
12
10F-84340-20-00
Socket Cord Assy 1
UR |
10F-84340-20-00 |
— | ||
|
12
|
12
5N0-84350-00-00
Socket Cord Assy 2
UR FOR GBR |
5N0-84350-00-00 |
— | ||
| replacement | |||||
|
12
|
12
5N0-84112-00-00
Socket
UR FOR GBR |
5N0-84112-00-00 |
— | ||
|
12
|
12
10G-84340-40-00
Socket Cord Assy 1
UR FOR GRC,PRT |
10G-84340-40-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
UR FOR GRC,PRT |
999-99999-99-00 |
— | ||
|
13
|
13
851-84314-00-00 Bulb (12V-35/35W)UR FOR GBR |
851-84314-00-00 |
US $4.73 |
||
|
14
|
14
123-83516-21-00 Bulb (12V3.4W)UR FOR GBR |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
14
|
14
123-83516-21-XX Bulb (12V-3.4W)UR FOR GBR |
123-83516-21-XX |
US $63.70 |
||
|
15
|
15
5N0-84340-00-00
Socket Cord Assy 1
FOR GBR |
5N0-84340-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
FOR GBR |
999-99999-99-00 |
— | ||
|
16
|
16
10G-84354-00-00
Grommet
FOR GRC,PRT |
10G-84354-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
FOR GRC,PRT |
999-99999-99-00 |
— | ||
|
17
|
17
5H0-84337-00-00 Bolt, Special |
5H0-84337-00-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
18
|
18
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
19
|
19
5H0-84318-00-00
Stay, Headlight 1
|
5H0-84318-00-00 |
— | ||
|
20
|
20
5H0-84336-00-00
Damper, Headlight
|
5H0-84336-00-00 |
— | ||
|
21
|
21
5H0-84338-00-00
Collar, Body Ftng
|
5H0-84338-00-00 |
— | ||
|
22
|
22
90201-12195-00 Washer, Plate |
90201-12195-00 |
from US $4.68 |
||
| replacement | |||||
|
22
|
22
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
