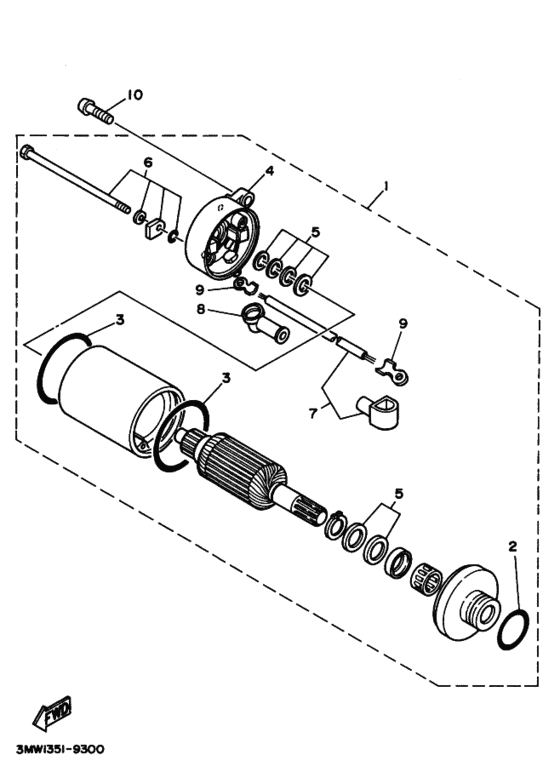

ｽﾀｰﾃｲﾝｸﾞﾓｰﾀ 1 (4DD1,2) Diagram Yamaha SR125
- Year
- 1995
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 4DD2
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-81800-61-00 Starting Motor Asyスターテイングモータアセンブリ; |
5H0-81800-61-00 |
from US $461.89 |
||
| replacement | |||||
|
1
|
1
4WP-81890-00-00 Motor Assyスターテイングモータアセンブリ; |
4WP-81890-00-00 |
from US $461.89 |
||
|
2
|
2
5H0-81847-01-00 O-Ring．Ｏ−リング; |
5H0-81847-01-00 |
US $34.76 |
||
|
3
|
3
5H0-81844-01-00
Gasket
．ガスケツト; |
5H0-81844-01-00 |
— | ||
|
4
|
4
5H0-81820-01-00
Rear Bracket Assy
．リヤブラケツト アセンブリ; |
5H0-81820-01-00 |
— | ||
|
5
|
5
5H0-81809-00-00
Washer Kit
．ワツシヤキツト; |
5H0-81809-00-00 |
— | ||
|
6
|
6
5H0-81826-00-00
Bolt
．ボルト; |
5H0-81826-00-00 |
— | ||
|
7
|
7
5H0-81815-00-00
Wire, Starter
．コード，スタータモータ; |
5H0-81815-00-00 |
— | ||
|
8
|
8
5H0-81871-00-00
Cover Terminal
．キヤツプ; |
5H0-81871-00-00 |
— | ||
|
9
|
9
5H0-81818-00-00 Terminal Set．ターミナルセツト; |
5H0-81818-00-00 |
US $58.43 |
||
|
10
|
10
985-07060-25-00
Screw, Pan Head
スクリユ，パンヘツド; |
985-07060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-06025-00 |
from US $1.42 |
||
