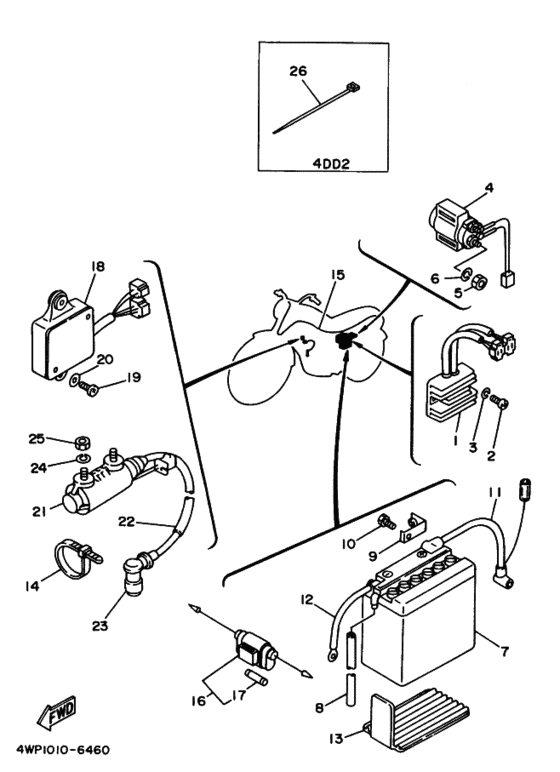

ｴﾚｸﾄﾘｶﾙ 1-1 (4DD1,2) Diagram Yamaha SR125
- Year
- 1995
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 4DD2
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-81960-A0-00
Rectifier/reg Assembly
レクチフアイヤアンドレギユレータアセンブリ; |
5H0-81960-A0-00 |
— | ||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
3
|
3
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
4
|
4
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
スタータリレーアセンブリ; |
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4KD-81940-00-00 Starter Relay Assy (Ms5D-611)スタータリレーアセンブリ; |
4KD-81940-00-00 |
from US $97.54 |
||
|
5
|
5
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
7
|
7
90890-85807-00
Battery Assy(12N7-3B-1)
バツテリー ; １２Ｎ７−３Ｂ−１; ＧＳ |
90890-85807-00 |
— | ||
|
8
|
8
90445-08045-00 Hose (L400)ホース; |
90445-08045-00 |
US $10.91 |
||
| replacement | |||||
|
8
|
8
90445-084J0-00 Pipeホース; |
90445-084J0-00 |
from US $8.76 |
||
|
9
|
9
5G2-82103-00-00 Terminal 1ターミナル １; |
5G2-82103-00-00 |
US $42.25 |
||
|
10
|
10
90153-06032-00 Screw, Hexagon |
90153-06032-00 |
from US $3.47 |
||
| replacement | |||||
|
10
|
10
90153-06055-00
Screw, Hexagon
|
90153-06055-00 |
— | ||
|
11
|
11
5H0-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
5H0-82115-00-00 |
US $79.74 |
||
|
12
|
12
5H0-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
5H0-82116-00-00 |
US $14.99 |
||
|
13
|
13
5H0-82122-00-00 Seat, Batteryシート，バツテリ; |
5H0-82122-00-00 |
from US $17.63 |
||
|
14
|
14
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
14
|
14
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
15
|
15
4DD-82590-20-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
4DD-82590-20-00 |
— | ||
|
16
|
16
2UJ-82150-01-00 Fuse Holder Assyフユーズホルダアセンブリ; |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
16
|
16
2UJ-82150-02-00 Fuse Holder Assyフユーズホルダアセンブリ; |
2UJ-82150-02-00 |
from US $9.89 |
||
|
17
|
17
148-82151-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
17
|
17
1A0-82161-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
1A0-82161-00-00 |
from US $11.96 |
||
|
18
|
18
5H0-82305-M0-00 Ignitor Unit Assembly 1 |
5H0-82305-M0-00 |
US $722 |
||
|
19
|
19
98907-06020-00 Screw, Bindスクリユ，バインド; |
98907-06020-00 |
from US $1.33 |
||
|
20
|
20
90201-06765-00 Washer, Plate (1Hf)ワツシヤ，プレート; |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
20
|
20
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
20
|
20
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
21
|
21
3Y6-82310-60-00
Ignition Coil Assy
|
3Y6-82310-60-00 |
— | ||
| replacement | |||||
|
21
|
21
4GR-81958-00-00
Ignition Coil Assy
|
4GR-81958-00-00 |
— | ||
|
22
|
22
4X7-82341-00-00 Cord, High Tension 1コード，ハイテンシヨン １; |
4X7-82341-00-00 |
from US $36.75 |
||
|
23
|
23
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
23
|
23
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
23
|
23
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
24
|
24
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
25
|
25
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
26
|
26
80L-26397-00-00 Band４ＤＤ２：０３１０７１〜 |
80L-26397-00-00 |
from US $1.40 |
||
