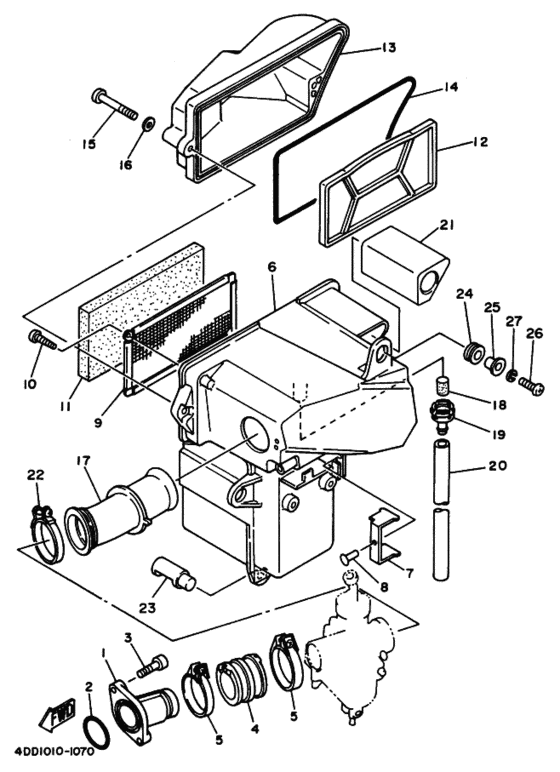

Intake Diagram Yamaha SR125
- Year
- 1996
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 4WP2
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-13586-00-00 Joint, Carburetor 1 |
5H0-13586-00-00 |
from US $25.29 |
||
|
2
|
2
93210-34474-00 O-Ring |
93210-34474-00 |
from US $3.04 |
||
|
3
|
3
91317-06020-00 Boltボルト; |
91317-06020-00 |
from US $1.18 |
||
|
4
|
4
5H0-13596-00-00 Joint, Carburetor 2 |
5H0-13596-00-00 |
from US $50.92 |
||
|
5
|
5
90460-43179-00 Clamp, Hoseクランプ，ホース; |
90460-43179-00 |
from US $7.65 |
||
|
6
|
6
5H0-14411-11-00 Case, Air Cleaner 1ケース，エアクリーナ １; ４ＤＤ２：０３１０７１〜 |
5H0-14411-11-00 |
US $31.88 |
||
|
7
|
7
5H0-2172K-00-00
Bracket 1
|
5H0-2172K-00-00 |
— | ||
|
8
|
8
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
9
|
9
5H0-14472-00-00 Plate, Elementプレート，エレメント; |
5H0-14472-00-00 |
US $47.45 |
||
|
10
|
10
97707-40610-00 Screw, Tappingスクリユ，タツピング; |
97707-40610-00 |
from US $1.66 |
||
|
11
|
11
5H0-14451-00-00 Element, Air Clnrエレメント，エアクリーナ; |
5H0-14451-00-00 |
from US $11.33 |
||
|
12
|
12
5H0-14468-00-00 Plate, Element Ftngプレート，エレメントフイツテイング; |
5H0-14468-00-00 |
US $10.26 |
||
|
13
|
13
5H0-14412-00-00 Cap, Cleaner Case 1キヤツプ，クリーナケース １; |
5H0-14412-00-00 |
US $45.14 |
||
|
14
|
14
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $9.44 |
||
|
15
|
15
98507-05045-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-05045-00 |
from US $1.52 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
5H0-14453-00-00 Joint, Air Clnr 1ジヨイント，エアクリーナ １; |
5H0-14453-00-00 |
US $45.14 |
||
|
18
|
18
5H0-14462-00-00
Seal
シール; |
5H0-14462-00-00 |
— | ||
|
19
|
19
5H0-14419-00-00
Pipe
|
5H0-14419-00-00 |
— | ||
|
20
|
20
91A10-07039-00 Tube, Flexibleチユーブ，フレキシブル; |
91A10-07039-00 |
US $5.81 |
||
| replacement | |||||
|
20
|
20
91A20-07039-00 Tube, Flexible Vinyl (91A-20070チユーブ，フレキシブル; |
91A20-07039-00 |
from US $5.38 |
||
|
21
|
21
4DD-14437-00-00
Duct
|
4DD-14437-00-00 |
— | ||
|
22
|
22
90450-45075-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-45075-00 |
from US $5.80 |
||
| replacement | |||||
|
22
|
22
904-50440-46-00 Hose Clamp Assyホースクランプアセンブリ; |
904-50440-46-00 |
from US $6.40 |
||
|
23
|
23
5H0-21746-00-00
Damper
|
5H0-21746-00-00 |
— | ||
|
24
|
24
90480-10297-00 Grommet |
90480-10297-00 |
from US $1.70 |
||
|
25
|
25
90387-06024-00 Collarカラー; |
90387-06024-00 |
from US $2.72 |
||
|
26
|
26
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
26
|
26
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
27
|
27
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
