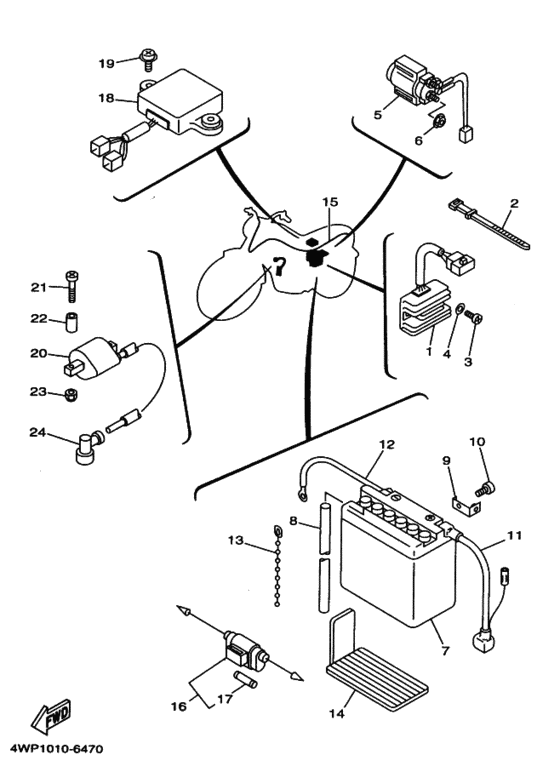

ｴﾚｸﾄﾘｶﾙ 1-2 (4WP1,2,3) Diagram Yamaha SR125
- Year
- 1996
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 4WP2
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4WP-81960-00-00
Rectifier & Regulator Assy
レクチフアイヤアンドレギユレータアセンブリ; |
4WP-81960-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4WP-81960-01-00
Rectifier & Regulator Assy
レクチフアイヤアンドレギユレータアセンブリ; |
4WP-81960-01-00 |
— | ||
|
2
|
2
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
3
|
3
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
4
|
4
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
スタータリレーアセンブリ; |
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4KD-81940-00-00 Starter Relay Assy (Ms5D-611)スタータリレーアセンブリ; |
4KD-81940-00-00 |
from US $97.54 |
||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
7
|
7
90890-85807-00
Battery Assy(12N7-3B-1)
バツテリ ; １２Ｎ７−３Ｂ−１; ＧＳ |
90890-85807-00 |
— | ||
|
8
|
8
90445-08045-00 Hose (L400)ホース; |
90445-08045-00 |
US $10.91 |
||
| replacement | |||||
|
8
|
8
90445-084J0-00 Pipeホース; |
90445-084J0-00 |
from US $8.76 |
||
|
9
|
9
5G2-82103-00-00 Terminal 1ターミナル １; |
5G2-82103-00-00 |
US $42.25 |
||
|
10
|
10
90153-06032-00 Screw, Hexagon |
90153-06032-00 |
from US $3.47 |
||
| replacement | |||||
|
10
|
10
90153-06055-00
Screw, Hexagon
|
90153-06055-00 |
— | ||
|
11
|
11
5H0-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
5H0-82115-00-00 |
US $79.74 |
||
|
12
|
12
5H0-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
5H0-82116-00-00 |
US $14.99 |
||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
5H0-82122-00-00 Seat, Batteryシート，バツテリ; |
5H0-82122-00-00 |
from US $17.63 |
||
|
15
|
15
4WP-82590-10-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
4WP-82590-10-00 |
— | ||
|
16
|
16
2UJ-82150-02-00 Fuse Holder Assyフユーズホルダアセンブリ; |
2UJ-82150-02-00 |
from US $9.89 |
||
|
17
|
17
148-82151-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
148-82151-00-00 |
from US $6.35 |
||
| replacement | |||||
|
17
|
17
1A0-82161-00-00 Fuse (12V-20A)．フユーズ ; ２０Ａ |
1A0-82161-00-00 |
from US $11.96 |
||
|
18
|
18
4WP-85540-00-00
C.d.i. Unit Assy
|
4WP-85540-00-00 |
— | ||
|
19
|
19
90159-06085-00 Screw, With Washer |
90159-06085-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
20
|
20
4JP-82310-00-00 Ignition Coil Assy |
4JP-82310-00-00 |
from US $59.27 |
||
| replacements | |||||
|
20
|
20
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
20
|
20
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
20
|
20
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
21
|
21
98507-06040-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06040-00 |
from US $1.56 |
||
|
22
|
22
90387-06028-00 Collarカラー; |
90387-06028-00 |
from US $2.83 |
||
|
23
|
23
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
24
|
24
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
| replacement | |||||
|
24
|
24
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.76 |
||
