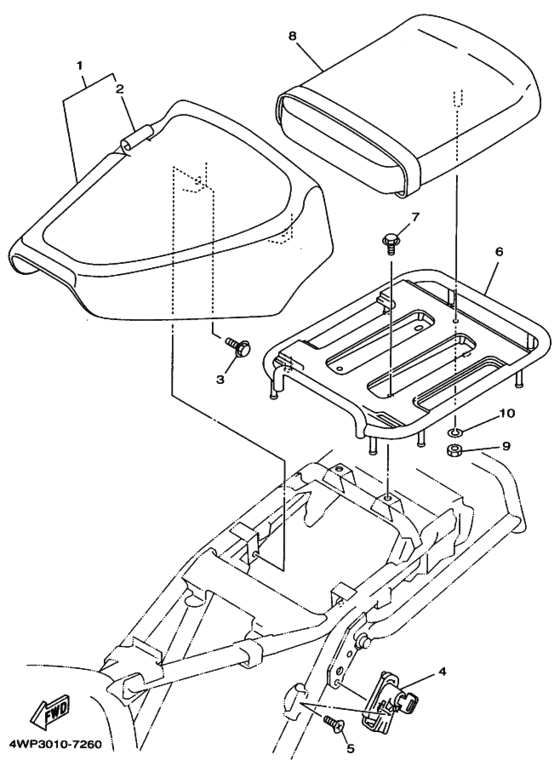

Seat 2 (4WP3) Diagram Yamaha SR125
- Year
- 1997
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 4WP3
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4WP-24710-00-00
Single Seat Assy
シングルシートアセンブリ; |
4WP-24710-00-00 |
— | ||
|
2
|
2
4WP-24731-00-00
Cover, Seat
．カバー，シート; |
4WP-24731-00-00 |
— | ||
|
3
|
3
90119-06060-00 Bolt, With Washerウイズワツシヤ; |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
3
|
3
90119-06226-00 Bolt, With Washerウイズワツシヤ; |
90119-06226-00 |
from US $1.52 |
||
|
4
|
4
5H0-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
5H0-21308-01-00 |
from US $59.13 |
||
|
5
|
5
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
6
|
6
4WP-24810-00-00
Carrier Assy
|
4WP-24810-00-00 |
— | ||
|
7
|
7
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.18 |
||
| replacement | |||||
|
7
|
7
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
8
|
8
298-24750-00-00
Tandem Seat Assy
タンデムシートアセンブリ; |
298-24750-00-00 |
— | ||
|
9
|
9
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
10
|
10
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
