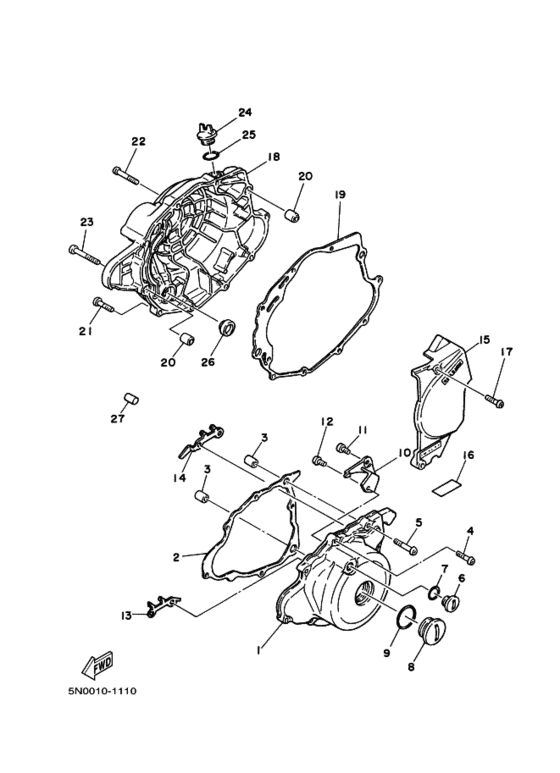

ｸﾗﾝｸｹｰｽｶﾊﾞｰ Diagram Yamaha SR125
- Year
- 1981
- Colour
- New Catalina Blue (NCB; 006J)
- Model code
- 5N0
- Sales region
- Japan (010)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-15411-00-00
Cover, Crankcase L
カバー，クランクケース １; |
5H0-15411-00-00 |
— | ||
|
2
|
2
5H0-15451-00-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
5H0-15451-00-00 |
from US $12.75 |
||
| replacement | |||||
|
2
|
2
4BE-15451-03-00 Gasket, Crankcase Cover 1ガスケツト，クランクケースカバー; |
4BE-15451-03-00 |
from US $12.75 |
||
|
3
|
3
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
5
|
5
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
6
|
6
90340-14068-00 Plug, Straight Screw |
90340-14068-00 |
from US $8.78 |
||
|
7
|
7
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.94 |
||
|
8
|
8
90340-32069-00 Plug, Straight Screw |
90340-32069-00 |
from US $7.36 |
||
|
9
|
9
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.94 |
||
|
10
|
10
90465-06175-00
Clamp
|
90465-06175-00 |
— | ||
|
11
|
11
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
12
|
12
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
12
|
12
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
12
|
12
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
12
|
12
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
12
|
12
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
13
|
13
90462-16096-00 Clamp (5H0) |
90462-16096-00 |
US $1.90 |
||
|
14
|
14
90462-16097-00
Clamp
|
90462-16097-00 |
— | ||
|
15
|
15
5N0-15420-00-00
Crankcase Cover Assy 2
クランッケースカバーアセンブリ ２; |
5N0-15420-00-00 |
— | ||
|
16
|
16
5H0-15377-00-00
Guide, Inlet
|
5H0-15377-00-00 |
— | ||
|
17
|
17
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
18
|
18
5H0-15431-00-00
Cover, Crankcase 3
カバー，クランクケース ３; |
5H0-15431-00-00 |
— | ||
|
19
|
19
5H0-15462-00-00 Gasket, Crankcase Cover 3ガスケツト，クランクケースカバー ３; |
5H0-15462-00-00 |
from US $21.68 |
||
| replacement | |||||
|
19
|
19
4BD-15462-00-00 Gasket, Crankcase Cover 3ガスケツト，クランクケースカバー ３; |
4BD-15462-00-00 |
from US $23.45 |
||
|
20
|
20
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
21
|
21
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
925-01060-40-00
Screw, Pan Head
|
925-01060-40-00 |
— | ||
| replacement | |||||
|
22
|
22
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
23
|
23
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
24
|
24
3Y1-15363-00-00
Plug, Oil
|
3Y1-15363-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
25
|
25
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
26
|
26
3Y1-15361-00-00 Gauge, Levelゲージ，レベル; |
3Y1-15361-00-00 |
from US $9.10 |
||
|
27
|
27
5H0-11127-00-00
Absorber 3
アブソーバ ３; |
5H0-11127-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
アブソーバ ３; |
999-99999-99-00 |
— | ||
