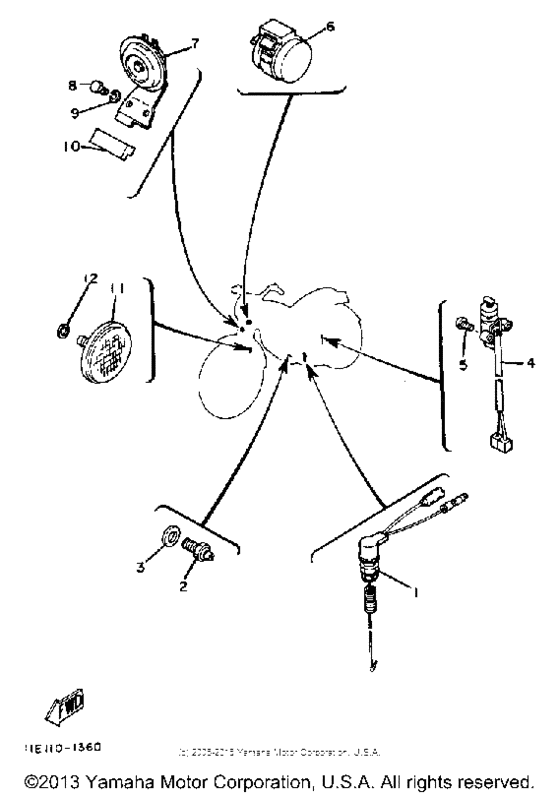

Electrical (2) Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-82530-01-00 Stop Switch Asy |
3J0-82530-01-00 |
from US $42.97 |
||
| replacement | |||||
|
1
|
1
3J0-82530-02-00 Stop Switch Assy |
3J0-82530-02-00 |
from US $27.07 |
||
|
2
|
2
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
2
|
2
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
2
|
2
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $24.58 |
||
|
3
|
3
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
4
|
4
5H0-82566-00-00 Switch, Side Stand |
5H0-82566-00-00 |
from US $107.77 |
||
| replacement | |||||
|
4
|
4
33E-82566-00-00 Switch, Side Stand |
33E-82566-00-00 |
from US $118.82 |
||
|
5
|
5
98706-05020-00 Screw, Flat Head |
98706-05020-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
98707-05020-00 Screw, Flat Head |
98707-05020-00 |
from US $1.62 |
||
|
6
|
6
3Y6-83350-70-00 Flasher Relay Assy |
3Y6-83350-70-00 |
from US $45.75 |
||
| replacement | |||||
|
6
|
6
3Y6-83350-71-00 HOUSING, SENSOR REAR |
3Y6-83350-71-00 |
from US $44.89 |
||
|
7
|
7
5H0-83371-00-00 Horn |
5H0-83371-00-00 |
US $64.33 |
||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
360-21717-01-00 Damper |
360-21717-01-00 |
from US $6.23 |
||
|
11
|
11
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
12
|
12
90430-06012-00 Washer, Plate |
90430-06012-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
