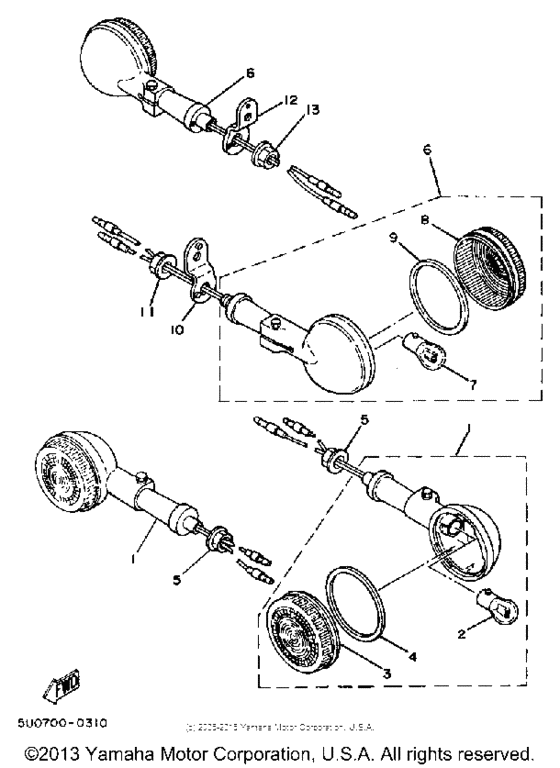

Flasher light Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-83310-70-00
Frt Flshr Lite Assembly
|
5H0-83310-70-00 |
— | ||
|
2
|
2
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
3
|
3
3Y6-83312-00-00 Lens, Flasher |
3Y6-83312-00-00 |
from US $10.48 |
||
|
4
|
4
3Y6-83313-00-00 Gasket, Flasher Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
5
|
5
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
5
|
5
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
5
|
5
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
6
|
6
3Y6-83330-70-00 R Flshr Lite Assembly |
3Y6-83330-70-00 |
from US $30.30 |
||
|
7
|
7
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
8
|
8
3Y6-83312-00-00 Lens, Flasher |
3Y6-83312-00-00 |
from US $10.48 |
||
|
9
|
9
3Y6-83313-00-00 Gasket, Flasher Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
10
|
10
5H0-83318-00-00 Stay, Flasher 1 |
5H0-83318-00-00 |
US $18.59 |
||
|
11
|
11
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
11
|
11
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
11
|
11
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
12
|
12
5H0-83328-00-00 Stay, Flasher 2 |
5H0-83328-00-00 |
US $21.37 |
||
|
13
|
13
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
13
|
13
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
13
|
13
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
